Patriot W-DC12-12C4-S 13.5V DC 8A Power Supply with 4A Battery Charger – 16 Outputs

Patriot W-DC12-12C4-S 13.5V DC 8A Power Supply with 4A Battery Charger – 16 Outputs

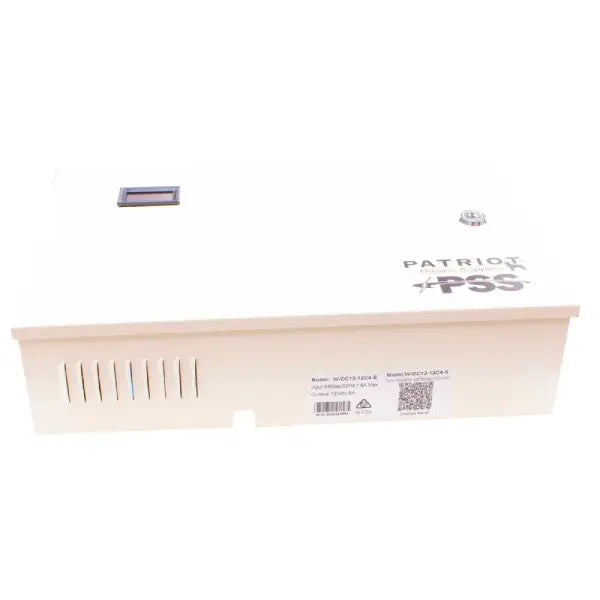

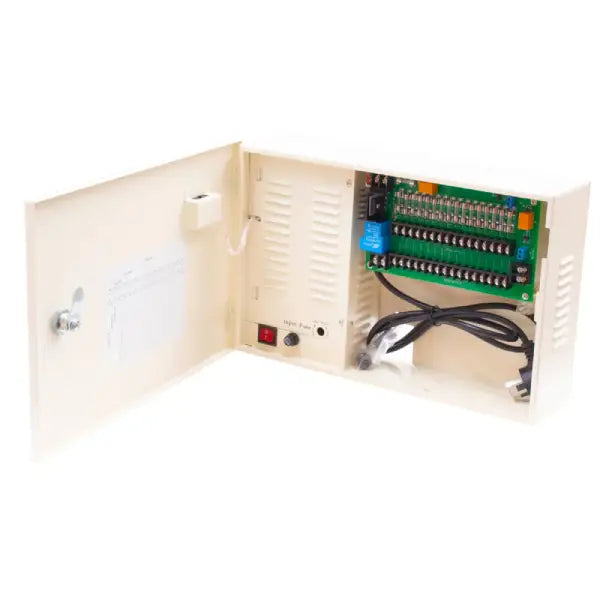

The Patriot W-DC12-12C4-S Wall Mount Power Supply combines an 8A equipment output with a dedicated 4A battery charger for security systems requiring higher-capacity backup batteries. It provides 16 individually protected outputs inside a lockable wall-mount cabinet for compatible CCTV, alarm and access-control equipment. Browse our complete range of battery and power supply products for additional system components.

Key Features

• 13.5V DC regulated equipment output
• 8A output capacity for connected equipment
• Dedicated 4A battery charger
• 16 individually protected outputs
• 1.85A protection on each output
• LED indication for connected outputs
• Voltage display for system monitoring
• Supports higher-capacity backup-battery arrangements
• Mains-fail and low-battery monitoring contacts
• Short-circuit and overload protection
• Lockable wall-mount cabinet
• Free-air convection cooling

Dedicated 4A Battery Charger

The W-DC12-12C4-S differs from a standard 8A wall-mount supply by including a dedicated 4A battery charger. This allows the connected security equipment and the backup-battery charging circuit to be managed separately within the power system.

The power supply provides up to 8A for connected equipment. The additional 4A charger capacity is intended for a compatible backup-battery arrangement and should not be counted as extra equipment output capacity.

Centralised Power Distribution

The 16 individually protected outputs allow multiple compatible security devices to be powered from one central cabinet. Separate output protection helps isolate branch faults, while the LED indicators make it easier to identify affected circuits during servicing.

The combined load of all connected equipment must remain within the available 8A equipment output. Start-up current, cable voltage drop and the requirements of each connected device should be checked during system design.

Backup-Battery Planning

This model is intended for installations requiring a larger or more capable backup-battery arrangement. The required battery capacity will depend on the connected load, desired standby time and applicable installation requirements.

Please note: Backup batteries and any separate battery enclosure or rack module are not included with this power supply unless specified as part of a separate package.

Technical Specifications

• Model: W-DC12-12C4-S
• Equipment output voltage: 13.5V DC
• Equipment output capacity: 8A
• Battery charger: 4A
• Power outputs: 16 individually protected outputs
• Output protection: 1.85A per output
• Output indication: Individual LED indicators
• Protection: Short-circuit and overload protection
• Cooling: Free-air convection
• Cabinet dimensions: 235 × 362 × 92mm

What Is Included?

• 1 × Patriot W-DC12-12C4-S wall-mount power supply
• Integrated 4A battery charger
• Lockable wall-mount cabinet
• Integrated 16-output protected distribution board

Please note: Backup batteries, external battery enclosure, connected security equipment, cabling, mounting hardware and installation are not included unless specified separately.

Professional Installation Required

This power supply includes mains-voltage and battery connections and should be installed by a suitably qualified technician. Confirm the connected equipment load, battery-bank configuration, cable sizes, voltage drop and required standby period before installation.

CTC Communications can assist with equipment selection and professional CCTV system installation across Sydney, ensuring the power supply, battery capacity and connected equipment are correctly specified for the site.

Order the Patriot W-DC12-12C4-S Power Supply

Order the Patriot W-DC12-12C4-S from CTC Communications for Australia-wide delivery. For help selecting the correct power supply and backup-battery arrangement, contact our experienced team.
