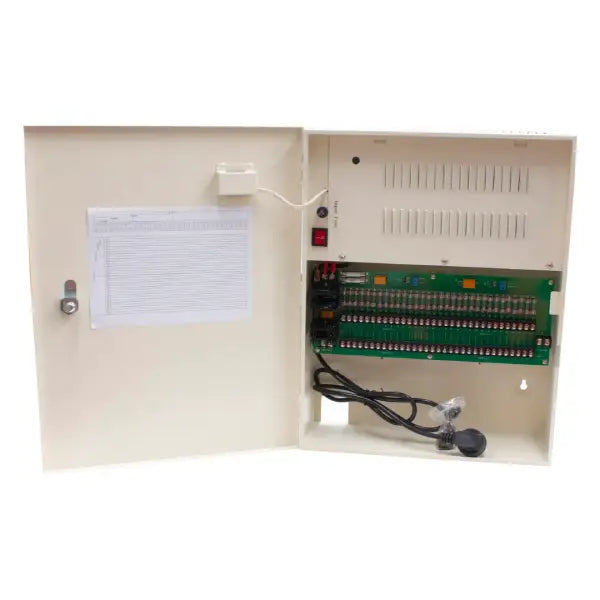

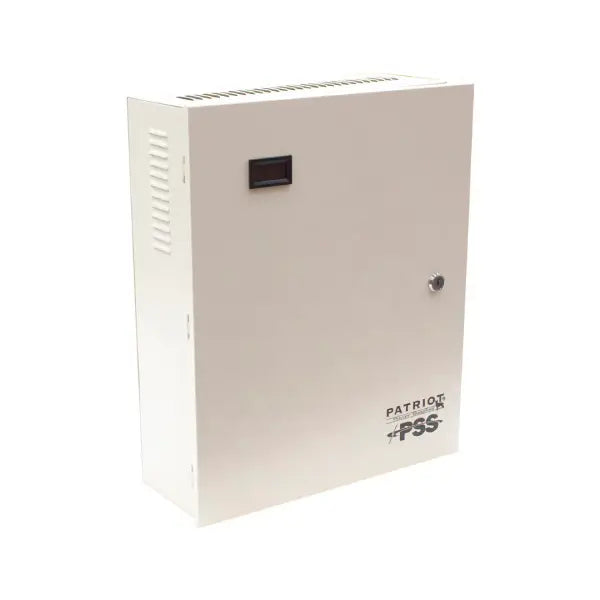

Patriot W-DC12-24A 12V DC 24A Wall Mount Power Supply – 32 Fused Outputs
The Patriot W-DC12-24A Wall Mount Power Supply provides high-capacity centralised power distribution for larger CCTV, alarm and access-control installations. Its lockable metal cabinet contains 32 individually protected outputs, LED output indicators and a digital voltage display for convenient system monitoring. Browse our complete range of battery and power supply products for additional system components.
Best For
Large multi-camera CCTV systems, commercial access control, alarm equipment and other high-demand 12V DC security installations requiring centralised power distribution.
Key Features
- High-capacity 12V DC power supply
- 24A nominal output capacity
- User-adjustable output from approximately 11.8–13.8V DC
- 32 individually protected outputs
- 1.85A protection on each output
- LED indicator for every output
- Digital voltage display
- Supports optional battery-backup configurations
- Mains-fail monitoring contacts
- Short-circuit and overload protection
- Lockable wall-mount cabinet
- Free-air convection cooling
Power Larger Security Installations
The W-DC12-24A distributes power across 32 separately protected outputs, allowing a large number of compatible security devices to be powered from one central cabinet. Individual output protection helps isolate branch faults, while LED indicators allow technicians to identify affected circuits more efficiently.
The combined load of all connected equipment must remain within the power supply’s total output capacity. Camera start-up current, infrared illumination, access-control locking devices, cable voltage drop and other peak-load requirements should be included when calculating the system load.
Adjustable Output Voltage
The output can be adjusted between approximately 11.8V and 13.8V DC. This allows a suitably qualified technician to configure the supply for the connected equipment and compensate for appropriate cable voltage drop where required.
Output voltage must remain within the permitted input range of every connected device. Increasing the voltage without confirming equipment compatibility may damage cameras, controllers or other security components.
Individually Protected Outputs
Each of the 32 outputs includes 1.85A protection to help isolate individual connected circuits during an overload or fault. The 1.85A figure applies to each output’s protection and does not mean all outputs can simultaneously supply that current.
The combined connected load must remain within the power supply’s total rated capacity.
Optional Battery-Backup Support
The W-DC12-24A can support an optional compatible battery-backup arrangement when correctly configured. Battery capacity and charging requirements must be matched to the connected load and required standby period.
Please note: Backup batteries, charging equipment and any separate battery cabinet are not included unless specified as part of a separate package.
Technical Specifications
-
Model: W-DC12-24A
-
Nominal output voltage: 12V DC
-
Adjustable output range: Approximately 11.8–13.8V DC
-
Nominal output capacity: 24A
-
Power outputs: 32 individually protected outputs
-
Output protection: 1.85A per output
-
Output indication: Individual LED indicators
-
Voltage display: Digital display
-
Protection: Short-circuit and overload protection
-
Cooling: Free-air convection
-
Cabinet dimensions: 435 × 345 × 120mm
What Is Included?
- 1 × Patriot W-DC12-24A power supply
- Lockable wall-mount cabinet
- Integrated 32-output protected distribution board
Please note: Backup batteries, battery-charging equipment, connected security devices, external cabling, mounting hardware and installation are not included unless specified separately.
Professional Installation Required
This power supply includes mains-voltage connections and should be installed by a suitably qualified technician. Confirm the total equipment load, start-up current, cable sizes, voltage drop, output settings and any battery-backup requirements before installation.
