Patriot W-DC12-4A 12V DC 4A Wall Mount Power Supply – 9 Fused Outputs

Patriot W-DC12-4A 12V DC 4A Wall Mount Power Supply – 9 Fused Outputs

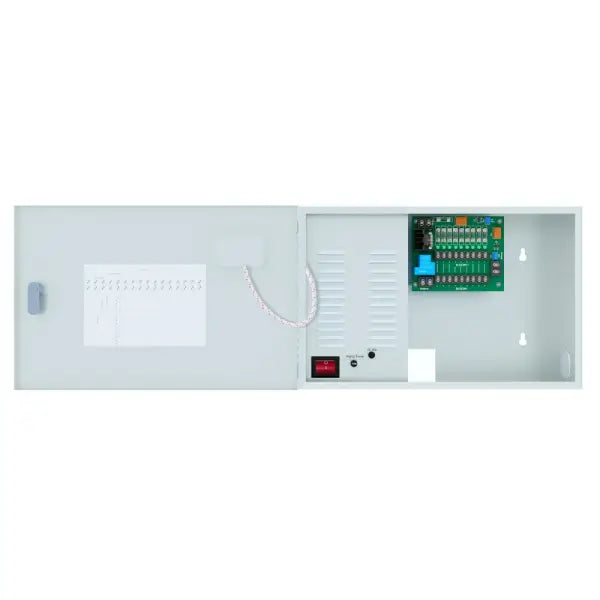

The Patriot W-DC12-4A Wall Mount Power Supply provides a regulated 12V DC output with up to 4A of total power for compatible CCTV, alarm and access-control equipment. Its lockable metal cabinet includes nine individually fused outputs, LED output indicators and a digital voltage display for convenient system monitoring. Browse our complete range of battery and power supply products for compatible system components.

Key Features

• Regulated 12V DC power output
• 4A total output capacity
• Nine individually fused power outputs
• LED status indicator for each output
• Digital LED voltage display
• Supports battery-backup operation
• Mains-fail and low-battery contacts
• Short-circuit and overload protection
• Lockable wall-mount cabinet
• Internal GPO recess
• Free-air convection cooling

Centralised Power Distribution

The W-DC12-4A distributes power across nine separately fused outputs, helping isolate individual connected devices if a fault occurs. LED indicators provide a quick visual check of each output, while the voltage display allows the installer to monitor the power supply at the cabinet.

The combined load of all connected equipment must remain within the power supply’s total 4A output capacity. Allowance should also be made for equipment start-up current and battery-charging requirements.

Battery-Backup Support

The power supply supports a compatible backup battery to help connected equipment continue operating during a mains-power interruption. Mains-fail and low-battery contacts can be used with compatible monitoring or alarm equipment to report power-related faults.

Please note: The backup battery is not included and must be selected according to the connected load, required standby time and available cabinet space.

Technical Specifications

• Model: W-DC12-4A
• Output voltage: 12V DC
• Total output current: 4A
• Power outputs: 9 individually fused outputs
• Output indication: Individual LED indicators
• Voltage display: Digital LED display
• Protection: Short-circuit and overload protection
• Cooling: Free-air convection
• Cabinet dimensions: 92 × 362 × 235mm
• Weight: 3.2kg

What Is Included?

• 1 × Patriot W-DC12-4A power supply
• Lockable wall-mount cabinet
• Integrated nine-output fused distribution board

Please note: The backup battery, connected security equipment, external cabling, mounting hardware and installation are not included unless specified separately.

Professional Installation Required

This power supply includes mains-voltage connections and should be installed by a suitably qualified technician in accordance with applicable Australian electrical and security-system requirements. Confirm the combined equipment load, cable sizes, fuse ratings and battery requirements before installation.

CTC Communications can assist with equipment selection and professional CCTV system installation across Sydney, ensuring the power supply and connected equipment are correctly specified for the site.

Order the Patriot W-DC12-4A Power Supply

Order the Patriot W-DC12-4A from CTC Communications for Australia-wide delivery. For assistance selecting a suitable power supply for your CCTV, alarm or access-control system, contact our experienced team.
