Rosslare Keypad Convertible Backlit with Resistor, AYC-F54 - CTC Communications

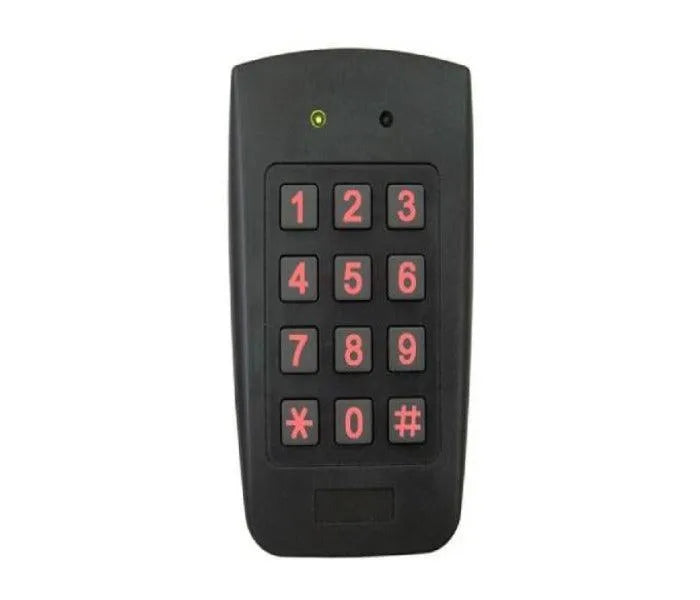

Rosslare Keypad Convertible Backlit with Resistor, AYC-F54

SKU ROSAYC-F54
by Rosslare
Availability:
Low stock

Rosslare 3x4 PIN Keypad / Reader, Wiegand or Relay out, Backlit, IP65

Model - AYCF54

  • Supports 4 to 8-Digit PIN credentials.

  • Smooth, attractive design, with all weather indoor and outdoor operation.

  • Large, high-visibility RED Backlit Keypad.

  • 2 tri-colored LEDs and an integral sounder for programming and operation.

  • User friendly menu, based on keypad, LED and sounder indicators.

  • Back and Cover Optical tamper detection and output.

  • Automatically recognizes Rosslare's PS-x5 intelligent power supply family converting it into a 500 users standalone controller with secure relays.

  • 8 Selectable PIN transmission modes including options for Key stream, Binary, Parity, and 3?4

  • Comes with a mounting and drilling label, security screw, and tool set to prevent unauthorised opening

  • 60 cm (23.6 in.) shielded interface cable

Save 8% Save 8%
$123.57
$123.57 - $123.57
$123.57
$113.93
$113.93 - $113.93
$113.93

✓ Flat Rate Shipping $18.49 ✓ Free Delivery over $750

Shipping & Refunds

Shipping Refund Policy

Rosslare AYC-F54 Convertible Backlit Keypad – Rugged, All-Weather Access Control

Model: AYC-F54

The Rosslare AYC-F54 is a durable, weather-resistant PIN keypad reader designed for seamless indoor or outdoor use. With a rugged metal housing and vivid red LED backlighting, this unit delivers reliable access control and smooth user interaction—day or night.

Designed as a convertible reader/controller, the AYC-F54 can operate as a standard reader or a 500-user standalone keypad when connected to a Rosslare PS-x25T intelligent power supply, making it ideal for residential, commercial, or industrial security environments.

🔑 Key Features:

  • Supports 4 to 8-Digit PINs: Customisable PIN length for user flexibility

  • Backlit Red Metal Keypad: Highly visible and easy to use in low-light settings

  • Indoor & Outdoor Use: Fully sealed design for all-weather performance

  • Dual-Mode Operation:

    • Reader mode (standard access control panels)

    • Standalone mode (with Rosslare PS-x25T PSU – 500 users)

  • Tamper Protection: Optical back and cover tamper detection for secure installations

  • Visual & Audio Feedback: Tri-colour LEDs and built-in sounder for intuitive operation

⚙️ Professional Features:

  • 8 PIN Transmission Modes: Choose from keystream, binary, parity, and 3x4 matrix formats

  • Installation Kit Included: Comes with mounting label, security screw, and toolset

  • Shielded Interface Cable: 60 cm length for secure, interference-resistant wiring

📋 Specifications:

  • Brand: Rosslare

  • Product Type: Keypad & Reader

  • Warranty: 60 Months

  • Series: Standard Standalone Series

  • Backlight Colour: Red

  • Power Supply Compatibility: PS-x25T (for controller mode)

🔒 Rosslare Standalone Keypad Comparison Table (500-User Models)

Model Series Keypad Type Reader Type Backlit Housing Tamper Detection Weather Rating Controller Mode Notable Features
AYC-G54 Standard Touch (Glass) PROX / HID Yes Indoor/Outdoor Yes IP65 Yes Sleek glass design, piezo touch keys
AYC-F54 Standard Piezoelectric PROX / HID Yes All-metal Yes IP65 Yes Durable metal, back cover tamper
AYC-E55 Standard Standard Plastic PROX / HID Yes Plastic enclosure Yes IP65 Yes Budget-friendly, tamper-resistant
AYC-Q54B Standard Metal Piezo Keypad PROX / HID Yes Metal (Vandal-Resistant) Yes IP65 Yes Rear cable, optical tamper, blue backlight
AYC-E60B GoPROX® Series Plastic Keypad PROX / HID Yes Indoor/Outdoor Yes IP65 Yes Converts to standalone with PS-x5 PSU
AYC-F60 GoPROX® Series Piezoelectric PROX / HID Yes Metal Yes IP65 Yes HID-compatible, secure relay outputs
AYC-G60 GoPROX® Series Touch Glass Keypad PROX / HID Yes Sleek Glass + Plastic Yes IP65 Yes Slim glass design, dual-authentication ready
AYC-Q60 GoPROX® Series Metal Piezo Keypad PROX / HID Yes Anti-Vandal Metal Yes IP65 Yes Card + PIN, 3 security modes, advanced I/O

🔒 Shop CTC Communications for trusted and secure access control solutions like the Rosslare AYC-F54, backed by expert support and installation options.

You can find firmware updates and product documentation at rosslaresecurity.com.

Rosslare Security Products Warranty

  • Rosslare security products are covered by a 60 Months manufacturer warranty
  • Please Note: Exclusions are labour for Rosslare Security products installed by others companies
  • CTC Communications provides a 1 year warranty on labour when the security product is installed by our team.
  • Freight cost is excluded from warranty, unless the product is dead upon arrival
Reviews

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

❓FAQs – Rosslare AYC-F54

Yes. When connected to a Rosslare PS-x25T intelligent power supply, the AYC-F54 functions as a 500-user standalone controller with secure relay outputs.

Absolutely. Its rugged, sealed metal construction makes it ideal for indoor or outdoor use, in both commercial and residential settings.

The AYC-F54 supports 4- to 8-digit PIN codes and offers 8 selectable transmission modes, including keystream, parity, binary, and 3x4 matrix formats for compatibility with various systems.
