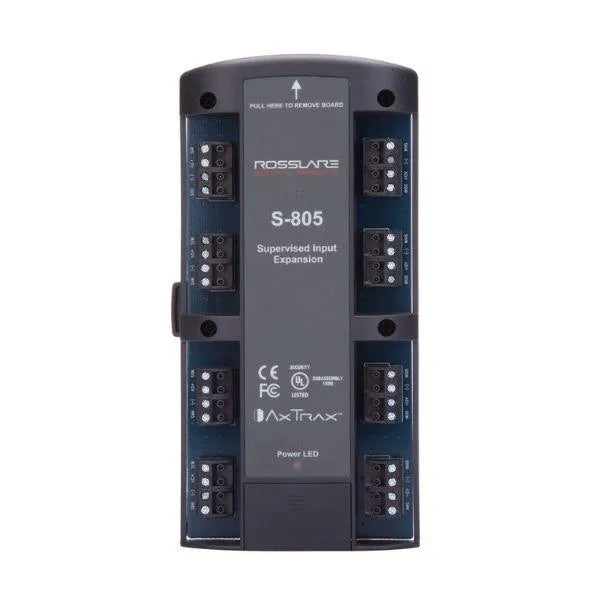

Rosslare S-805 Expansion Board for AC-825IP

Rosslare Expansion Board for AC-825IP, S-805

The AC-825IP is a state-of-the-art 4-door networked access controller and is the
backbone of a medium-scale to high-scale security system. The controller comes
with one onboard expansion slot and can be further expanded by connecting
up to 12 expansion boards via OSDP. Using only D-805 door expansion boards,
a single AC-825IP can handle up to 58 doors and 60,000 users. Driven by
AxTraxNG™ – Rosslare’s powerful, flexible, and easy-to-use software – the
system provides an ideal modular and expandable solution for commercial and
institutional needs

Model: S-805

Main Features:

• Up to 58 doors, 60,000 users, and 500,000 history log entries (FIFO) per ACU
• Onboard TCP/IP networking with AES 128-bit data encryption to an AxTraxNG server, bidirectional push communication for enhanced data transmission speed and reliability
• Supports up to 6 doors (Wiegand format/OSDP readers), each with 2 inputs and 1 output.
• 4 auxiliary inputs and 2 auxiliary outputs
• Supports 2 OSDP readers
• One onboard expansion slot and an additional 12 expansion boards via OSDP (R/S/D/P-805)
• R-805 – 16 outputs
• S-805 – 16 inputs
• D-805 – 4-door expansion
• P-805 – 16 inputs and 8 outputs
• ME-1515 metal enclosure holds 2 expansion boards or an AC-825IP board with a C14 power plug
• Real-time clock keeps time for up to 2 weeks without power (no batteries to replace)
• Spacious and lockable metal enclosure, features cable twist locks and zip-tie anchors for better cable management
• DIN rail mounting option for space saving with no additional enclosure needed
• Power management board indicates battery and power status
• Revolutionary enclosure with illumination bar that lights up when enclosure is opened, tamper sensing, and power status LED
