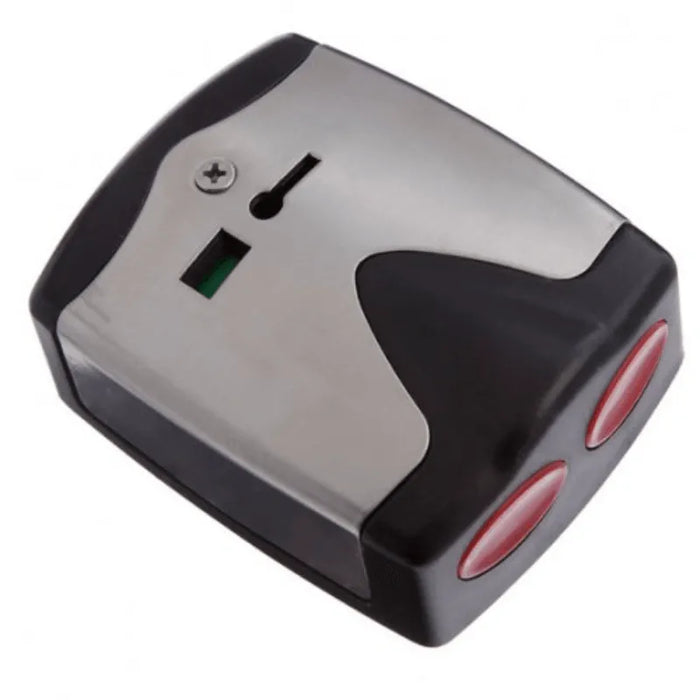

Secor Dual Press Holdup/ Panic/ Duress Button, WEB200

Holdup/Panic/Duress Button WEB200 is a dual press panic button with key reset, it incorporates a front and back tamper switch and has integrated end of line resistors.

Model: WEB200

Features :

• Dual Press key resettable Panic Button for emergency and non emergency applications.
• Innovative patented design allows for easy interchange between latching and momentary settings
• WEB200A - latching ( requires key to reset, included with WEB200A )
• WEB200C - momentary, also convertible between momentary and latching ( resets automatic, - no key included with WEB200C )
• EOLR included for both alarm and tamper – easy to wire
• Selectable EOLR values to cover most alarm panels 0, 1k, 2k, 3.3k, 4.7k, 5.6k, 6.8k, 7.9k
• Dual tamper switches to cover both front and back
• Key reset. The momentary function will be included in a future version
• Rubber plug provided to cover key hole helps prevent accidental activation
• Dimensions : 82(H) x 66(W) x 35(D)mm
• Load : 1A 30VDC/125VAC
