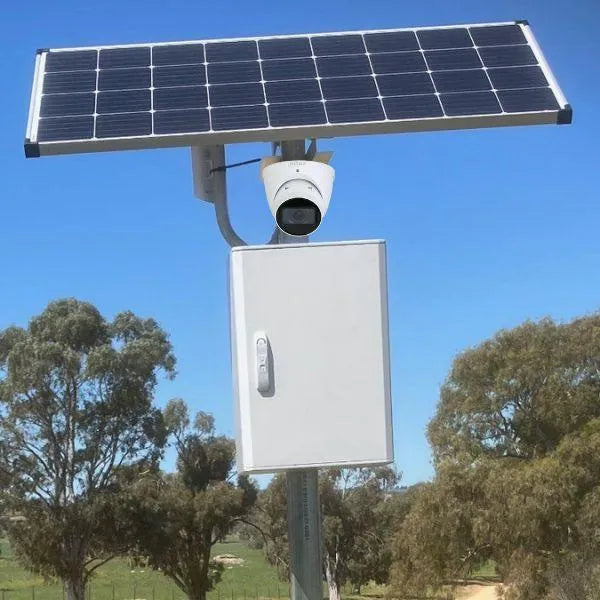

Dahua 170W Solar Surveillance System with 6MP Turret Camera – CTCSOL-170W-90DEGCAM-SD
Advanced Off-Grid Security Solution with Smart Motion Detection & 4G Remote Viewing
The Dahua CTCSOL-170W-90DEGCAM-SD Solar Surveillance System is a high-performance, self-powered security solution designed for remote locations and off-grid surveillance applications. Equipped with a 6MP WizSense turret camera, 170W monocrystalline solar panel, and 4G connectivity, this system provides continuous monitoring with smart motion detection and real-time remote access.
With integrated storage (256GB SD card), intelligent power management, and an IP66-rated weatherproof design, this solar-powered security kit is ideal for monitoring construction sites, farms, industrial areas, and critical infrastructure.
Key Features
High-Quality 6MP Surveillance with Smart Motion Detection
✔ 6MP Dahua WizSense Turret Camera – Delivers sharp, high-resolution imaging
✔ 90° Smart Motion Detection – Enhances security with intelligent AI-based alerts
✔ IR Night Vision – Provides clear visibility in low-light conditions
Self-Sustaining Solar Power System
✔ 170W Monocrystalline Solar Panel – Captures maximum sunlight for continuous operation
✔ 85Ah Valve-Regulated Lead Acid Battery – Ensures uninterrupted power supply
4G Connectivity for Remote Monitoring
✔ TP-Link TL-MR6400 Router – Enables live remote viewing via mobile networks
✔ Supports SIM Card with Active Data Plan
Efficient Storage & Data Management
✔ 256GB Western Digital SD Card Included – Allows local storage of security footage
Weatherproof & Rugged Build for Outdoor Use
✔ IP66-Rated Electrical Enclosure & Mounting Hardware – Protects components from harsh environmental conditions
✔ IK10 Impact Protection – Ensures durability and long-term reliability
Assembled Kit Includes
📦 Complete Solar-Powered Surveillance System:
✔ 1× 170W Monocrystalline Solar Panel
✔ 1× 20A PWM Solar Charge Controller
✔ 1× PV Negative Black Connector
✔ 1× PV Positive Red Connector
✔ 1× DC to DC Converter – Multi-Voltage Regulated Adapter Module
✔ 1× GRP Electrical Enclosure (IP66, IK10, Glassfiber Reinforced)
✔ 1× Pole Mount Bracket Set (2 pcs)
✔ 1× 12VDC / 85Ah Valve Regulated Lead Acid Battery (Maintenance-Free, 850A)
✔ 1× TP-Link TL-MR6400 Router for 4G Connectivity
✔ 2× DC Power Jack (Male)
✔ 2× Pole Clamps

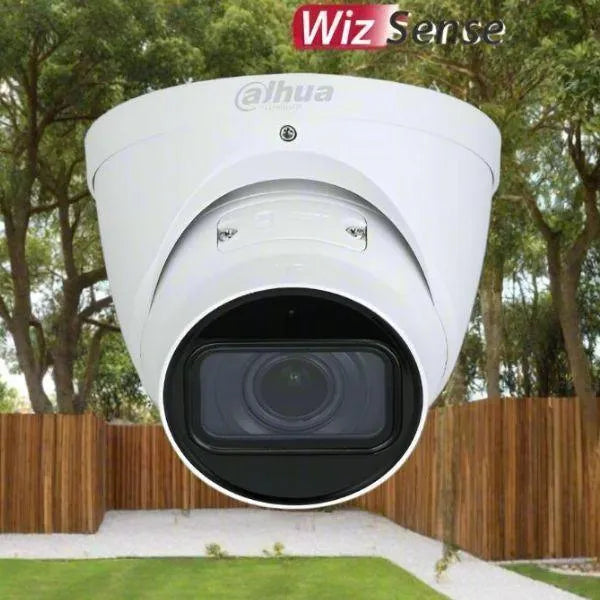

✔ 1× Dahua 6MP Turret IR Fixed-Focal WizSense Network Camera (DH-IPC-HDW3666EMP-S-AUS)
✔ 1× High-Current Connector (10mm Eye)
✔ 1× 256GB Western Digital SD Card
What’s Not Included
⚠ Additional Components Required for Installation:
🔹 90mm x 90mm Galvanized Pole (Length as required)
🔹 50 x 50 x 1.6mm Aluminum Equal Angle L-Shaped Brackets (Bunnings Part No: 9311059065126)
🔹 SIM Card with Active Data Plan for 4G Connectivity
🔹 DMSS Mobile App (Requires network connection via SIM)
🔹 Long-Range Point-to-Point WiFi Extender (Optional for extended network coverage)
Ideal Use Cases
✔ Remote Farms & Agricultural Surveillance – Protect livestock, crops, and equipment
✔ Construction & Industrial Sites – Monitor remote job sites without wired infrastructure
✔ Critical Infrastructure & High-Security Areas – Secure power stations, mines, and off-grid facilities
✔ National Parks & Wildlife Conservation – Deploy solar-powered surveillance in protected environments
Technical Specifications
Camera Performance
-
Model: DH-IPC-HDW3666EMP-S-AUS
-
Image Sensor: 6MP Progressive CMOS
-
Smart Detection: 90° AI Motion Detection
-
Video Compression: H.265 & H.264
-
Night Vision: Infrared (IR) with Extended Range
Solar Power System
-
Solar Panel: 170W Monocrystalline Panel
-
Battery Capacity: 85Ah Valve-Regulated Lead Acid Battery
-
Charge Controller: 20A PWM Solar Charge Controller
Connectivity & Storage
-
4G Router: TP-Link TL-MR6400
-
MicroSD Storage: 256GB SD Card (Western Digital)
Weatherproofing & Build Quality
-
Electrical Enclosure: IP66 & IK10 Rated for Maximum Durability
-
Mounting Hardware: Pole-Mounted Brackets & Clamps Included
Remote Access with Dahua DMSS App
📲 Monitor live security footage remotely from your mobile device
📲 Receive instant alerts & motion detection notifications
📲 Manage settings & storage from anywhere
📲 Access recorded footage directly via SD card storage
Why Choose the Dahua 170W Solar Surveillance System?
The Dahua CTCSOL-170W-90DEGCAM-SD is a high-efficiency solar-powered surveillance system, offering advanced security features, AI motion detection, and remote access via 4G connectivity. With smart power management, durable weatherproofing, and a high-capacity battery, this standalone surveillance solution is perfect for off-grid security applications.
Notes:
- ETA for pick up or Delivery 3 to 4 days from order date. This product need to be assembled once order received
🛒 Shop Now at CTC Communications for the best deals on Dahua Solar-Powered Security Systems! 🚀
Benefits of Solar Cameras
As technology advances, more efficient and sustainable solutions are becoming available to address various needs. One such innovation is the solar-powered camera, an increasingly popular choice for large properties, including farms. These cameras offer a range of benefits, from enhanced security to environmental sustainability. Let’s explore the advantages of using solar cameras for large properties and farms.
1. Energy Independence and Cost Savings
Solar cameras operate on solar energy, which means they are not dependent on the grid. This independence translates into significant cost savings over time. Once installed, solar cameras require minimal maintenance and incur no ongoing electricity costs. For large properties and farms, where multiple cameras might be needed, the reduction in energy bills can be substantial.
2. Eco-Friendly Surveillance
By harnessing the power of the sun, solar cameras provide a green alternative to traditional, grid-dependent security systems. Reducing reliance on fossil fuels helps decrease carbon footprints, making solar cameras a sustainable choice. This environmental benefit is especially important for farms and large properties that often prioritize eco-friendly practices.
3. Easy Installation and Flexibility
Traditional security cameras require extensive wiring and a stable power source, which can be challenging on large properties. Solar cameras, however, are wireless and can be installed virtually anywhere with access to sunlight. This flexibility allows property owners to place cameras in remote or hard-to-reach areas without the need for complex wiring or trenching.
4. Continuous Monitoring
Modern solar cameras come equipped with high-capacity batteries that store energy for use during nighttime or cloudy days. This feature ensures that the cameras provide uninterrupted surveillance, regardless of weather conditions. For farms and large properties, this means continuous monitoring and enhanced security day and night.
5. Scalability
As the needs of a property grow, so can the solar camera system. Adding new cameras is straightforward and does not require additional infrastructure or significant installation costs. This scalability is particularly beneficial for expanding farms and large properties that require increased surveillance coverage over time.
6. Remote Access and Smart Features
Many solar cameras are integrated with smart technology, allowing property owners to monitor their property remotely through mobile apps or web interfaces. This remote access is crucial for large properties, where frequent physical checks are impractical. Features like motion detection, real-time alerts, and HD video recording enhance the effectiveness of the surveillance system.
7. Durability and Reliability
Solar cameras are designed to withstand various weather conditions, making them suitable for outdoor use. They are typically built with durable materials that resist harsh environmental factors like rain, wind, and extreme temperatures. This robustness ensures long-term reliability and reduces the need for frequent replacements or repairs.
8. Enhanced Security for Livestock and Crops
For farms, protecting livestock and crops is a top priority. Solar cameras can monitor vast areas, deterring potential intruders and alerting owners to any unusual activities. This capability helps prevent theft and vandalism, safeguarding valuable assets and ensuring the smooth operation of the farm.
9. Minimal Maintenance
Solar cameras have few moving parts and are designed for low maintenance. Periodic cleaning of the solar panels to ensure optimal energy absorption and occasional checks are usually sufficient to keep the system running smoothly. This minimal maintenance requirement is ideal for large properties and farms, where managing multiple devices can be time-consuming.
