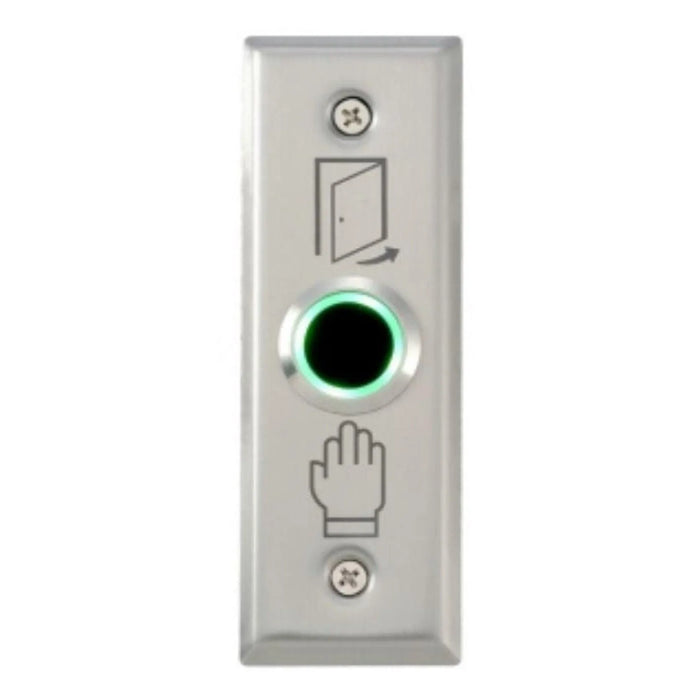

Touch-less Infrared Exit button, Double-colored LED light, SL-25P

Name: Touch-less Infrared Exit button, Double-colored LED light, SL-25P
SKU: SL-25P
Price: 38.5 AUD

SKU SL-25P

by Generic

Availability:

Out of stock

Touch-less Infrared Exit button, Double-colored LED light Slim

Model - SL-25P

FEATURES

Panel with Dimensions 115x39x26(mm).
Strong and durable SUS304 stainless steel panel design which resists strong acid and alkali.
SI-10 as mini infrared detector for access control push button auto-control detection.
Suitable for hollow door frame and electrical box use. Voltage :DC12V~24V±10%
Specially designed to prevent any interference from other infra-red.

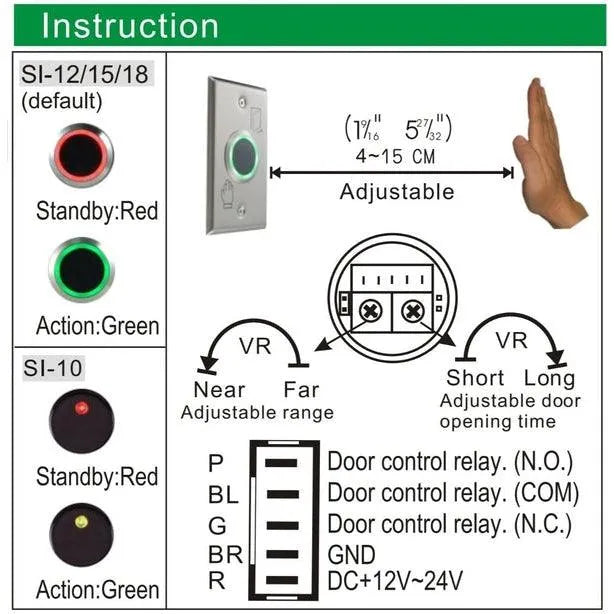

The diagram shows world universal use.
The front of the detector is waterproof design with IP65 and above.
Adjustable proximity range (4~15cm). Stable proximity range.
Door opening time is able to set Trigger state (0.5~20sec) or Toggle mode output.
Operation temperature range: -10℃~70℃.Humidity 85%Rh max.
Contact rating: 1A@30VDC N.O./N.C. Output.

Sold out

$38.50 - $38.50

$38.50

$38.50 - $38.50

$38.50

Quantity

Shipping & Refunds

Shipping Refund Policy

Touch-less Infrared Exit button, Double-colored LED light Slim

Model - SL-25P

Activate without pressing to prevent any disease contagion. It is suitable for access control system that widely used in public areas such as hospitals or restaurants. It is also can be used as auto-control detection

FEATURES

Panel with Dimensions 115x39x26(mm).
Strong and durable SUS304 stainless steel panel design which resists strong acid and alkali.
SI-10 as mini infrared detector for access control push button auto-control detection.
Suitable for hollow door frame and electrical box use. Voltage :DC12V~24V±10%
Specially designed to prevent any interference from other infra-red.
The diagram shows world universal use.
The front of the detector is waterproof design with IP65 and above.
Adjustable proximity range (4~15cm). Stable proximity range.
Door opening time is able to set Trigger state (0.5~20sec) or Toggle mode output.
Operation temperature range: -10℃~70℃.Humidity 85%Rh max.
Contact rating: 1A@30VDC N.O./N.C. Output.
