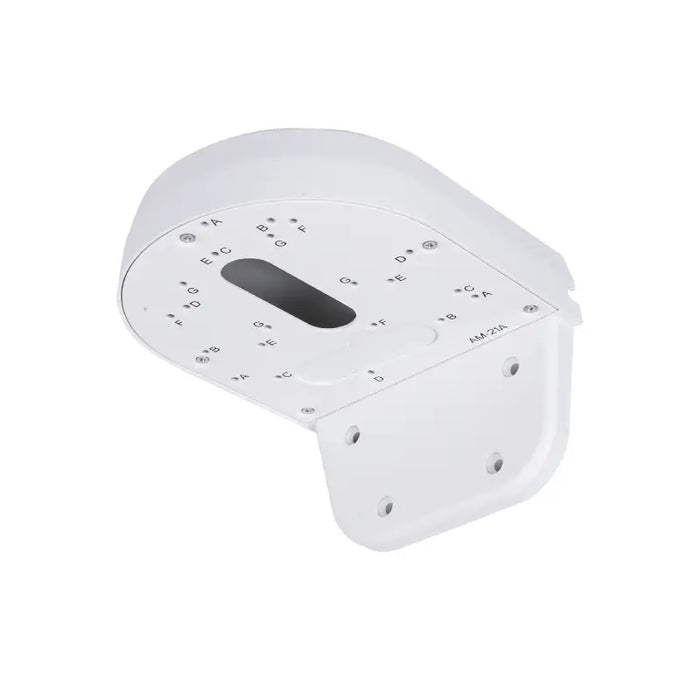

Vivotek AM-21A L-Shaped Camera Wall-Mount Bracket

Name: Vivotek AM-21A L-Shaped Camera Wall-Mount Bracket
SKU: AM-21A
Price: 68.59 AUD

SKU AM-21A

by Vivotek

Availability:

in stock, ready to be shipped

The Vivotek AM-21A L-shaped wall-mount bracket supports compatible dome and turret camera installations. Its white aluminium-alloy body measures 170 × 110 × 150mm. V02-listed models include IT9380-HV-V2 and IT9380-HTV-V2; confirm the supplied bracket revision and complete camera model before ordering.

$68.59 - $68.59

$68.59

$68.59 - $68.59

$68.59

Quantity

Shipping & Refunds

Shipping Refund Policy

Best For: Compatible Vivotek dome and turret cameras needing an L-shaped bracket for wall mounting.

Vivotek AM-21A L-Shaped Camera Wall-Mount Bracket

The Vivotek AM-21A provides a wall-mounting option for selected cameras. Its white aluminium-alloy construction suits a neat installation where the camera needs the mounting orientation provided by an L-shaped bracket.

Key Features

L-shaped camera wall-mount bracket.
White aluminium-alloy body.
170 × 110 × 150mm dimensions.
600g weight.
Compatibility depends on the bracket revision and exact camera model.

Check the Camera and Bracket Revision

The manufacturer's current specification lists part number 909009301G (V02). Confirm the supplied revision before ordering, as the compatibility lists differ between V01 and V02.

V02-listed examples include IT9380-HV-V2, IT9380-HTV-V2, FD9399-EHV, FD9399-EHTV, FD9389-EHV-V3 and FD9389-EHTV-V3. The list also includes selected FD9383, IT9383, IT9389 and IT9399 models.

Check the full camera suffix against Vivotek's current accessory guide and confirm any required plates or mounting hardware. The camera is sold separately.

Plan the Wall Installation

Your installer should assess the wall surface, fixing positions and cable route for the complete camera assembly. Choose the bracket alongside the exact camera model and installation location.

Technical Specifications

SKU	AM-21A
Current manufacturer part number	909009301G (V02); confirm supplied revision
Accessory type	L-shaped wall-mount bracket
Material / colour	Aluminium alloy / white
Dimensions	170 × 110 × 150mm (L × W × H)
Weight	600g

Match Your Camera and Mount

Browse our Vivotek dome cameras and Vivotek turret cameras, then confirm the mounting components for your selected model.

Need Help Choosing a Camera Wall Bracket?

CTC Communications supplies security products Australia-wide and installs CCTV across Sydney. Contact our team to check bracket revision, camera compatibility and installation requirements.

Discuss Your CCTV Installation

Contact CTC Communications to confirm the applicable manufacturer warranty for this mounting accessory. CTC provides a 1-year labour warranty on installations completed by our team; this does not cover installations completed by other installers.
