Vivotek AM-525 Outdoor Dome Camera Mounting Adaptor

Name: Vivotek AM-525 Outdoor Dome Camera Mounting Adaptor
SKU: AM-525
Price: 174.89 AUD

SKU AM-525

by Vivotek

Availability:

in stock, ready to be shipped

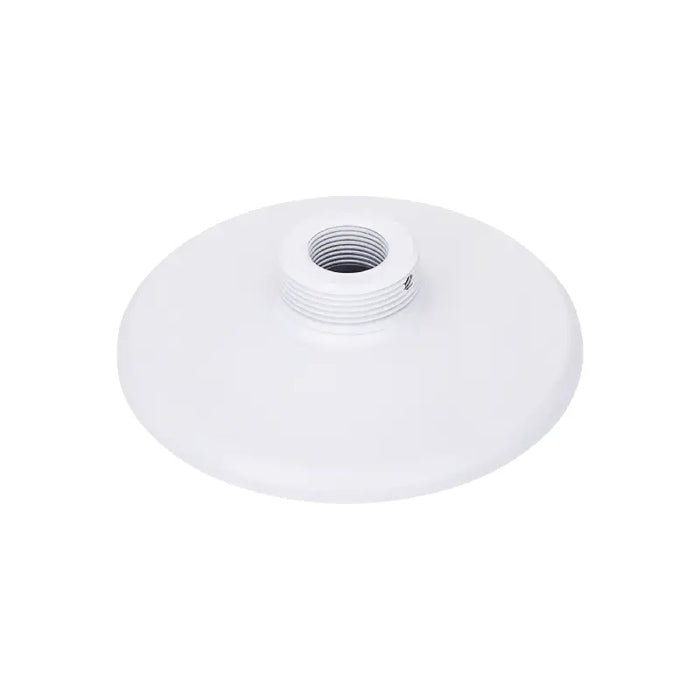

The Vivotek AM-525 outdoor dome mounting adaptor connects selected cameras to compatible mounting hardware. Its white aluminium-alloy body has 3/4-inch NPT female and 1-1/2-inch PS male threads. Confirm the exact camera and mounting assembly before ordering; brackets, pipes and cameras are sold separately.

$174.89 - $174.89

$174.89

$174.89 - $174.89

$174.89

Quantity

Shipping & Refunds

Shipping Refund Policy

Best For: Selected Vivotek outdoor dome and fisheye cameras needing an adaptor within a compatible pendant or wall-mount assembly.

Vivotek AM-525 Outdoor Dome Camera Mounting Adaptor

The Vivotek AM-525 connects selected cameras to the specified mounting hardware. Its white aluminium-alloy body provides 3/4-inch NPT female and 1-1/2-inch PS male threads, helping the installer assemble the correct mount for the camera and location.

Key Features

Mounting adaptor for selected Vivotek outdoor dome cameras.
White aluminium-alloy construction.
Two specified thread connections for compatible mounting hardware.
Ø155 × 42mm body, weighing 320g.

Match the Adaptor to the Exact Camera

Manufacturer-listed examples include FD9391-EHTV, FD9371-EHTV/HTV, FD9381-EHTV/HTV, FE9380-HV, FE9382-EHV-V2, FE9391-EHV-V2 and FE9191-H-V2. The list also includes selected FD9365, FD9367, FD8377 and FD9387 variants.

Check the full model suffix and mounting arrangement against Vivotek's current accessory guide. Camera family names alone do not confirm compatibility.

Plan the Complete Assembly

The adaptor is one mounting component. The camera, bracket, pendant pipe and any additional plates or fittings are sold separately. Confirm the required parts and thread types before ordering.

Technical Specifications

SKU	AM-525
Manufacturer part number	100140500G
Accessory type	Mounting adaptor for selected outdoor dome cameras
Material / colour	Aluminium alloy / white
Thread connections	3/4-inch NPT female and 1-1/2-inch PS male
Dimensions	Ø155 × 42mm
Weight	320g

Choose Your Camera and Mount Together

Browse our Vivotek dome cameras and Vivotek panoramic cameras, then confirm the matching mounting parts for your selected model.

Need Help Matching Mounting Components?

CTC Communications supplies security products Australia-wide and installs CCTV across Sydney. Contact our team to check camera compatibility and the mounting parts needed for your site.

Discuss Your CCTV Installation

Contact CTC Communications to confirm the applicable manufacturer warranty for this mounting accessory. CTC provides a 1-year labour warranty on installations completed by our team; this does not cover installations completed by other installers.
