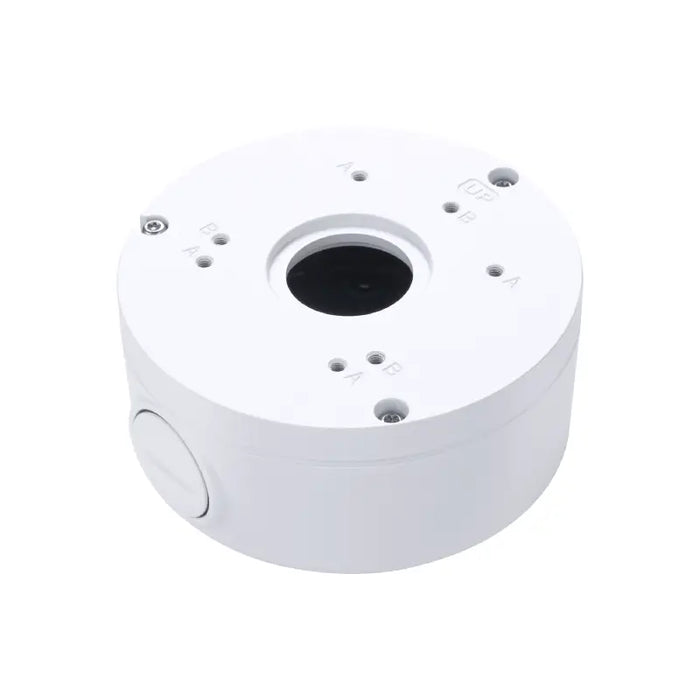

Vivotek AM-71K white camera junction box with conduit entry

Vivotek AM-71K Camera Junction Box

Name: Vivotek AM-71K Camera Junction Box
SKU: AM-71K
Price: 47.85 AUD

SKU AM-71K

by Vivotek

Availability:

in stock, ready to be shipped

The Vivotek AM-71K camera junction box provides space for cable connections beneath compatible bullet and selected turret cameras. Its white aluminium-alloy body and 3/4-inch conduit thread support tidy cable routing. Confirm the exact camera model and follow the installation guide for cable glands and sealing.

$47.85 - $47.85

$47.85

$47.85 - $47.85

$47.85

Quantity

Shipping & Refunds

Shipping Refund Policy

Best For: Compatible Vivotek bullet and selected turret installations needing space for cable connections and conduit routing.

Vivotek AM-71K Camera Junction Box

The Vivotek AM-71K is a white aluminium-alloy conduit box for selected camera models. Its compact body provides space for cable connections beneath the camera, with a 3/4-inch conduit thread for the specified cable route.

Key Features

Conduit box for compatible Vivotek cameras.
White aluminium-alloy construction.
3/4-inch conduit connection.
Compact Ø110 × 48mm body, weighing 263.4g.

Check Your Exact Camera Model

Vivotek lists support for IB9399-EHV/EHTV, IB9389-EHV-V3/EHTV-V3, IB9383-HV/HTV, IB9380-HV-V2/HTV-V2 and IT9380-HV-V2. Additional listed families include IB9368, IB9380, IB9388, IB9360, IT9380, IT9360 and selected IB9389-V2 models.

Confirm the full model suffix and mounting arrangement against the manufacturer's guide. Compatibility with one fixed-lens model does not automatically confirm compatibility with its motorised version.

Route and Seal Cables Correctly

The installation guide specifies a 3/4-inch conduit for a waterproof conduit connection. Follow its instructions for the cable gland, rubber seal and unused openings. The correct seal depends on the cable diameter.

The camera and any additional pole or corner mounting hardware are sold separately. Select fixings and sealing components to suit the installation surface and cable route.

Technical Specifications

SKU	AM-71K
Manufacturer part number	VIO900000082
Accessory type	Camera conduit / junction box
Material / colour	Aluminium alloy / white
Conduit thread	3/4-inch
Dimensions	Ø110 × 48mm
Weight	263.4g

Choose the Camera and Mount Together

Browse our Vivotek bullet cameras and Vivotek turret cameras, then confirm the matching junction box for the selected model.

Need Help Matching Your Camera Junction Box?

CTC Communications supplies security products Australia-wide and installs CCTV across Sydney. Contact our team to check camera compatibility and cable-routing requirements.

Discuss Your CCTV Installation

Contact CTC Communications to confirm the applicable manufacturer warranty for this mounting accessory. CTC provides a 1-year labour warranty on installations completed by our team; this does not cover installations completed by other installers.
