Best For: Shops, offices, building entrances and outdoor access areas needing adjustable coverage, AI people and vehicle detection, and audio recording in a durable bullet.

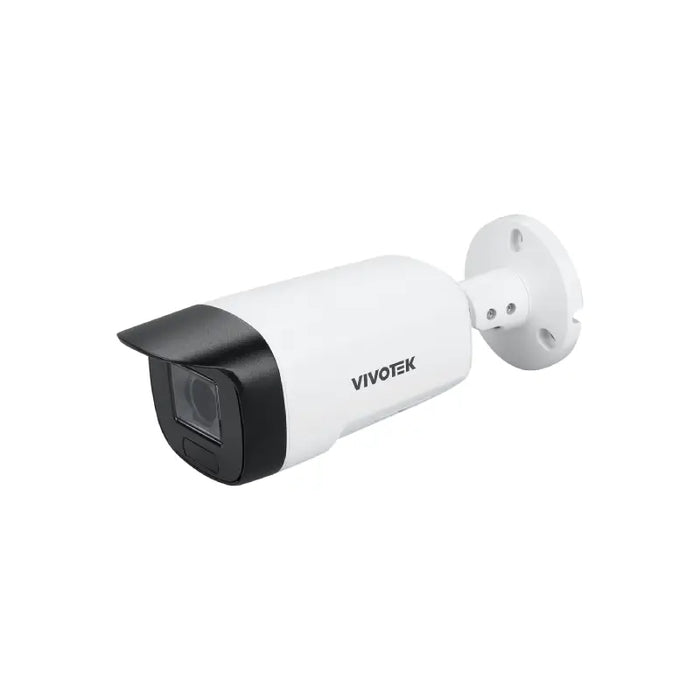

Vivotek IB9399-EHTV 8MP Motorised Outdoor AI Bullet Camera with Microphone
The Vivotek IB9399-EHTV delivers 8MP video at up to 30fps with AI detection and a built-in microphone. Its 4.3–9.8mm motorised lens offers remote focus and an adjustable 110.4°–45.1° horizontal view, while RealSight Engine and WDR Pro help retain useful detail in changing light.
Part of Vivotek’s V Series, this outdoor bullet combines up to 40m infrared illumination with IP66/IP67 weather protection and IK10 impact resistance. CTC Communications supplies security equipment Australia-wide and provides professional CCTV installation across Sydney.
Key Features
- 8MP/4K video at up to 30fps.
- 4.3–9.8mm motorised varifocal lens with remote focus and P-iris.
- AI people and vehicle detection with Vision Object Analytics.
- Smart VCA for intrusion, loitering, line crossing and face detection.
- RealSight Engine and 120dB WDR Pro.
- Up to 40m infrared illumination with Smart IR III.
- Built-in microphone for audio recording.
- IP66/IP67 weather protection and IK10 impact resistance.
- H.265 compression, Smart Stream III and microSD recording support.
- Secure boot, signed firmware and TPM 2.0 hardware security.
AI Monitoring and Supported Search
Vision Object Analytics detects people and two- or four-wheeled vehicles, providing bestshots, paths and attributes for supported recording platforms. Configure Smart VCA rules around entrances, boundaries or restricted areas to identify relevant activity. Face detection identifies the presence of a face; it does not establish a person’s identity.
Running, parking violation and restricted zone detection require an additional licence. Confirm analytics, search compatibility and licensing with your chosen recorder or video management software.
Adjustable Coverage and Changing Light
The motorised 4.3–9.8mm lens lets your installer adjust framing and focus remotely, from a wider scene to a tighter entrance view. P-iris adjusts the aperture to help maintain image quality in changing light. RealSight Engine combines Smart IR III, deblur, WDR, white balance and exposure control to help manage difficult scenes. Electronic image stabilisation uses a built-in gyro sensor to reduce the effects of camera vibration.
Infrared illumination supports black-and-white night viewing up to a rated 40m. Useful identification distance depends on placement, scene lighting and image detail at the target; the IR range is not an identification distance.
Audio Recording and Optional Connections
The built-in microphone supports audio recording without an external microphone. Full-duplex two-way audio is supported through the external audio connections. Arrange a compatible external speaker and any other audio equipment required for your installation; the camera has no built-in speaker. One digital input and one digital output support compatible alarm integration.
Technical Specifications
| Brand / Model |
Vivotek / IB9399-EHTV |
| Series / Type |
V Series / Outdoor motorised bullet network camera |
| Image Sensor |
1/1.8" progressive CMOS |
| Resolution / Frame Rate |
3840 × 2160 (8MP / 4K), up to 30fps |
| Lens |
4.3–9.8mm motorised varifocal lens, remote focus, F1.6–F2.6, P-iris |
| Field of View |
110.4°–45.1° horizontal / 57.9°–25.4° vertical / 133.9°–51.8° diagonal |
| WDR |
120dB WDR Pro |
| Infrared |
Up to 40m; VCA-based Smart IR III |
| Minimum Illumination |
0.02 lux colour / below 0.005 lux black-and-white at F1.6; 0 lux with IR on |
| Image Enhancement |
RealSight Engine; deblur, WDR, white balance and exposure control; electronic image stabilisation with gyro sensor |
| Compression / Streams |
H.265 / H.264 / MJPEG; Smart Stream III; 3 video streams |
| Vision Object Analytics |
People and two-/four-wheeled vehicles; attributes, paths, bestshots and Re-Search extraction |
| Smart VCA |
Intrusion, loitering, line crossing and face detection; unattended/missing object and crowd detection |
| Licensed Analytics |
Running, parking violation and restricted zone detection require a licence |
| Audio |
Built-in microphone; full-duplex two-way audio with compatible external speaker; external microphone input / line output |
| Alarm I/O |
1 digital input / 1 digital output |
| Storage |
microSD / SDHC / SDXC up to 1TB; NAS recording supported |
| Network / ONVIF |
10/100Mbps Ethernet; ONVIF Profiles G, S, T and M |
| Security |
Secure boot, signed firmware and TPM 2.0; Trend Micro IoT Security with 3-year trial |
| Power |
IEEE 802.3af PoE Class 3 |
| Power Consumption |
Maximum 12.4W IR on / 9.6W IR off |
| Housing |
IP66 / IP67 / IK10 |
| Operating Temperature |
Start: −20°C to 50°C; working: −35°C to 60°C IR off / −35°C to 50°C IR on |
| Dimensions / Weight |
92mm diameter × 258.5mm / 1.04kg |
| Manufacturer Warranty |
5 years, subject to applicable Australian supply and warranty terms |
Power, Storage and Installation Requirements
Use a compatible IEEE 802.3af PoE source, suitable network cabling and recording equipment supporting the required resolution and analytics. A microSD card, external speaker and mounting accessories are supplied separately. Recording retention depends on capacity, bitrate and recording schedules.
Compare other Vivotek bullet cameras or explore the wider Vivotek security range. CTC can help match coverage, recording equipment and mounting options to your property.
