Best For: Building corners, entrances, corridors and loading areas where two separate views need coverage from a single camera position.

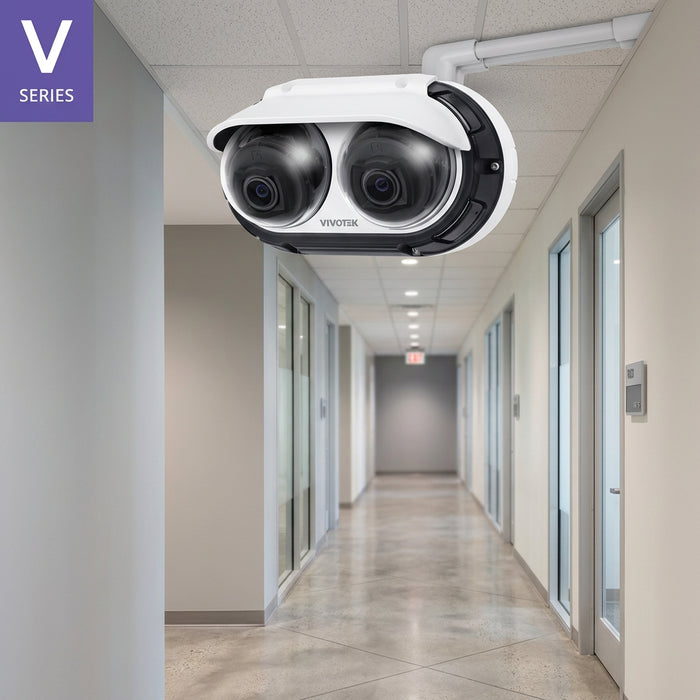

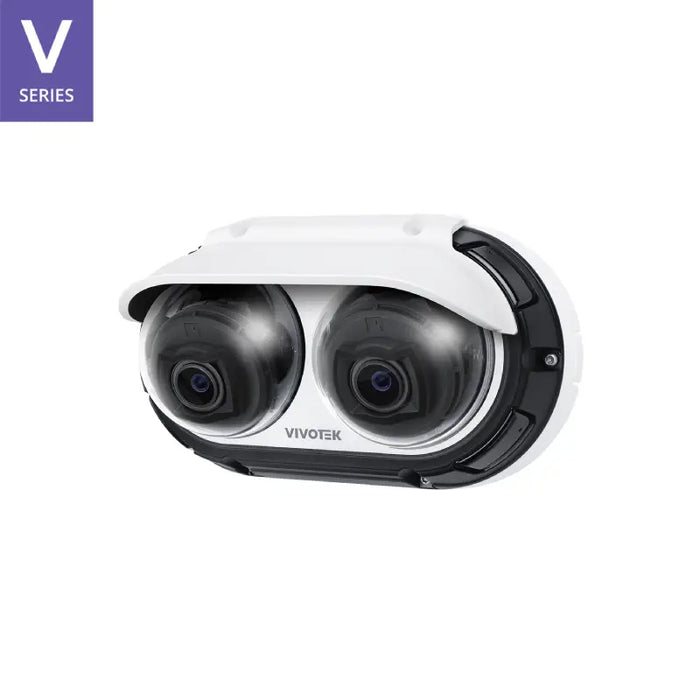

Vivotek MA9311-EHTV Dual-Directional Panoramic AI Camera
The Vivotek MA9311-EHTV combines two adjustable 5MP camera views in one outdoor housing. Its motorised lenses let an installer frame two areas independently, making it a practical option for watching an entrance and approach, or two directions along a passage.
Key Features
-
5MP per channel at up to 30fps for detailed footage from both views.
-
Two 2.8–12mm motorised P-iris lenses with remote focus.
-
Smart Motion Detection and Smart VCA for configurable alerts.
-
20m infrared illumination for night monitoring.
-
Built-in microphone to add audio context.
-
IP66/IP67, IK10 and NEMA 4X protection for outdoor installation.
Frame Two Areas from One Installation Point
Each lens can be positioned independently during installation, then zoomed and focused remotely. This flexibility helps you choose the coverage needed on each side of a doorway, corner or access route.
Plan the camera position around both views. The two channels provide separate 5MP images, rather than one stitched 10MP image. Confirm support for both streams and any recording or software licence requirements when selecting your recorder.
Use AI Alerts to Focus on Relevant Activity
People and vehicle detection helps focus monitoring on relevant movement. Smart VCA supports rules such as line crossing, intrusion and loitering, while Vision Object Analytics provides object attributes for supported management software.
Attribute search depends on compatible software and its licensing. Running, parking violation and restricted zone analytics require the appropriate Smart VCA Group 3 licence. Face detection identifies a face in the scene; it does not identify a person.
Night Coverage, Audio and PoE+
Smart IR supports night imaging up to 20 metres, with WDR Pro helping balance high-contrast scenes. Infrared illumination distance does not guarantee identification at that distance; lens settings, placement and lighting still matter.
The built-in microphone records audio. Two-way audio, external microphone/line connections and alarm I/O require the optional AO-015 cable and suitable external equipment. Supply the camera from a compatible 802.3at PoE+ port or injector with sufficient power available.
Technical Specifications
| Model / series |
MA9311-EHTV / V Series |
| Camera configuration |
Two independently adjustable 5MP sensors; 1/2.8-inch progressive CMOS |
| Resolution / frame rate |
2560 × 1920 per channel; H.265/H.264 up to 30fps per channel; MJPEG up to 15fps per channel |
| Lenses |
2.8–12mm motorised varifocal with remote focus; P-iris; F1.6–F3.3 |
| Field of view per lens |
Horizontal 96°–30°; vertical 69°–23°; diagonal 129°–38° |
| Lens positioning |
Pan 350°, tilt 80°, rotation 350° per lens; adjusted during installation |
| Night vision |
Built-in IR up to 20m with Smart IR; removable IR-cut filters |
| Imaging |
WDR Pro (120dB), RealSight Engine, 3D noise reduction and defog |
| AI detection |
Smart Motion Detection; intrusion, loitering, line crossing, face, crowd, missing object and unattended object detection |
| Object analytics |
Vision Object Analytics: people/vehicle detection and attribute extraction; compatible software required for attribute search |
| Licensed analytics |
Smart VCA Group 3: running, parking violation and restricted zone detection require a licence |
| Video / streaming |
H.265 / H.264 / MJPEG; Smart Stream III; three streams per channel |
| Audio |
Built-in microphone; full-duplex two-way audio and external audio connections require AO-015 cable and suitable external equipment |
| Alarm I/O |
One digital input and one digital output via optional AO-015 cable |
| Storage |
MicroSD / SDHC / SDXC up to 1TB; NAS recording; memory card sold separately |
| Network / interoperability |
Gigabit Ethernet; ONVIF Profiles G, S, T and M |
| Cybersecurity |
TPM 2.0, secure boot, signed firmware; Trend Micro IoT Security with default 3-year trial |
| Power |
IEEE 802.3at PoE+ Class 4; maximum 25.5W with IR on / 19.8W with IR off |
| Outdoor protection |
IP66 / IP67, IK10 and NEMA 4X |
| Temperature |
Operating −40°C to +55°C with IR off or +50°C with IR on; starting −30°C to +55°C |
| Dimensions / weight |
230 × 135 × 112mm; 1.55kg |
| Warranty |
5-year manufacturer warranty, subject to applicable terms |
Build Coverage Around Your Site
Compare our Vivotek panoramic security cameras for other layouts and viewing requirements. Explore the Vivotek collection to choose additional cameras for areas outside these two views.
Need Help Planning Two-Direction Coverage?
CTC Communications supplies security products Australia-wide and provides CCTV installation across Sydney. Talk to our team about camera placement, recording compatibility and PoE+ power for your site.
Discuss Your CCTV Installation
