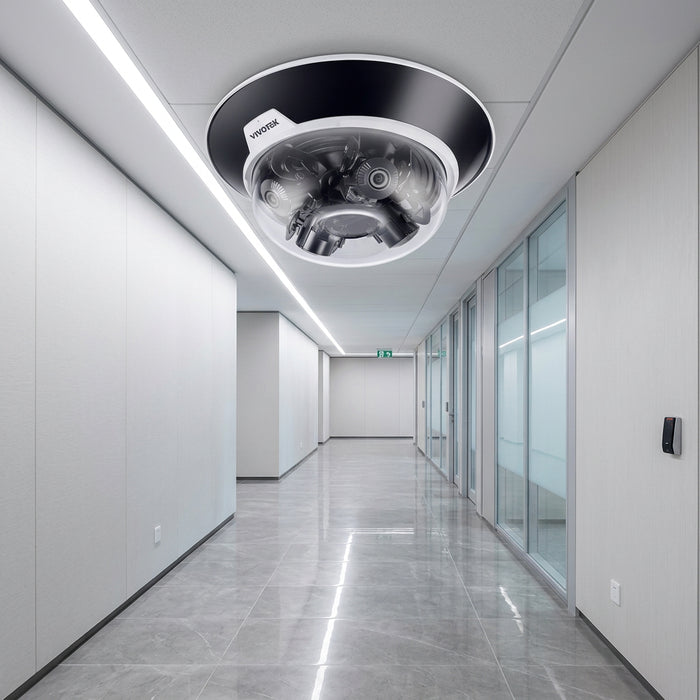

Best For: Building corners, entrances, corridors and loading areas where four separate views need coverage from a single camera position.

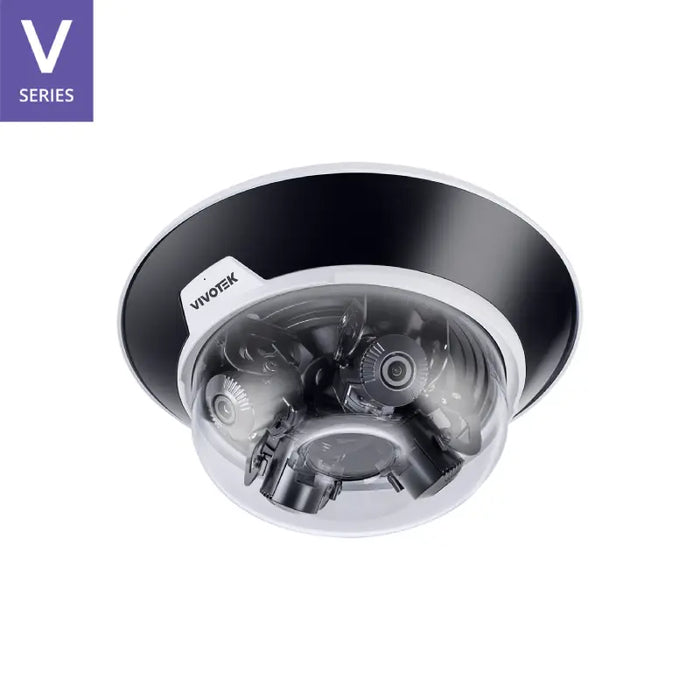

Vivotek MA9322-EHTV-V2 Multi-Directional Panoramic AI Camera
The Vivotek MA9322-EHTV-V2 combines four adjustable 5MP camera views in one outdoor housing. Its motorised lenses let an installer frame four areas independently, making it a practical option for watching a building corner, car park or several approaches.
Key Features
-
5MP per channel at up to 30fps for detailed footage from all four views.
-
Four 3.2–7.7mm motorised lenses with remote focus.
-
Smart Motion Detection and Smart VCA for configurable alerts.
-
30m infrared illumination for night monitoring.
-
Built-in microphone to add audio context.
-
IP66, IK10 and NEMA 4X protection for outdoor installation.
Frame Four Areas from One Installation Point
Each lens can be positioned independently during installation, then zoomed and focused remotely. This flexibility helps you choose the coverage needed around building corners, car parks and multiple access routes.
Plan camera placement around all four views. The 20MP total comes from four separate 5MP channels, each aimed to suit the site. Confirm recorder support for all four streams, recording bandwidth and any software licence requirements before ordering.
Use AI Alerts to Focus on Relevant Activity
People and vehicle detection helps focus monitoring on relevant movement. Smart VCA supports rules such as line crossing, intrusion and loitering, while Vision Object Analytics provides object attributes for supported management software.
Attribute search depends on compatible software and its licensing. Running, parking violation and restricted zone analytics require the appropriate Smart VCA Group 3 licence. Face detection identifies a face in the scene; it does not identify a person.
Night Coverage, Audio and PoE+
Smart IR supports night imaging up to 30 metres, with WDR Pro helping balance high-contrast scenes. Infrared illumination distance does not guarantee identification at that distance; lens settings, placement and lighting still matter.
The built-in microphone records audio. Two-way audio, external microphone/line connections and alarm I/O require the optional AO-006 cable and suitable external equipment. Supply the camera from a compatible 802.3at PoE+ port or injector with sufficient power available.
Technical Specifications
| Model / series |
MA9322-EHTV-V2 / V Series |
| Camera configuration |
Four independently adjustable 5MP sensors; 1/2.8-inch progressive CMOS |
| Resolution / frame rate |
2560 × 1920 per channel; H.265/H.264 up to 30fps per channel; MJPEG up to 15fps per channel |
| Lenses |
3.2–7.7mm motorised varifocal with remote focus; fixed iris; F1.85–F2.4 |
| Field of view per lens |
Horizontal 94°–43°; vertical 67°–33°; diagonal 129°–54° |
| Lens positioning |
Tilt 0°–105° and rotation ±90° per lens; adjusted during installation |
| Night vision |
Built-in IR up to 30m with Smart IR; removable IR-cut filters |
| Imaging |
WDR Pro (120dB), RealSight Engine, 3D noise reduction and defog |
| AI detection |
Smart Motion Detection; intrusion, loitering, line crossing, face, crowd, missing object and unattended object detection |
| Object analytics |
Vision Object Analytics: people/vehicle detection and attribute extraction; compatible software required for attribute search |
| Licensed analytics |
Smart VCA Group 3: running, parking violation and restricted zone detection require a licence |
| Video / streaming |
H.265 / H.264 / MJPEG; Smart Stream III; three streams per channel |
| Audio |
Built-in microphone; full-duplex two-way audio and external audio connections require AO-006 cable and suitable external equipment |
| Alarm I/O |
One digital input and one digital output via optional AO-006 cable |
| Storage |
MicroSD / SDHC / SDXC up to 1TB; NAS recording; memory card sold separately |
| Network / interoperability |
Gigabit Ethernet; ONVIF Profiles G, S, T and M |
| Cybersecurity |
TPM 2.0, secure boot, signed firmware; Trend Micro IoT Security with default 3-year trial |
| Power |
IEEE 802.3at PoE+ Class 4; maximum 25.5W maximum; 24V AC input also available via AO-006 cable |
| Outdoor protection |
IP66, IK10 and NEMA 4X |
| Temperature |
Operating −40°C to +55°C with IR off or +50°C with IR on; starting −30°C to +55°C |
| Dimensions / weight |
Ø275 × 118mm; 2.7kg |
| Warranty |
5-year manufacturer warranty, subject to applicable terms |
