Best For: Retail entrances, commercial buildings and transport locations needing visitor counts, queue insights and a view of the counting area.

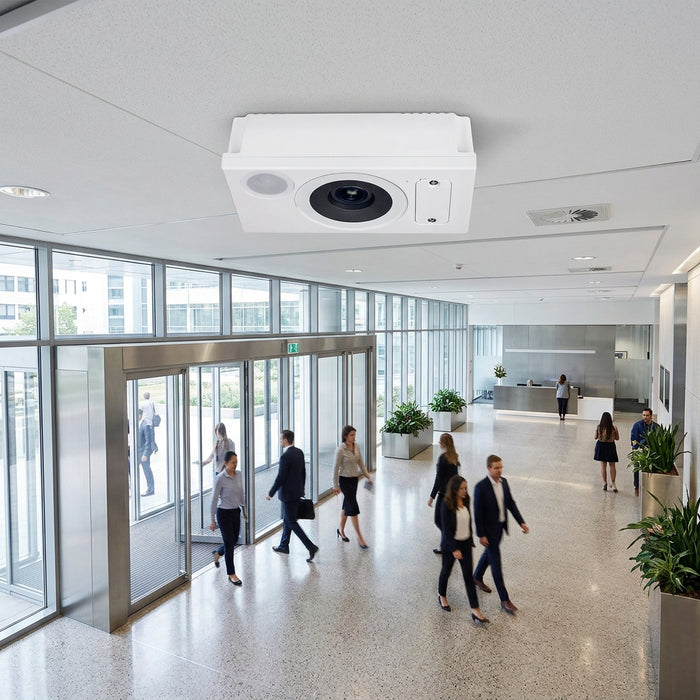

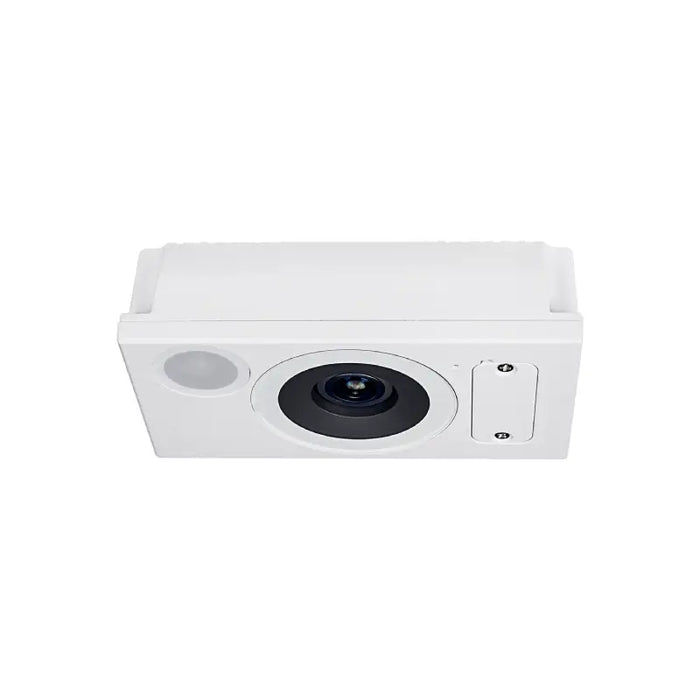

Vivotek SC9133-RTL 3MP AI People-Counting Camera
The Vivotek SC9133-RTL combines AI people counting with a wide fisheye view. Use it to understand visitor flow through an entrance, monitor queues and plan staffing around busy periods, while retaining video and audio context from the scene.
Key Features
-
3MP video at up to 30fps with a 140° field of view.
-
Smart Counter with bi-directional counting and U-turn handling.
-
Flexible mounting heights from 1.9–10m for different entrance layouts.
-
Queue analysis and zone detection to support operational planning.
-
Built-in microphone, white light and IR LEDs for scene monitoring.
-
IP66 and IK10 protection with PoE or DC power options.
Understand Visitor Flow
Counting people entering and leaving helps a business compare traffic across periods and identify busy times. Queue analysis and configured zones provide additional information about activity in the monitored area.
Reliable counts depend on correct positioning, calibration and an unobstructed view. Have the entrance width, mounting height and expected traffic assessed before choosing the installation point.
Plan Coverage for Wider Entrances
The camera supports stitching across up to seven cameras for larger counting areas, using a compatible configuration. Its 140° fisheye view and adjustable tilt help an installer align coverage with the entrance.
Staff Exclusion requires a licence. Additional AI classification capabilities depend on the supported firmware and configuration. Confirm the required counting functions, reporting integration and licences when planning the system.
Video, Audio and Network Connections
WDR helps manage contrast around bright entrances. The built-in microphone provides one-way audio, while local memory-card and NAS recording options support video storage.
This model uses M12 connectors rather than a direct RJ45 socket. An M12-to-RJ45 cable is included for the Ethernet/PoE connection. Confirm any additional power or I/O cabling needed for your installation.
Technical Specifications
| Model / series |
SC9133-RTL / S Series |
| Sensor / resolution |
1/2.8-inch progressive CMOS; 1792 × 1792 (3MP) |
| Lens |
1.47mm fixed focal length, F2.7; fixed iris |
| Field of view |
140° horizontal, vertical and diagonal |
| Frame rate / encoding |
Up to 30fps at 1792 × 1792; H.265, H.264 and MJPEG |
| Image processing |
WDR Pro; 92dB dynamic range; Smart Stream III |
| Illumination |
Built-in white light and infrared LEDs |
| Mounting height |
1.9–10m, subject to counting-area design; tilt adjustment 0°–20° |
| Counting |
Smart Counter; bi-directional counting, U-turn handling, queue analysis and zone detection |
| Multi-camera coverage |
Stitching supported for up to seven cameras; compatible configuration required |
| Licensed option |
Staff Exclusion requires a licence |
| Audio |
Built-in microphone; one-way audio |
| Storage |
MicroSD / SDHC / SDXC up to 1TB; NAS recording; card sold separately |
| Network |
10/100 Ethernet via M12 female, 4-pin D-coded connector |
| Additional interface |
M12 12-pin A-coded connection for DC power, two RS485 connections, two digital inputs and one digital output |
| Power |
IEEE 802.3af PoE Class 3 or 9–48V DC |
| Maximum power draw |
PoE 12.5W; DC 13.3W |
| Protection / temperature |
IP66, IK10; starting and operating −30°C to +60°C |
| Dimensions / weight |
140 × 76 × 42mm; 492g |
| Included items |
Ceiling mounting bracket with ears, screw pack, M12-to-RJ45 cable and quick installation guide |
| Warranty |
3-year manufacturer warranty, subject to applicable terms |
