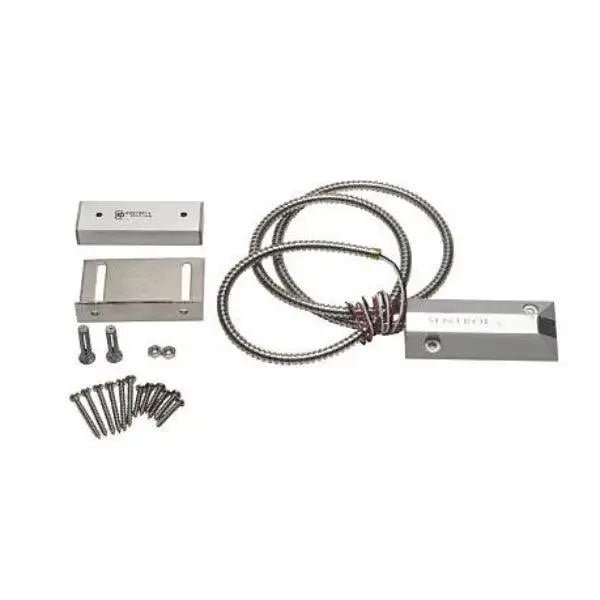

Sentrol 2207AH‑L Heavy‑Duty Overhead Door Magnetic Contact, Aluminum Housing, SPDT Reed, Wide Gap

Sentrol 2207AH Overhead Door Magnetic Contact, is a low profile and made of stainless steel

Model : 2207AH-L

Features

• Miniature, Low-profile Design
• Stainless Steel Armored Cable for Added Security, Reliability
• Wide Working Gap for Overhead Doors7bull;Small Size Less Likely to be Damaged by Forklifts
• Aluminum Bar Stock Resists Corrosion in Harsh Environments
• Mounting Hardware Included
• Jacketed Lead Available
• Fully Sealed Switch
• Form C Unit Available

To mount model 2207AH, do the following:

1. Secure the switch to the floor with appropriate fasteners (wood or masonry). Be sure to position the switch where it will not interfere with traffic.
2. Attach an ohmmeter to the common and closed loop leads. The meter should read INFINITY with the magnet away from the switch.
3. Align the switch and magnet so the labels read in the same direction. Contact is polarity-sensitive.
4. Bring the magnet toward the switch until the meter again reads INFINITY. Mark this point, and position the magnet between these two marks.
5. Attach the magnet directly to the door or with an L-bracket (GE Part Number 1912). See Ordering information for the model's make distance between the switch and magnet to allow for door operational tolerance.
