Hills Security Alarm System XRPro

Name: Hills Security Alarm System XRPro
SKU: NXX-8-WZ-AU
Price: 438.13 AUD

SKU NXX-8-WZ-AU

by Hills

Availability:

in stock, ready to be shipped

Hills Reliance XR Pro hybrid alarm control panel and metal enclosure for larger homes, businesses and multi-area properties. Supports up to 176 wired and wireless zones, eight areas, 256 user codes, onboard Ethernet and UltraSync+ smartphone access.

Important: This SKU includes the XR Pro PCB and enclosure only. Keypad, backup battery, plug-pack power supply, detectors and sirens are not included.

Save 28%

$607.86

$607.86 - $607.86

$607.86

$438.13

$438.13 - $438.13

$438.13

Quantity

Shipping & Refunds

Shipping Refund Policy

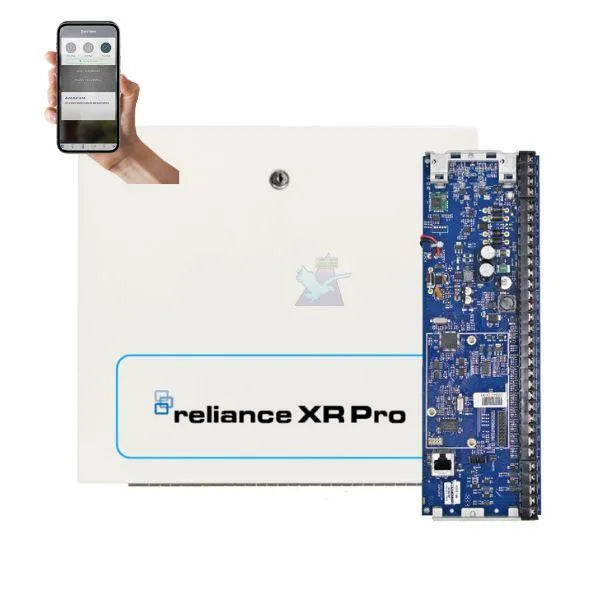

Hills Reliance XR Pro Hybrid Alarm Control Panel and Enclosure

The Hills Security Alarm System XRPro provides a high-capacity hybrid alarm platform for larger homes, commercial properties and multi-area sites. It can be used for a new installation or as a replacement control panel where compatible existing alarm equipment can be retained.

With extensive zone expansion, onboard Ethernet connectivity, legacy and encrypted wireless support and UltraSync+ app capability, the XR Pro is designed for more complex security requirements.

Best For

Larger residential, commercial, education, retail, aged-care and warehouse sites requiring up to 176 zones, eight areas and support for a large number of users. This SKU is the XR Pro panel and enclosure only.

What Is Included?

Hills Reliance XR Pro control panel PCB
Hills Reliance XR Pro metal enclosure

Not included: keypad, backup battery, plug-pack power supply, detectors, sirens, Wi-Fi or cellular expansion module, monitoring service and professional installation.

Reliance XR Pro Capacity and Features

Zone capacity	Up to 16 onboard zones using zone doubling; expandable to 176 wired and wireless zones
Areas	Up to eight separately controlled areas
User codes	Up to 256 four-digit user PIN codes
Codepads	Supports up to 24 compatible codepads
Event history	Up to 1,024 events
Connectivity	Onboard Ethernet/IP reporting, web programming and web portal access
Wireless support	Compatible legacy 60-bit ITI and newer 80plus encrypted wireless devices

UltraSync+ Smartphone App and Internet Requirements

The XR Pro includes onboard Ethernet connectivity for connection to a compatible internet router. Once professionally configured with UltraSync+, users can remotely arm or disarm the alarm, receive event notifications, check supported sensor status and review event history.

The encrypted UltraSync cloud connection can also support remote programming and connection to a professional monitoring service where configured.

Important: onboard IP connectivity uses an Ethernet cable. Wi-Fi or cellular operation requires a compatible additional module. App access, cloud services and professional monitoring may require account setup or ongoing service charges.

Wired and Wireless Compatibility

The Reliance XR Pro is a hybrid panel that can combine hard-wired zones with compatible wireless detectors, reed switches and remote controls. Its support for compatible legacy 60-bit ITI and newer 80plus encrypted devices makes it useful when upgrading an established Hills Reliance system.

Compatibility must be checked by model and wireless technology. Not every Hills or third-party keypad, detector, siren or wireless product is supported.

Replacing an Existing Hills Reliance Panel

Compatible existing detectors, reed switches, sirens, cabling and selected wireless peripherals may be retained when replacing an older Hills Reliance control panel. Reusing suitable equipment can reduce disruption and replacement costs.

The existing keypad, wireless devices, zone wiring, end-of-line resistors, power requirements and siren circuits should be assessed before installation. Faulty, obsolete or incompatible components will require replacement.

Additional Equipment Required

A complete working alarm system will require compatible supporting equipment, including:

Hills Reliance-compatible codepad
Suitable 16V plug-pack power supply
12V rechargeable backup battery
Compatible detectors and door or window contacts
Internal and external alarm warning devices where required
Ethernet connection for onboard UltraSync+ access
Optional Wi-Fi, cellular, expansion or monitoring equipment where required

Customers wanting the panel, battery and power supply together should compare the Hills Security Alarm System XR Pro Upgrade Kit.

XR or XR Pro?

Capability	Reliance XR	Reliance XR Pro
Maximum zones	24	176
Maximum areas	4	8
User PIN codes	40	256
Maximum codepads	16	24

Choose the XR for many homes and small businesses. Choose the XR Pro for larger or more complex sites requiring extensive expansion, additional areas or substantially more users.

Power, Programming and Installation

This panel requires a suitable 16V plug-pack power supply, a nearby power outlet and a compatible 12V rechargeable backup battery. These items are not included with SKU NXX-8-WZ-AU.

Professional installation is recommended. The panel must be mounted securely, powered correctly, connected to compatible field devices, programmed and tested. UltraSync+ and any remote monitoring services must also be commissioned.

Suitable Applications

Larger homes and multi-building residential properties
Retail stores and commercial premises
Schools and education facilities
Aged-care and community facilities
Warehouses and industrial sites
Properties requiring multiple independently controlled areas

Warranty, Delivery and Installation

This Hills Reliance alarm panel is supplied with a two-year manufacturer warranty. CTC Communications delivers alarm equipment Australia-wide and provides professional alarm installation across Sydney.

For help planning a new or replacement system, visit our home alarm installation Sydney page.

Related Hills Reliance Products

Warranty

Hills Reliance Security Alarm System intrusion products are covered by a 2 years warranty from the date of purchase.
Postage costs for all replacement parts are at the users expense.
CTC Communications offer a 1 year warranty on labour when the system is installed by us.
We will not warranty the labour cost of replacement.
