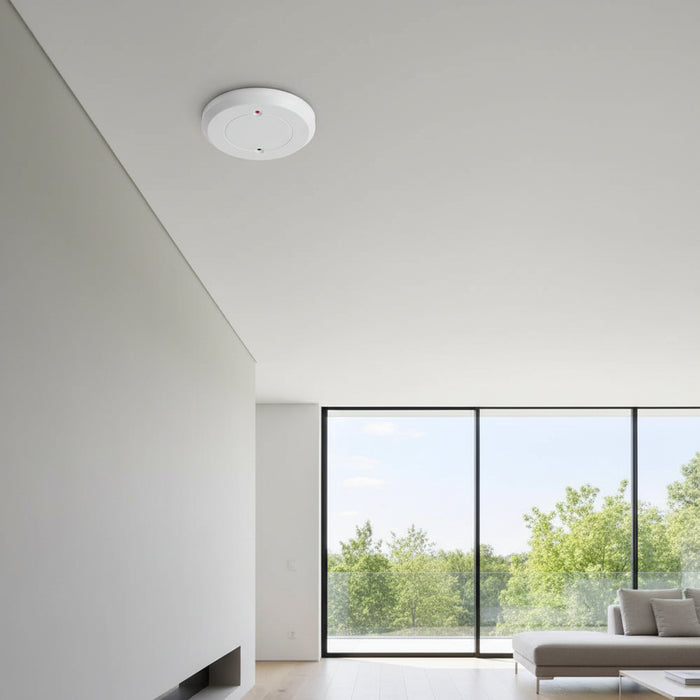

Bosch DS1101i Break Glass Sensor
The Bosch DS1101i Break Glass Sensor is a wired acoustic glass break detector designed to help protect windows, glass doors and glazed entry points as part of a compatible security alarm system. Using Bosch microprocessor-based Sound Analysis Technology (SAT), automatic environmental test circuitry and sound check functionality, the DS1101i provides reliable detection for areas where glass break protection is required.
This Bosch security sensor is ideal for homes, offices, retail stores, showrooms and commercial premises with vulnerable glass areas. It can be used alongside PIR motion detectors, reed switches, vibration sensors and other alarm accessories to create a more complete perimeter and internal security solution.
Explore our full range of security detectors and brackets for compatible alarm system upgrades and installations.
Key Features
- Wired acoustic break glass sensor for compatible alarm systems
- Model: DS1101i
- Microprocessor-based Sound Analysis Technology (SAT)
- Automatic environmental test circuitry
- Sound check feature for testing and setup
- Designed to detect the sound pattern of breaking glass
- Compact low-profile design
- High-impact ABS plastic enclosure
- Form C alarm relay output
- Normally-closed cover-activated tamper switch
- Suitable for residential and commercial security installations
Ideal Applications
- Homes with large glass doors or windows
- Retail stores and shopfronts
- Showrooms and display areas
- Office glass partitions and entry points
- Commercial premises with exposed glazing
- Warehouses with glass entry doors or reception areas
- Alarm system upgrades needing extra glass protection
- Perimeter security where glass break detection is required
Microprocessor-Based Sound Analysis
The Bosch DS1101i uses microprocessor-based Sound Analysis Technology to help identify the specific acoustic pattern associated with breaking glass. This helps the sensor distinguish genuine glass break events from other common background sounds when installed and configured correctly.
Automatic Environmental Test Circuitry
The automatic environmental test circuitry helps support reliable performance by assisting with setup and site testing. This is useful for professional installers when checking the detector’s suitability for the room, glass area and surrounding acoustic environment.
Compact Design with Tamper Protection
The DS1101i features a compact round design with a high-impact ABS plastic enclosure. It also includes a normally-closed cover-activated tamper switch with separate terminals, helping protect the device from unauthorised opening or interference.
Technical Specifications
| Feature |
Specification |
| Model |
DS1101i |
| Brand |
Bosch |
| Device Type |
Break glass sensor / acoustic glass break detector |
| Detection Technology |
Microprocessor-based Sound Analysis Technology (SAT) |
| Current |
23mA at 12VDC |
| Voltage |
6VDC to 15VDC |
| Operating Temperature |
-29°C to +49°C |
| RFI Immunity |
No alarm or setup on critical frequencies from 26MHz to 950MHz at 50V/m |
| Dimensions |
2.1cm H x 8.6cm diameter |
| Material |
High-impact ABS plastic enclosure |
| Alarm Output |
Form C reed relay rated 3.5W, 125mA at 28VDC for resistive loads |
| Tamper |
Normally-closed cover-activated tamper switch with separate terminals, rated 28VDC, 125mA maximum |
Installation & Compatibility
The Bosch DS1101i Break Glass Sensor is designed for wired alarm systems and should be connected to a compatible alarm panel by a qualified security installer. Correct placement, room acoustics, glass type, distance from glazing and alarm zone configuration are important for reliable performance.
Professional installation is recommended to ensure the sensor is correctly positioned, tested and integrated with your alarm system.
