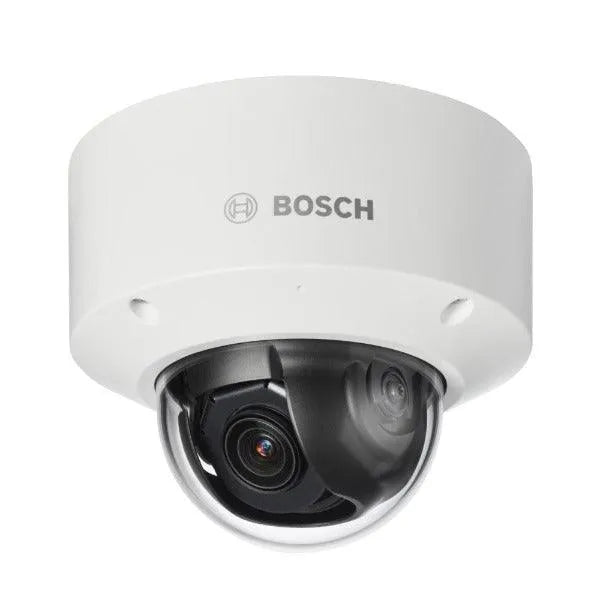

Bosch 8MP Motorised VF Dome Camera, BOSCH-NDV-8504-R

Name: Bosch 8MP Motorised VF Dome Camera, BOSCH-NDV-8504-R
SKU: BOS-NDV-8504-R
Price: 3210.0 AUD

SKU BOS-NDV-8504-R

by Bosch

Bosch 8MP Outdoor Motorised VF Dome 8000i Camera, PTRZ, H.265, WDR, IVA, 3.9 - 10mm

BOS-NDE-8504-R | Bosch 8000i 8MP PTRZ Dome — Rugged, intelligent, and fast to commission. Built for harsh Australian mining environments with IP66 weather protection and WDR. The 8000i series enables PTRZ (Pan, Tilt, Rotate, Zoom) for remote framing after install, with IVA analytics and efficient H.265 compression.

Overview

8MP motorised varifocal (3.9–10mm) for high-detail coverage
PTRZ for remote set-up on masts/gantries (reduced working-at-heights)
Intelligent Video Analytics (IVA) for security & safety workflows
H.265 with WDR for bandwidth savings and challenging light
Rated IP66 for outdoor duty in mining and heavy industry

Key Features

Resolution: 8MP (UHD)
Lens: 3.9–10mm motorised
Series: 8000i
Special: PTRZ, IVA, H.265, WDR
Outdoor Rating: IP66

Technical Specifications

Model	BOS-NDE-8504-R
Image Sensor	8MP
Lens	3.9–10mm motorised varifocal
Analytics	IVA
Codecs	H.265
Wide Dynamic Range	WDR
Remote Setup	PTRZ (Pan, Tilt, Rotate, Zoom)
Ingress Rating	IP66
Operating Environment	Outdoor

Ideal Use Cases (Mining)

High-mast perimeter and haul-road overlooks (remote PTRZ framing)
Load-out, crusher & conveyor monitoring
Fuel farms, laydown yards, and access control points

What’s in the Box

BOS-NDE-8504-R camera
Quick start / mounting hardware
Documentation

Installation & Support

Supply Australia-wide. Professional installation Sydney-wide. Integration with alarms, access control and monitoring available.

FAQs

Can I adjust the view remotely after installation?

Yes — PTRZ allows remote pan, tilt, rotate and zoom adjustment, ideal for high or difficult locations.

Is it suitable for dust and harsh weather?

Yes — the camera is rated IP66 for outdoor environments typical of mining sites.

Does it include video analytics?

Yes — IVA for security and operational awareness (e.g., line-crossing, intrusion).

Bosch Security Products Warranty

Bosch security products are covered by a 3 year manufacturer warranty
Please Note: Exclusions are labour for Bosch Security products installed by others companies
CTC Communications provides a 1 year warranty on labour when the security product is installed by our team
Freight cost is excluded from warranty, unless the product is dead upon arrival
