Inception Controller Business Alarm System Kit

Inception Controller Business Alarm System Kit

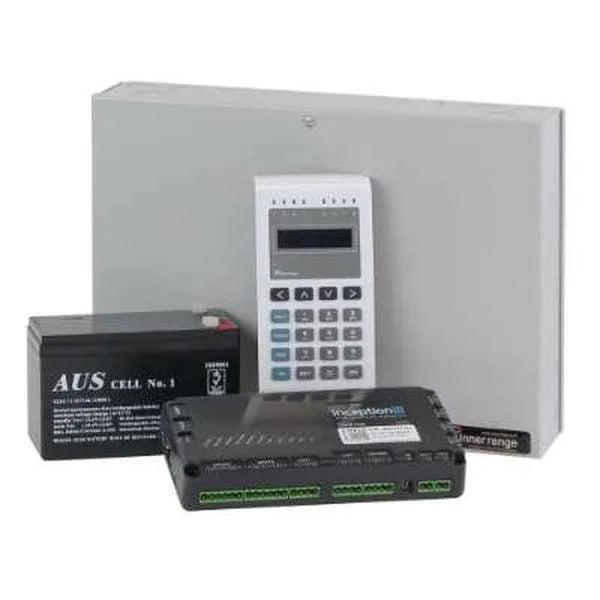

This item contains the following components:

• 1 x Inception Controller
• 1 x Low Profile Enclosure with Mounting Plate - Small
• 1 x Inner Range EliteX Standard Keypad
• 1 x 12V 7.0Ah Sealed Lead Acid Battery

The Inception controller has everything you require for a powerful security system that brings together intruder detection, access control, and automation with one easy to use web based hardware solution.

The EliteX LCD keypad is an elegantly designed terminal that features a clear and easy to read OLED display.

The keypad’s 8 indicator LEDs feature programmable brightness and can display the real-time status of the security system.

The controller features eight universal inputs to connect intruder detection devices and there are four universal relay outputs which can be configured to control door locks, strobe lights, siren screamers or automation devices.

The kit includes a 12V 7.0Ah high quality SLA battery and a low-profile enclosure supplied with a tamper switch and bracket to accommodate a fully enclosed, secured installation.

Using the web interface installation, end user control is as simple as connecting a network cable to Inception (or use of the optional WiFi adapter) and using any web browser to navigate to Inception’s web pages.

For expansion, the Inception offers an RS-485 OSDP reader bus, for up to 8 SIFER smart card readers to be connected directly to the controller and an RS-485 LAN expansion port to connect external expansion modules.

Inception Controller

Built-in web interface
• 8 x universal zone inputs - expandable up to 512
• 4 x auxiliary relay outputs - expandable up to 512
• Manage up to 4 doors with the controller - expandable up to 128
• Manage up to 32 lift cars and 96 lift buttons
• Connect up to 8 SIFER readers to the controller - expandable up to 256
• Connect up to 64 Wiegand readers via SLAM’s on the RS-485 LAN
• RJ45 - 10/100 ethernet port
• RS-485 sub-LAN port
• RS-485 reader-LAN port
• USB port for connection of WiFi adapter & T4000 alarm communicator
• Supports 10,000 users (firmware 2.0.0+

Low Profile Enclosure

Cabinet dimensions: 252 (L) x 358 (W) x 85 (D) mm
• Tamper switch and bracket included
• Conduit access is provided by “punch out” holes in the top and bottom of the enclosure

EliteX Keypad

• Clear and easy to read 2-line OLED display
• Programmable backlight brightness suitable for bright or low-light environments
• Stylishly designed slimline surface mount with neutral colours that will look great in any environment
• Backlit rubberised keypad provides a user-friendly tactile feel
• Eight LEDs provide area status, door functions, alarms and other conditions via programming options
• Instant help text available anytime, at the press of a key
• Four ‘arrow’ keys provide quick and convenient access to menu options
• Zone inputs and auxiliary outputs provided for connection of local I/O devices
• Programmable panic key and duress option
• Built-in module locater buzzer
• Tamper monitored housing
• Compatible with Integriti, Inception & Concept 4000 systems

Warranty

2 Year Warranty on Inception Security systems.
