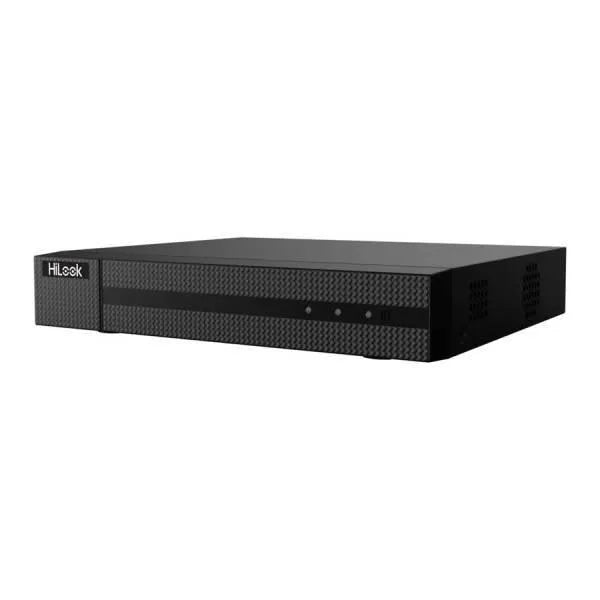

HiLook 16 Channel Digital Video Recorder, DVR-216U-M2

Name: HiLook 16 Channel Digital Video Recorder, DVR-216U-M2
SKU: DVR-216U-M2
Price: 574.99 AUD

SKU DVR-216U-M2

by HiLook

Availability:

Out of stock

Deep learning based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
Audio via coaxial cable
Up to 24-ch IP camera inputs (up to 8 MP)
Up to 8 MP@8 fps encoding capability

HiLook 16 Channel Digital Video Recorder | No Hard Drive

Sold out

$770.49

$770.49 - $770.49

$770.49

$574.99

$574.99 - $574.99

$574.99

Quantity

Shipping & Refunds

Up to 16 channel HD analogue cameras can be connected to the HiLook digital video recorder, includes two bays for hard disk drive, no hard drive included.

Deep learning based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video inputs
Audio via coaxial cable
Up to 24-ch IP camera inputs (up to 8 MP)
Up to 8 MP@8 fps encoding capability

Motion Detection 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Video And Audio
IP Video Input
8-ch (up to 24-ch)

Enhanced IP mode on:

16-ch (up to 32-ch), each up to 4 Mbps

Up to 8 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
16-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
AHD Input5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
HDCVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
CVBS InputPAL/NTSC
HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ)

16-ch via coaxial cable
Video Output ModeHDMI/VGA simultaneous output
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
Synchronous Playback16-ch

Network
Total Bandwidth128 Mbps
Remote Connection128
Network Protocol TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface

Not sure which HiLook camera is right for you?

Compare camera types, resolution, night vision, intelligent detection, active deterrence and PTZ options in our HiLook CCTV Buying Guide.

HiLook security products are covered by a 3 year Manufacturer Warranty.
Exclusion are labour for installed by others.
CTC Communications provides a 1 year warranty on labour when the security product is installed by our Team.
Freight Cost is excluded from Warranty, unless the product is dead upon arrival.
