Best For: Coastlines, docks, chemical plants, marine facilities and other corrosive environments needing 8MP / 4K surveillance, Smart Hybrid Light, AcuSense analytics, two-way audio and top-level anti-corrosion protection.

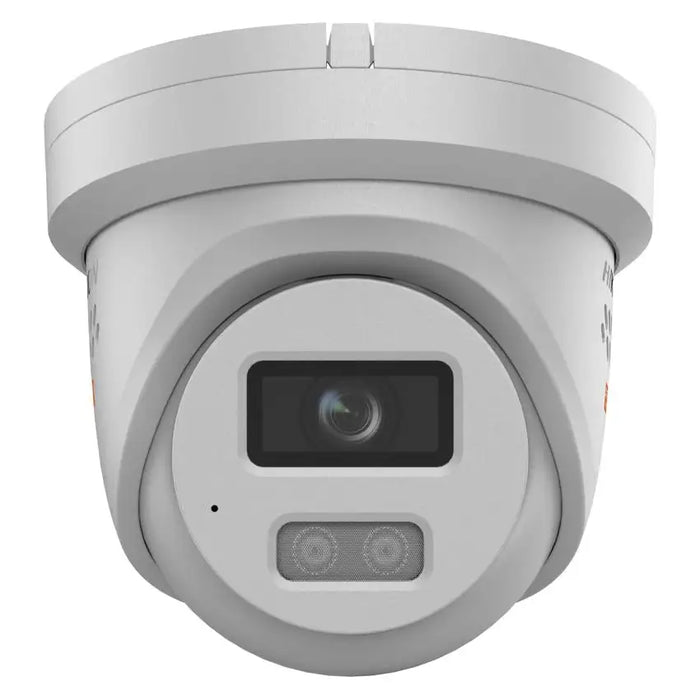

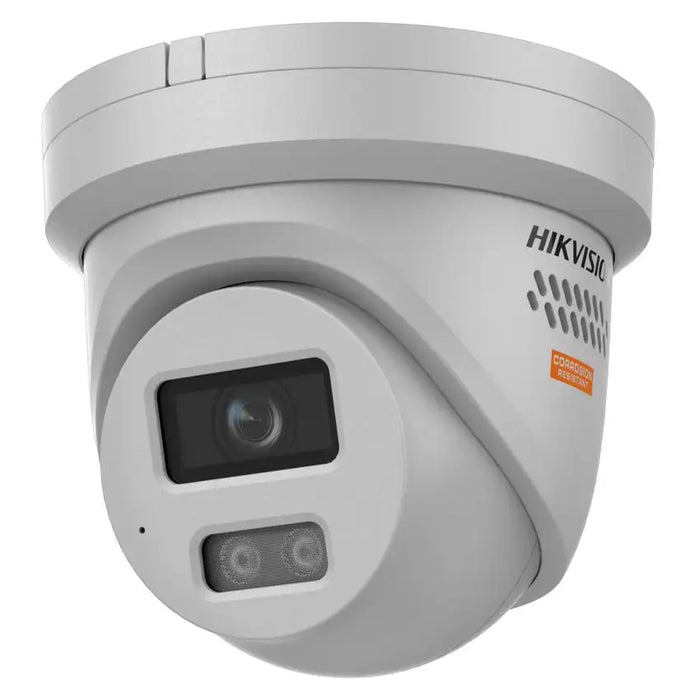

Hikvision DS-2XC3386G0H-LISU/SL (PA) 8MP Polymer Anti-Corrosion Turret Camera
The Hikvision DS-2XC3386G0H-LISU/SL (PA) is an 8MP / 4K fixed turret network camera engineered for harsh and corrosive environments. Its polymer enclosure carries Hikvision's top-level anti-corrosion classification with NEMA 4X and C5 protection, while IP68 weather resistance and IK10 impact resistance help protect the camera in demanding outdoor and industrial installations.
Alongside its rugged construction, the camera provides 3840 × 2160 imaging, Smart Hybrid Light, AcuSense human and vehicle classification, built-in two-way audio, active strobe and audible warning, 120dB WDR and H.265+ compression.
Key Features of the DS-2XC3386G0H-LISU/SL (PA)
-
8MP / 4K resolution up to 3840 × 2160
-
Polymer anti-corrosion enclosure for aggressive environments
- NEMA 4X and C5 anti-corrosion protection
- IP68 water and dust resistance
- IK10 vandal resistance
-
Smart Hybrid Light with IR and white-light illumination up to 30m
-
AcuSense human and vehicle classification based on deep learning
-
120dB WDR for scenes with strong backlighting
-
Built-in microphone and speaker for two-way audio
- Active strobe light and audible warning
-
Audio and alarm interfaces for system integration
-
H.265+ compression for efficient recording and storage
Top-Level Anti-Corrosion Protection
Hikvision classifies this model as providing top-level anti-corrosion protection. It is designed for locations where professional corrosion resistance is essential, including coastlines, docks and chemical plants.
The polymer housing, NEMA 4X rating and C5 anti-corrosion classification make it a much stronger choice than a standard metal camera for salt-laden air, chemical exposure and other aggressive environments.
Smart Hybrid Light
Smart Hybrid Light combines infrared and white-light illumination, with a range of up to 30 metres. This allows the camera to use discreet IR monitoring or visible white light depending on the scene and security requirements.
AcuSense Human & Vehicle Classification
Deep-learning analytics help distinguish people and vehicles from other movement in the scene. This can reduce unnecessary alarms from environmental activity and make event review more relevant when paired with a compatible Hikvision recording system.
Active Deterrence & Two-Way Audio
The DS-2XC3386G0H-LISU/SL (PA) includes a built-in microphone, built-in speaker, strobe light and audible warning. When configured appropriately, these features support live communication and proactive deterrence in addition to recording.
Ideal Applications
- coastal properties and waterfront facilities
- docks, wharves and marine environments
- chemical plants and processing facilities
- industrial sites exposed to corrosive atmospheres
- car parks and external plant areas near the coast
- commercial sites requiring rugged outdoor surveillance
Technical Specifications
| Brand |
Hikvision |
| Model |
DS-2XC3386G0H-LISU/SL (PA) |
| Camera Type |
Polymer anti-corrosion fixed turret network camera |
| Image Sensor |
1/1.8" Progressive Scan CMOS |
| Maximum Resolution |
3840 × 2160 (8MP / 4K) |
| Minimum Illumination |
Colour: 0.002 Lux @ F1.0, AGC ON; B/W: 0.0001 Lux @ F1.0, AGC ON; 0 Lux with light/IR |
| Lens Options |
2.8mm or 4mm fixed, F1.0 |
| 2.8mm Field of View |
108.8° H / 56.4° V / 134.3° D |
| 4mm Field of View |
93.3° H / 47.2° V / 114.2° D |
| Supplement Light |
IR and white light, up to 30m |
| Wide Dynamic Range |
120dB WDR |
| Smart Detection |
Human and vehicle classification; perimeter protection analytics |
| Audio |
Built-in microphone, built-in speaker, two-way audio, audio input/output |
| Alarm |
1 alarm input / 1 alarm output |
| Active Deterrence |
White strobe light and audible warning |
| Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Power |
12V DC or PoE IEEE 802.3af, Class 3 |
| Material |
Polymer |
| Protection |
IP68 / IK10 / NEMA 4X / C5 anti-corrosion |
| Operating Temperature |
-30°C to 60°C |
| Dimensions |
138.63 × 138.63 × 132.74mm |
| Weight |
Approx. 670g |
| CTC SKU |
DS-2XC3386G0H-LISU/SL |
Build a Complete Hikvision CCTV System
Pair the DS-2XC3386G0H-LISU/SL (PA) with a compatible Hikvision NVR for recording, playback and storage.
You can also compare other Hikvision turret cameras or browse Hikvision AcuSense products.
Professional Hikvision CCTV Installation
CTC Communications provides professional Hikvision CCTV installation across Sydney, including camera positioning, network cabling, NVR selection, storage configuration, Hik-Connect setup, active-deterrence configuration and system commissioning. For corrosive environments, correct mounting hardware, cable protection and installation practices are especially important.
Need an Anti-Corrosion Hikvision Camera Professionally Installed?
CTC Communications can design and install a Hikvision CCTV system suited to coastal, industrial and other demanding environments across Sydney.
