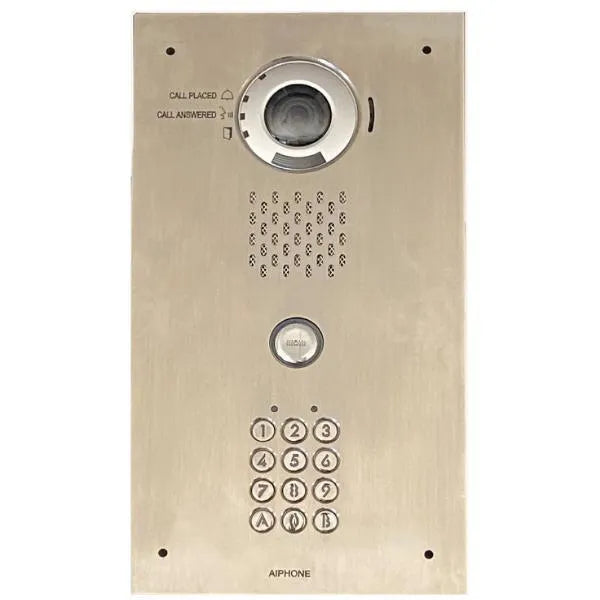

Aiphone IP 1 Button Video Door Station Apartment, IX-DVF-AC

Aiphone IX-DVF-AC IP 1 Button Video Door Station Apartment

SKU APHIX-DVF-AC
by Aiphone
Availability:
Out of stock
Sold out
$4,868.40
$4,868.40 - $4,868.40
$4,868.40
$3,668.00
$3,668.00 - $3,668.00
$3,668.00

Shipping & Refunds

Shipping Refund Policy

The IX-DVF-AC is a SIP compatible IP Video door station, it is vandal resistant, features a stainless steel faceplate and is a flush mounted design with HID multiclass reader.

Model: IX-DVF-AC Door Station

The Aiphone IP Video Door station is compatible with the IX series.

SIP - Peer to Peer- Backwards Compatible

Door Station Features

  • SIP 2.0 compliant
  • 1.23 megapixel fixed colour video camera
  • White LED for low light illumination
  • ONVIF Profile S compliant
  • Camera vertical adjustment +15º, 0º, or -8º (manual)
  • Weather and vandal resistant (IP65), (IK08)
  • 2 contact outputs on the audio/camera section
  • RJ45 in/out with PoE pass through (802.3 at/af Type 2 PoE+)

    Shop CTC Communications for best deals on Aiphone Door Stations

    Specifications

    • Material: 306 Marine Grade Stainless Steel
    • Dimension: Panel 284mm H x 178mm W (Back box 270mm H x 148mm W x 54.9mm D)
    • Power Source: PoE (IEEE 802.3af class 0)
    • Power Draw: 52.8W
    • Camera: ⅓" CMOS 1.23 megapixel
    • Min. illumination: 5 lux
    • Audio Codec: G.711 (µ-law, A law) G.722
    • Protocols: IPv4, IPv6, TCP, UDP, SIP HTTP, HTTPS,
    • RTSP, RTP , RTCP, IGMP, MLD, SMTP, FTP,
    • DHCP, NTP, DNS
    • Port Security: IEEE 802.1X
    • Operating Temp: -40° ~ 140°F (-40° ~ 60°C)
    • Protection Rating: IP 65
    • Power Source: 12-24V AC or 12-24V DC
    • Consumption: Max. 100mA
    • Output Rating: 2 Form C dry contacts, 24V AC/DC,
    • 3A (resistive), 1A (inductive)
    • Wiring: Two conductors
    • Operating Temp: -4° ~ 140°F (-20° ~ 60°C)
    • Protection Rating: IP54

    Downloads

    Aiphone IX-DVF-AC Datasheet

    Aiphone Intercom Warranty
    • Aiphone products are covered by a 2 year Manufacturer Warranty.
    • Exclusion are labour for products installed by others.
    • CTC Communications provides a 1 year Warranty on labour when the security product is installed by our Team.
    • Freight Cost is excluded from Warranty, unless the product is dead upon arrival.
    • not covered for surge faults
