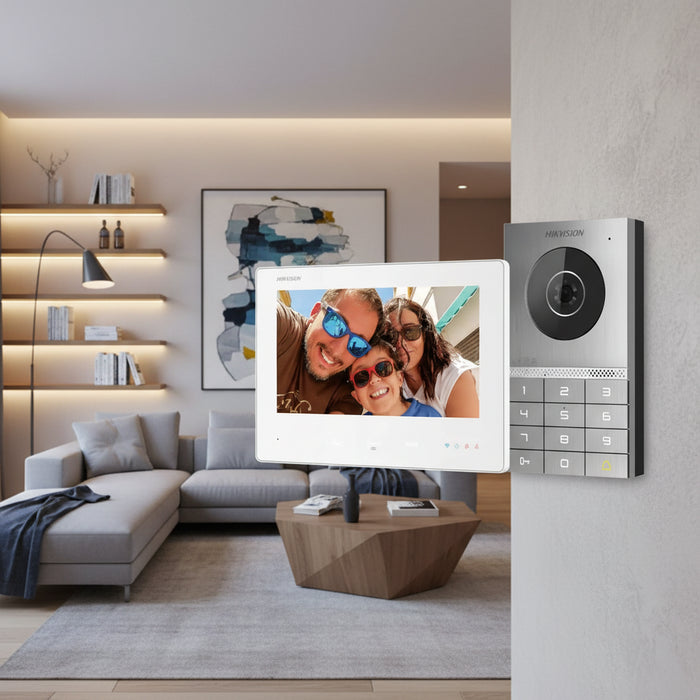

Hikvision 2-Wire 2MP HD Villa Intercom Kit, DS-KIS708EY

Name: Hikvision 2-Wire 2MP HD Villa Intercom Kit, DS-KIS708EY
SKU: DS-KIS708EY
Price: 521.55 AUD

SKU DS-KIS708EY

by Hikvision

Availability:

in stock, ready to be shipped

Hikvision 2-Wire 2MP HD Villa Intercom Kit pairing the HIK-KV7413EYIME2 call-button door station with the white HIK-KH7300EYWE2W 7-inch Wi-Fi touchscreen. View and speak with visitors, use compatible M1 cards and control a connected door or gate from the monitor or Hik-Connect app.

2MP HD camera with WDR and infrared lighting
7-inch capacitive touchscreen with 1024 × 600 resolution
Compatible M1 card access
Two-lock control and two-way audio
Hik-Connect remote calling and unlocking
IP65 weather resistant and IK08 impact rated door station

A compatible distributor, power supply, TF card and lock hardware are required and sold separately unless stated otherwise.

Save 20%

$650.00

$650.00 - $650.00

$650.00

$521.55

$521.55 - $521.55

$521.55

Quantity

Shipping & Refunds

Shipping Refund Policy

Best For

Property TypeHomes, villas and townhouses

System TypeHikvision 2-wire HD EY series

Entry AccessPIN, M1 card, monitor and app

InstallationComplete surface-mount kit

Complete Two-Wire Villa Intercom Kit with Keypad Access

The Hikvision DS-KIS708EY 2-Wire 2MP HD Villa Intercom Kit combines the DS-KV7023EY-IME2 keypad door station with the white DS-KH7300EY-WTPE2 7-inch indoor touchscreen. It provides clear visitor video, two-way communication and flexible entry control by PIN, M1 card, indoor monitor or the Hik-Connect app.

This ready-to-install package includes the door station, indoor monitor, surface-mount back box and rain shield, 32GB memory card and the required kit power supply hardware. In the standard one-door, one-monitor arrangement, the indoor station powers the outdoor station over the two-wire connection, so a separate DS-KAD distributor is not required.

Request a Quote View Installation Options

Complete powered kit: The power supply/adaptor required for the supplied intercom equipment is included. A separate power supply may still be required for an electric strike, magnetic lock or other door hardware, depending on the selected locking device.

What’s Included?

Keypad Villa Door Station

1 × DS-KV7023EY-IME2

Surface-mounted 2-wire HD door station with a 2MP camera, 12-button keypad, M1 card reader, two-way audio and control for up to two compatible locks.

7-Inch White Indoor Monitor

1 × DS-KH7300EY-WTPE2/White

Direct-power DIY indoor station with a 7-inch capacitive touchscreen, 1024 × 600 resolution, built-in 2.4GHz Wi-Fi and Hik-Connect support.

Mounting and Weather Accessories

Surface back box and rain shield

Matching installation accessories are supplied for the outdoor door station.

Power and Storage

Kit power supply/adaptor and 32GB memory card

The supplied power hardware operates the intercom kit, while the included card supports local visitor image storage.

Key Features

Complete two-wire kit
Power, video, audio and data use two conductors.
2MP entrance video
Clear visitor identification with WDR and IR lighting.
Wide-angle camera
135° horizontal and 85° vertical field of view.
7-inch touchscreen
1024 × 600 capacitive colour display.
PIN-code access
12-button physical keypad for authorised entry.
M1 card reader
Supports compatible access cards and fobs.
Hik-Connect access
Answer calls and release a connected entrance remotely.
Two-lock control
Suitable for compatible door and gate arrangements.
IP65 and IK08
Weather and impact protection at the entrance.

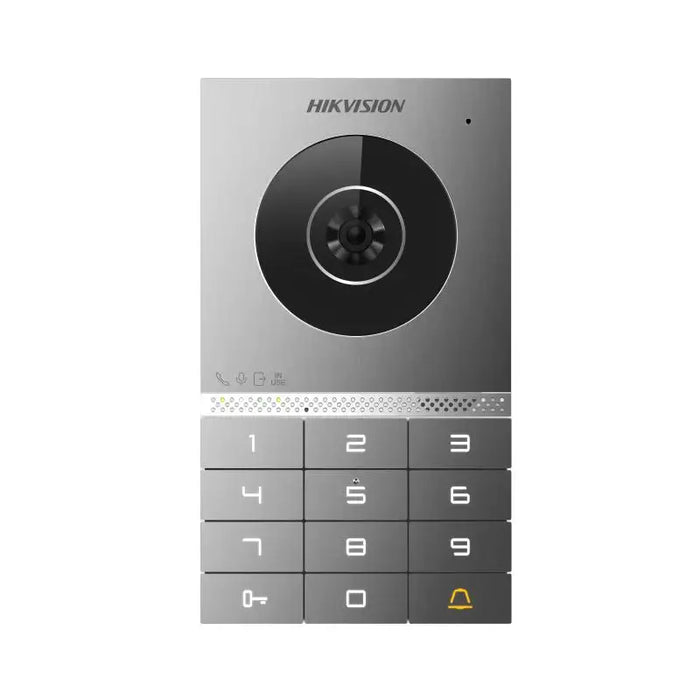

DS-KV7023EY-IME2 Door Station

The outdoor station combines HD video calling with keypad and card-based access in a durable surface-mounted unit.

2MP HD camera with WDR
135° horizontal and 85° vertical viewing angle
Infrared supplementary lighting
12-button physical keypad for PIN entry
Built-in M1 card reader
Capacity for up to 2,000 users
Built-in microphone and loudspeaker
Noise suppression and echo cancellation
Two lock-control outputs
Exit-button, door-contact, alarm and tamper connections
316L stainless-steel front
IP65 weather resistance and IK08 impact protection

DS-KH7300EY-WTPE2 Indoor Monitor

The direct-power indoor station supplies the standard two-wire link and provides straightforward visitor call handling, live viewing and connected door release.

7-inch capacitive TFT touchscreen
1024 × 600 display resolution
Built-in microphone and loudspeaker
Noise suppression and echo cancellation
Three dedicated touch buttons
Up to four custom virtual buttons
Built-in 2.4GHz Wi-Fi
Hik-Connect support
TF card support up to 128GB
Supports up to three linked indoor extensions

Hik-Connect Smartphone Control

Connect the indoor monitor to a suitable 2.4GHz Wi-Fi network and pair the system with Hik-Connect for flexible visitor and entry management.

Receive visitor calls on a compatible smartphone
View live video from the entrance
Speak with visitors remotely
Release a correctly connected door or gate
Stay connected when away from the indoor monitor

PIN, M1 Card and Two-Lock Control

The door station supports PIN codes and compatible M1 cards or fobs for authorised entry. Its two lock-control outputs can support a pedestrian gate and door, or another compatible dual-entry arrangement, subject to the selected locking hardware and system design.

Lock-power note: The intercom power supply is included, but electric locking hardware may require its own appropriately rated power supply. Electric strikes, magnetic locks, gate controllers, exit buttons, door contacts and associated cabling are not included unless specifically stated.

Simple Direct-Power Two-Wire Design

The DS-KIS708EY is designed as a straightforward one-residence kit. The supplied 24VDC power adaptor connects to the DS-KH7300EY-WTPE2 indoor station, which powers and communicates with the DS-KV7023EY-IME2 door station over the two-wire link.

Power supply/adaptor included with the kit
No separate DS-KAD distributor required for the standard kit layout
Two suitable conductors between the monitor and door station
Supports plug-and-play installation and different supported connection topologies
Reliable 2.4GHz Wi-Fi required for Hik-Connect functions
Professional installation is recommended

Two-Wire Installation Requirements

Two-wire technology can simplify installation and may suit selected intercom upgrades, but existing cabling must be assessed before reuse. Conductor material, cable size, condition, joins, route length, polarity and electrical interference can all affect performance.

CTC Communications offers Hikvision intercom installation across Sydney, including cable assessment, programming, app setup and compatible lock integration.

Ideal Applications

Homes and Villas

See, speak with and admit visitors from the indoor touchscreen or a compatible smartphone.

Townhouses

A complete entry solution for an individual residence with a suitable two-wire route.

Intercom Upgrades

Modernise suitable existing two-core cabling after a professional cable assessment.

Gated Properties

Combine video calling, PIN access and M1 card entry with compatible door or gate release.

Technical Specifications

Hikvision DS-KIS708EY intercom kit technical specifications
Specification	Door Station	Indoor Monitor
Model	DS-KV7023EY-IME2	DS-KH7300EY-WTPE2/White
Camera / display	2MP HD camera	7-inch capacitive TFT touchscreen
Resolution	2MP	1024 × 600
Viewing angle	135° horizontal; 85° vertical	Not applicable
Audio	Built-in microphone and loudspeaker; noise suppression and echo cancellation	Built-in microphone and loudspeaker; noise suppression and echo cancellation
Connection	Two-wire HD interface	Two-wire HD interface; 2.4GHz Wi-Fi
Access methods	PIN, compatible M1 card, indoor station and Hik-Connect	Indoor-screen and Hik-Connect door release
Lock control	2 outputs: 1 relay up to 30VDC, 2A; 1 DC pulse output	Control through connected door station; 1 relay up to 30VDC, 1A
Storage	Not applicable	TF card up to 128GB; 32GB card included with kit
Power	48V from DS-KH7300EY-WTPE2 over two wires, or 12VDC local input	24VDC, 2.5A; kit adaptor included
Power consumption	Up to 6W	Up to 6W
Dimensions	165 × 95 × 25mm	190.2 × 138.2 × 20mm
Operating temperature	-40°C to 60°C	-10°C to 50°C
Installation	Outdoor surface mounting	Indoor surface mounting
Protection	IP65 and IK08	Indoor use

Specifications and product inclusions may change without notice. Confirm current stock, supplied power-adaptor standard, cabling and lock-power requirements before ordering.

View the Hikvision DS-KIS708EY manufacturer information

Kit Inclusions at a Glance

1 × DS-KV7023EY-IME2 2MP keypad villa door station
1 × DS-KH7300EY-WTPE2/White 7-inch Wi-Fi indoor monitor
1 × surface-mount back box and rain shield set
1 × 32GB memory card
Required kit power supply/adaptor hardware

Locking hardware, lock power, M1 cards or fobs, site cabling and installation are separate unless specifically included in the selected product option or quotation.

Compare the Call-Button and Keypad Kits

Comparison of Hikvision KV7413EY and DS-KIS708EY intercom options
Feature	KV7413EY Call-Button Option	DS-KIS708EY Keypad Kit
Door station	Call-button model	DS-KV7023EY-IME2 12-button keypad model
PIN-code access	No	Yes
M1 card access	Yes	Yes
Camera	2MP; 135° horizontal	2MP; 135° horizontal
Best for	Simple calling and card access	PIN, card and visitor calling
