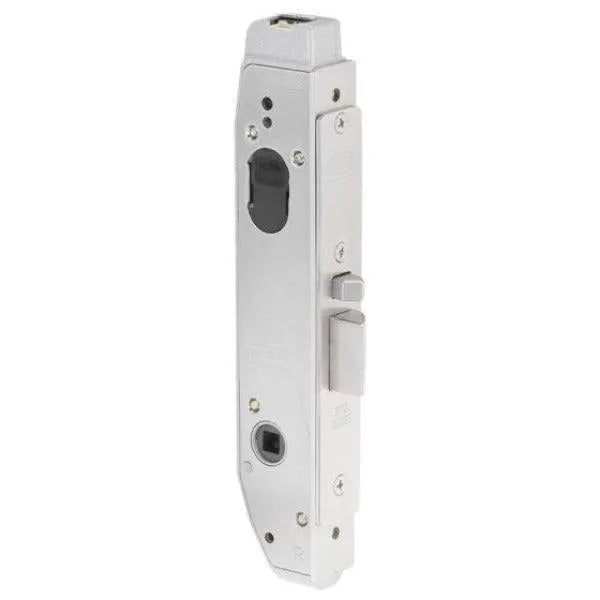

Assa Abloy Lockwood 4782ELSS Slimline Electric Mortice Lock Monitored Fail Safe

4782EL Series Short Backset Electric Mortice Locks

The 3782EL is a fully field configurable primary electric mortice lock providing significant benefit over previous models. The unique motor-driven operation, high-security monitoring capabilities and on-board door status LEDs provide a significant advancement in the specification, distribution, installation and servicing of electric mortice locks.

Model: 4782ELSS

Features

• Variable voltage from 9 – 28VDC
• Simple in-field selection of power to lock or power to open
• Full range of monitoring including Request to Exit (REX), Deadlatch, Door position, Key Override Monitoring (KOM) and locked status
• On-board door status LEDs improves installation and reliability
• Unique functions for the reader in / reader out applications which allow the external side to fail securely while the internal side fails safe allowing free egress
• Motor driven provides lower power usage in power to lock applications
• 3 wire control means the power can be supplied independently of the locking control signal making the lock less susceptible to issues associated with the voltage drop across long wiring runs

Downloads

Assa Abloy Lockwood Slimline Electric Mortice Lock Monitored Fail Safe, 4782ELSS Datasheet
