Rosslare ME-1515A Metal Enclosure Holds 2 Expansion Boards

Advanced Scalable Networked Access Platform

The AC-825IP is a 6-door (4 Wiegand format & 2 OSDP readers) networked
access controller suitable for a medium-scale to the high-scale security system. The controller comes with one onboard expansion slot and can be further
expanded by connecting up to 12 expansion boards via OSDP. Using D-805 door
expansion boards, a single AC-825IP can handle up to 58 doors and 100,000
users. Driven by AxTraxNG™ – Rosslare’s powerful and flexible software – the
system provides a modular and expandable solution for commercial and
institutional needs.

Model: ME-1515A

Main Features:

• Up to 58 doors, 100,000 users, and 500,000 history log entries (FIFO) per ACU
• Onboard TCP/IP networking with data encryption to an AxTraxNG server, bi-directional push communication for enhanced data transmission
  speed and reliability
• Supports up to 6 doors (4 Wiegand format & 2 OSDP readers), each with 2 inputs and 1 output
• 4 auxiliary inputs and 2 auxiliary outputs
• Supports 2 OSDP readers

• One onboard expansion slot and an additional 12 expansion boards via OSDP (R/S/D/P-805)
• R-805 – 16 outputs
• S-805 – 16 inputs
• D-805 – 4-door expansion
• P-805 – 16 inputs and 8 outputs

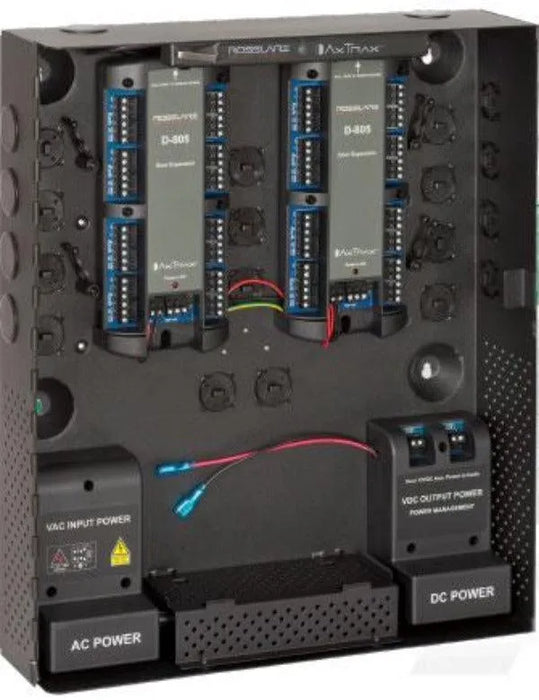

• ME-1515 metal enclosure holds 2 expansion boards or an AC-825IP board with a C14 power plug and supports Pull-Safe™ cable locks, for secured wiring
• Real-time clock keeps time for up to 2 weeks without power (no batteries to replace)
• The spacious and lockable metal enclosure features cable twist locks and zip-tie anchors for better cable management
• DIN rail mounting option for space-saving with no additional enclosure needed
• Power management board indicates battery and power status
• Revolutionary enclosure with illumination bar that lights up when the enclosure is opened, tamper sensing, and power status LED

Downloads

Rosslare Metal Enclosure Holds 2 Expansion Boards, ME-1515A Datasheet
