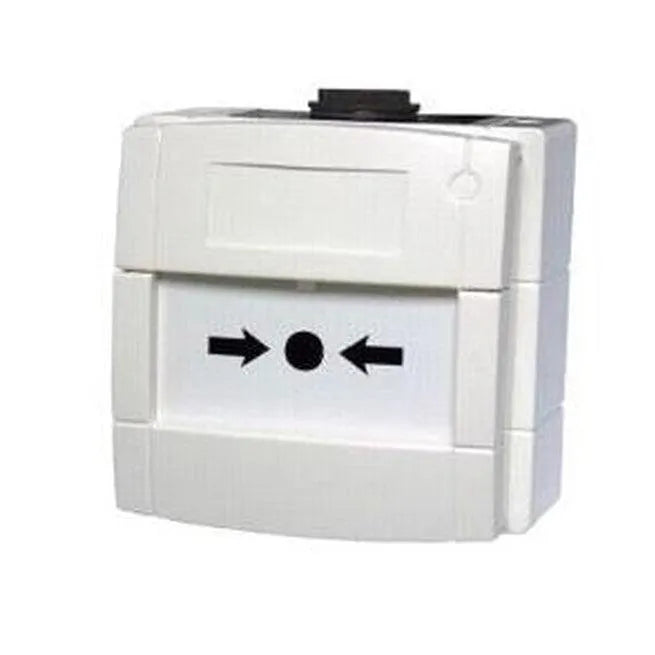

KAC White MCP Emergency Break Glass, door release, IP67, DP, SUO633

KAC White MCP Emergency Break Glass, door release, IP67, DP

Model : SU0633

MCP Indoor Call Point Range Double Pole Changeover Contact Model KAC Break Glass IP67 Rated - White

Specification

• Cable Termination: 0.5-2.5mm2
• Maximium Voltage: 30VDC
• Switch Rating: 2 Amps
• Environmental Specification
• Humidity: 0-95% non-condensing
• Operating Temperature: -30C to +70C
• Storage Temperature: -30C to +70C
• Ingress Protection (IP) Rating: IP67
• Mechanical Specification
• Material: PC/ABS
• Weight: 240g
• P67
• Double Pole Double Throw
• The only choice for an IP Rated break glass

All WCP Outdoor Call Point products also help preserve the integrity of the overall system as illegal removal of the product lid will result in the call point operating and the system going in to alarm. Full compliance with the latest standards is essential and the new WCP indoor call point range is fully approved to the latest EN54-11 standard.

The WCP4A product version is supplied with a double pole changeover set of contacts. The product utilizes two terminal blocks and wiring to the relevant terminals on these terminal connector blocks provides either a normally open or normally closed operation.
