Aiphone Two Door Adaptor for Jo Series, JOW-2D

Aiphone JOW-2D Two Door Adaptor for Jo Series

Name: Aiphone JOW-2D Two Door Adaptor for Jo Series
SKU: APHJOW-2D
Price: 475.0 AUD

SKU APHJOW-2D

by Aiphone

Availability:

In stock

Allows a second door station to be connected to any JO Series system
Can be added to existing systems for expansion
Includes normally open contacts to activate a strike for unlocking the door
Power 18V DC (supplied by JO Series master station)
Consumption 100mA (max), 18mA (standby)
Relay Outputs 24V DC, 1A (JO-1MDW)24V DC, 500mA (JO-1MD, JO-1FD)
Dimensions 4-¼" H x 4-13⁄16" W x 2-⅜" D

Save 29%

$669.99

$669.99 - $669.99

$669.99

$475.00

$475.00 - $475.00

$475.00

Quantity

Shipping & Refunds

Shipping Refund Policy

The JOW-2D is an two door adaptor for the JO Series video intercom system that will allow two video door stations to be on the system.

Model: JOW-2d

FEATURES

Allows a second door station to be connected to any JO Series system
Can be added to existing systems for expansion
Includes normally open contacts to activate a strike for unlocking the door

SPECS

Power 18V DC (supplied by JO Series master station)
Consumption 100mA (max), 18mA (standby)
Relay Outputs 24V DC, 1A (JO-1MDW) / 24V DC, 500mA (JO-1MD, JO-1FD)
Operating Temperature 32° ~ 104° F (0° ~ 40°C)
Dimensions 4-¼" H x 4-13 16" W x 2-?" D

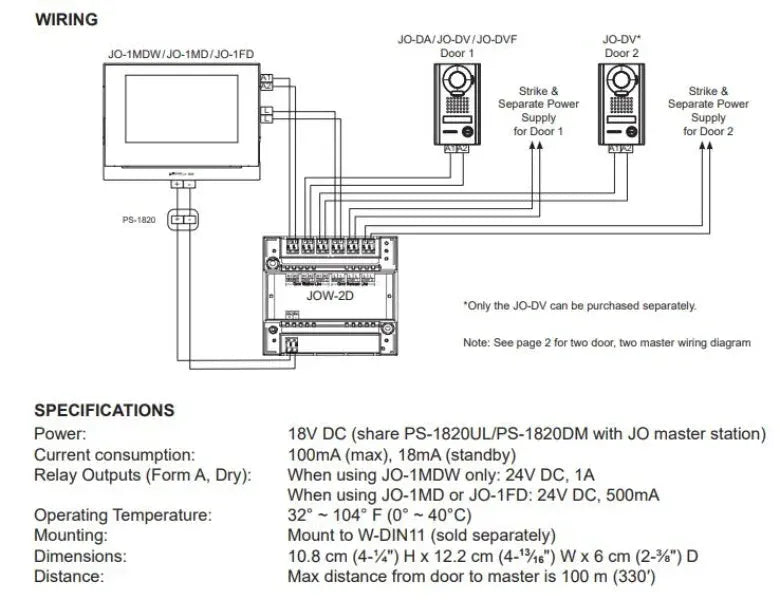

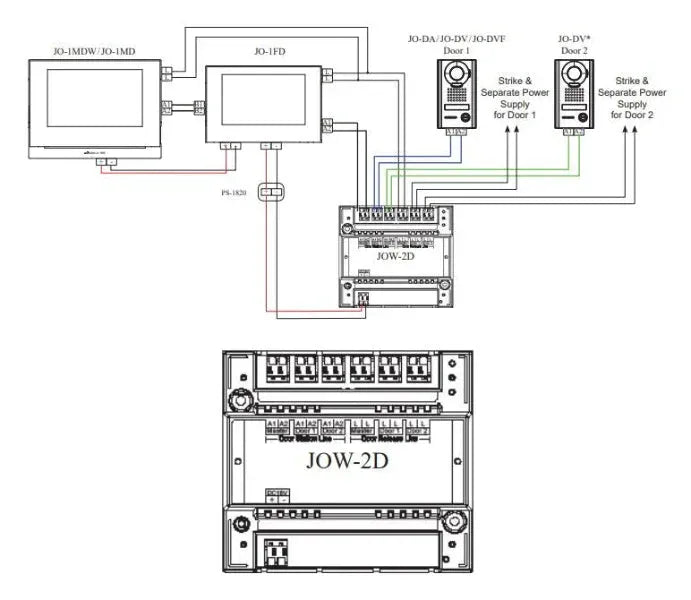

See attached wiring diagram for more information

The adaptor has inputs for two JO video door stations and outputs to control door release for each of those door stations. When either door station calls in, that image will be displayed on the inside station(s).

The person inside answers the call, and when pushing the door release button, only the associated door release mechanism will trigger.

If one door station is in use, the call button on the other door station will not activate a call-in.

Shop CTC Communications for best deals on Aiphone Intercom Kits

Aiphone Intercom Warranty

Aiphone products are covered by a 3 year Manufacturer Warranty.
Exclusion are labour for products installed by others.
CTC Communications provides a 1 year Warranty on labour when the security product is installed by our Team.
Freight Cost is excluded from Warranty, unless the product is dead upon arrival.
