Best For: External gates, exposed entrances, commercial buildings and access-controlled doors requiring IP68 weather resistance, 570kg holding strength and lock status monitoring.

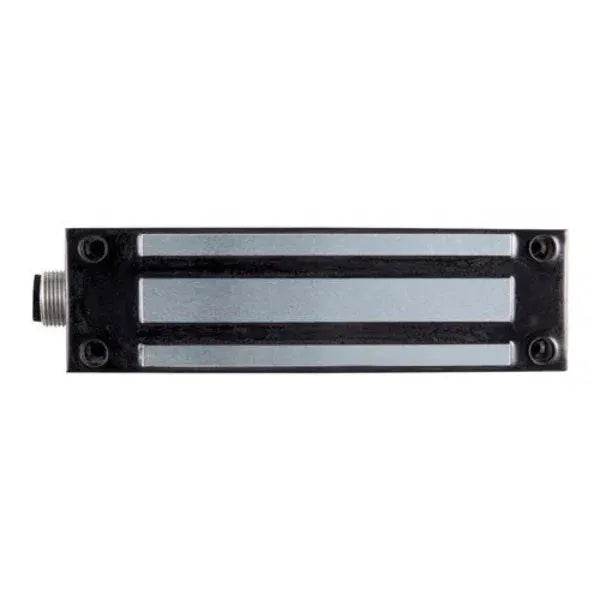

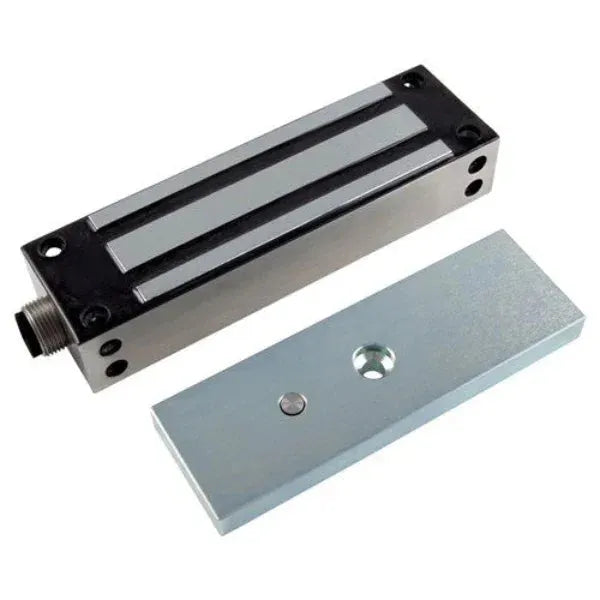

FSH FEM5400WM Weather-Resistant Monitored Electromagnetic Lock – 570kg, IP68
The FSH FEM5400WM Weather-Resistant Electromagnetic Lock is a heavy-duty, monitored magnetic door lock designed for external access control applications. Its IP68-rated stainless steel housing protects the lock against dust and water ingress, making it suitable for entrances exposed to wind, rain and demanding weather conditions.
With a tested holding strength of up to 570kg, dual-voltage 12/24V DC operation and a built-in Lock Status Sensor (LSS), the FEM5400WM provides reliable fail-safe locking and system feedback for compatible gates and doors.
The lock can be operated through access control readers, PIN pads, keypads, intercom systems, fob readers, exit devices and other compatible door controllers. A five-year mechanical and electronic manufacturer warranty provides additional confidence for professional installations.
Key Features of the FSH FEM5400WM
-
IP68 weather-resistant construction for exposed external installations
- Tested holding strength of up to 570kg
- Monitored model with Lock Status Sensor
- Fail-safe electromagnetic locking operation
- Field-selectable 12V or 24V DC input
- 500mA current draw at 12V DC
- 250mA current draw at 24V DC
- Durable stainless steel housing
- No residual magnetism after power is removed
- Surface-mounted single-door magnetic lock
- Supplied with a one-metre connection cable
- Tested to applicable Australian and New Zealand standards
- Five-year mechanical and electronic warranty
IP68 Weather Resistance
The FEM5400WM is specifically designed for external applications exposed to wind and weather. Its IP68-rated housing provides a high level of protection against dust and water ingress when the lock is correctly installed.
This makes the FEM5400WM suitable for outdoor gates, exposed entry doors and other locations where a standard indoor magnetic lock may not provide sufficient environmental protection.
Correct cable entry, sealing, drainage and mounting remain important for an external installation. The lock should be installed according to the manufacturer’s instructions to maintain its weather-resistant performance.
Lock Status Monitoring
The built-in Lock Status Sensor provides feedback about whether the magnet and armature plate are correctly engaged. The monitoring output can be connected to a compatible access controller, security system or building management platform.
Lock status monitoring can help identify an incorrectly aligned armature plate, a door that has not secured correctly or a lock that is no longer achieving proper magnetic contact.
The FEM5400WM provides lock status monitoring only. If separate door open or closed monitoring is required, a compatible door-position reed switch may also be needed.
Fail-Safe Magnetic Lock Operation
The FEM5400WM operates as a fail-safe or Power To Lock magnetic lock. The magnet secures the door while electrical power is supplied and releases when power is removed.
This operation is commonly used on access-controlled entrances requiring release through an authorised credential, request-to-exit device, emergency door-release button or fire-system interface.
Emergency egress, power supply and fire-system requirements must be considered as part of the complete access control design.
No Residual Magnetism
The FEM5400WM is designed without residual magnetism. Once power is removed, the armature plate releases cleanly rather than remaining lightly attached to the magnet.
This provides smoother door operation, reduces unnecessary stress on the door hardware and helps prevent delayed release after access has been granted.
Technical Specifications
| Brand |
FSH |
| Model |
FEM5400WM / FSHFEM5400WM |
| Series |
FEM5400 Series |
| Product Type |
Weather-resistant single electromagnetic lock |
| Monitoring |
Lock Status Sensor reed switch |
| Monitoring Contact Rating |
Maximum 3W, 0.25A at 30V DC |
| Operation |
Fail safe / Power To Lock |
| Holding Strength |
Tested up to 570kg |
| Input Voltage |
12V or 24V DC, field selectable |
| Current Consumption |
500mA at 12V DC / 250mA at 24V DC |
| Environmental Rating |
IP68 |
| Mounting |
Surface mount |
| Construction |
Stainless steel housing |
| Magnet Dimensions |
220mm L x 63.5mm W x 41mm D |
| Armature Dimensions |
185mm L x 60.8mm W x 16mm D |
| Connection Cable |
One metre |
| Fire Rating |
Not listed in the current manufacturer specifications |
| Warranty |
Five years mechanical and electronic |
Ideal Applications
The FSH FEM5400WM is suitable for external and demanding access control applications, including:
- External pedestrian gates
- Commercial building entrances
- Apartment and unit complex gates
- Schools and education facilities
- Warehouses and industrial premises
- Car park pedestrian entrances
- Exposed staff-access doors
- Outdoor intercom-controlled entrances
- Sites requiring monitored magnetic locking
Mounting and Door Compatibility
The FEM5400WM is a surface-mounted single magnetic lock. The required mounting arrangement depends on the door or gate material, frame profile and opening direction.
Compatible accessories include the FSH AMZB5400 L&Z bracket and mounting options for suitable frameless glass doors. Confirm the door, gate and frame measurements before ordering brackets or other accessories.
Professional Installation Recommended
The FEM5400WM should be installed by a qualified security, access control or locksmith professional. Correct alignment between the magnet and armature plate is essential for achieving the tested holding strength and reliable Lock Status Sensor operation.
The installer should also confirm the power supply capacity, cable size, voltage selection, weather sealing, access controller, emergency release devices and applicable egress requirements.
Why Choose the FSH FEM5400WM?
- IP68 construction for exposed external applications
- Strong 570kg tested holding capacity
- Lock Status Sensor for access control feedback
- Flexible 12V or 24V DC operation
- Durable stainless steel housing
- No residual magnetism for clean release
- Five-year mechanical and electronic warranty
