Best For: FSH FES10 and FES10M electric strike installations requiring an extended 75mm lip for deep timber, aluminium or metal door-frame profiles.
FSH FES10-EL75 75mm Extension Lip for FES10 Electric Door Strikes
The FSH FES10-EL75 Extension Lip is a 75mm accessory designed for compatible FSH FES10 and FES10M electric door strikes. It provides additional coverage between the electric strike faceplate and the outside edge of a deep or wide door frame.
The longer extension helps the door latch clear the surrounding frame and enter the strike keeper without rubbing or catching. Its black finish complements the compatible strike and provides a neat result for professional access control installations.
Key Features
-
75mm extension lip for the FSH FES10 Series
- Compatible with the FES10 non-monitored electric strike
- Compatible with the FES10M monitored electric strike
- Designed for deep or wide door-frame profiles
- Provides additional clearance between the latch and frame
- Allows the latch to move freely into the strike keeper
- Helps prevent contact between the latch and surrounding frame
- Suitable for timber, aluminium and metal frames
- Attaches to the strike’s pre-drilled mounting points
- Black finish for a neat professional appearance
Why Use a 75mm Extension Lip?
Some door frames extend significantly beyond the standard electric strike faceplate. Without a sufficiently long lip, the door latch can rub against the frame, catch during operation or damage the surrounding surface.
The FES10-EL75 provides a 75mm extension, making it suitable for deeper frame profiles where a 15mm, 25mm or 50mm extension may not provide enough coverage.
When correctly selected and installed, the extension lip guides the latch into the electric strike jaw while helping protect the door frame and improve the appearance of the installation.
Compatible Electric Strikes
-
FSH FES10: non-monitored ANSI-footprint electric strike
-
FSH FES10M: monitored ANSI-footprint electric strike
The FES10 Series is pre-drilled for compatible extension lips, allowing the FES10-EL75 to be securely attached without modifying the strike’s internal locking mechanism.
Technical Specifications
| Brand |
FSH |
| Model |
FES10-EL75 / FSHFES10-EL75 |
| Product Type |
Electric strike extension lip |
| Extension Length |
75mm |
| Approximate Dimensions |
85mm x 75mm |
| Compatible Models |
FSH FES10 and FES10M |
| Finish |
Black |
| Application |
Additional latch clearance for deep door frames |
| Suitable Frames |
Commonly used with timber, aluminium and metal frames |
| Electrical Connection |
Not required |
| Pack Quantity |
One extension lip |
Selecting the Correct Extension Length

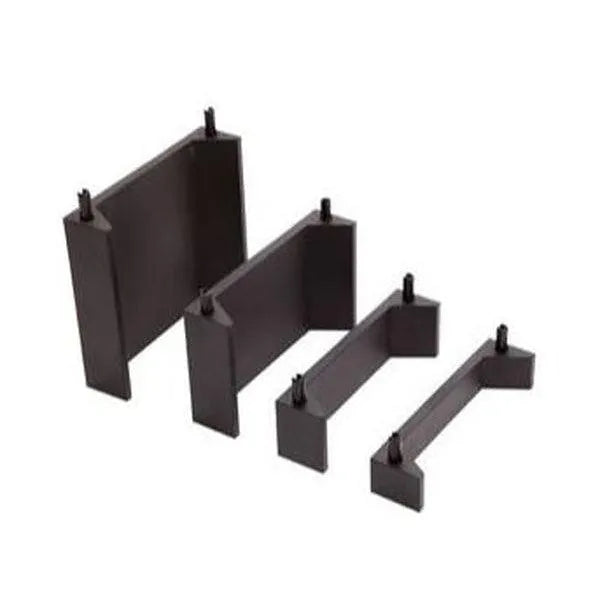

FSH extension lips are available in different lengths to accommodate various door-frame profiles. Measure the distance between the electric strike faceplate and the outside edge of the frame before ordering.
The FES10-EL75 is the longest commonly listed extension for the FES10 Series and is intended for installations requiring substantial additional coverage. A shorter 15mm, 25mm or 50mm extension may provide a better fit on shallower frames.
Installation Note
The extension lip should be securely attached to the pre-drilled mounting points on the compatible FES10 or FES10M electric strike. Once installed, the door latch should enter the keeper freely without rubbing, binding or placing sideways pressure on the strike mechanism.
Installation should be completed by a qualified locksmith, security technician or access control installer. Confirm the electric strike model, frame depth and required extension length before ordering.
Why Choose the FSH FES10-EL75?
- Purpose-designed for the FSH FES10 Series
- Suitable for monitored and non-monitored FES10 strikes
- Provides 75mm of additional latch clearance
- Ideal for deep timber, aluminium and metal frames
- Helps prevent interference between the latch and frame
- Uses the strike’s existing pre-drilled mounting points
- Creates a clean and professional installation finish
