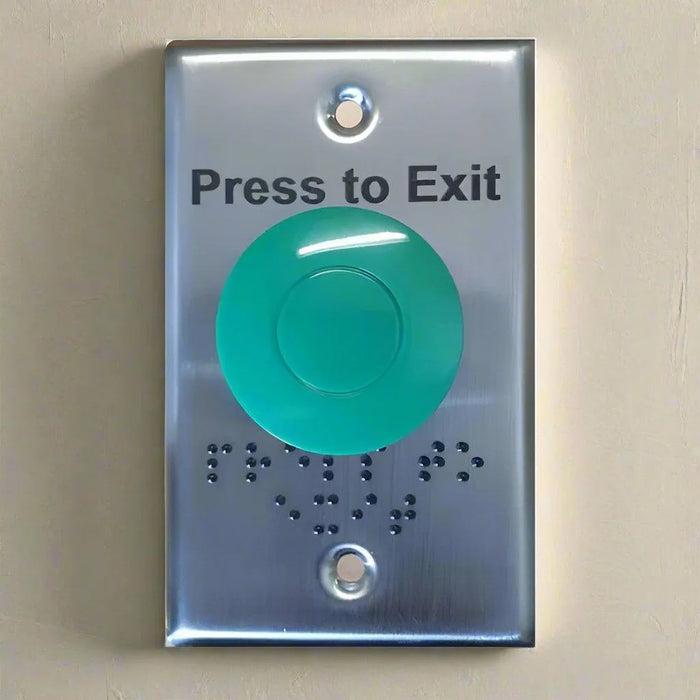

Green Press to Exit Momentary Mushroom Button, Brail Writing, IP65 S/S Plate, IP65, WEL2220BRAILLE

Name: Green Press to Exit Momentary Mushroom Button, Brail Writing, IP65 S/S Plate, IP65, WEL2220BRAILLE
SKU: DFMWEL2220BRAILLE
Price: 158.99 AUD

SKU DFMWEL2220BRAILLE

by SECOR

Availability:

In stock

Smart Press to Exit Momentary Mushroom Green Button Flat S/S Plate

Braille writing fully compliant with BCA2016 V1, Section D3.6 AS1428.1 of the Building Code of ANZ standards

Features :

• Button: Large, Green mushroom
• Plate: Flat square-cornered stainless steel
• Not illuminated
• Power: 12 Volt
• Contacts: Two isolated NO/NC
• Dimensions (mm): 115 (H) × 70 (W) × 41 (D)

Save 10%

$175.99

$175.99 - $175.99

$175.99

$158.99

$158.99 - $158.99

$158.99

Quantity

Shipping & Refunds

Shipping Refund Policy

Push button green mushroom head on curved edge stainless steel plate standard with "Press to Exit" with Braille in black IP65 single pole/double throw (SP/DT) momentary 2 holes.

Ensure Australian Compliance: Integrate Braille Security Solutions for Accessible Safety

Model : WEL2220BRAILLE

Specifications

Green mushroom head diameter: 40mm
Current (max): 10A (12 or 24VDC)
Current (min): 5mA
Resistance: <=50 mΩ
Insulation resistance: >100 MΩ
Contact: isolated NC and NO
Dimensions: 70 x 115 x 53mm
Plate : GPO size, stainless steel
12 Month Warranty
Wording: Press to Exit
Braille writing fully compliant with BCA2016 V1, Section D3.6 AS1428.1 of the Building Code of ANZ standards
