Best For: Bosch Solution 6000 installations requiring the RS485 LAN to extend between separate locations using an Ethernet network

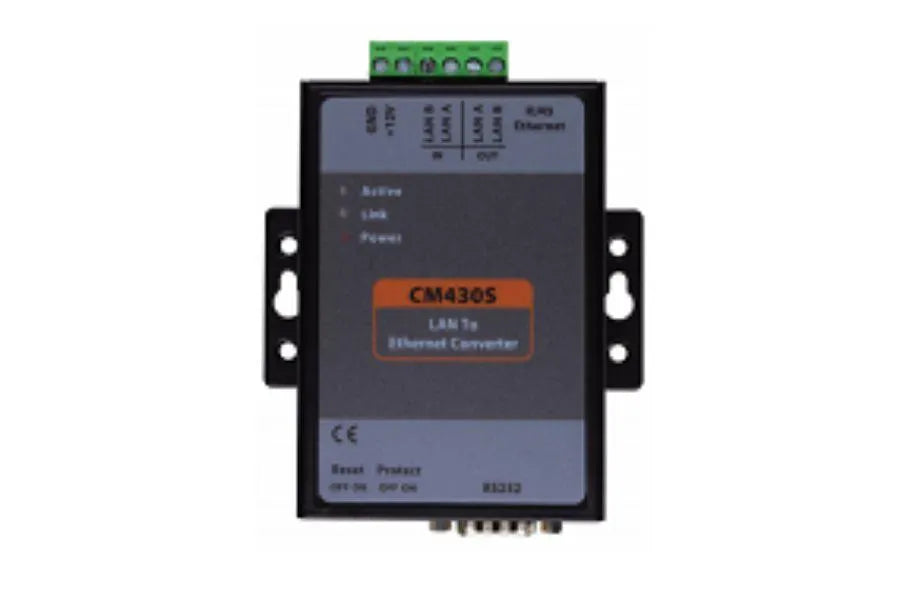

Bosch CM430S RS485 LAN-to-Ethernet Converter Module
Extend the RS485 LAN of a compatible Bosch Solution 6000 alarm system across a local Ethernet network with the Bosch CM430S. This specialist converter allows a control panel and remote RS485 LAN equipment to communicate between locations where a direct RS485 cable run is impractical.
The CM430S supports point-to-point and star network configurations, making it suitable for larger homes, commercial premises, multi-building sites and access-control installations where compatible Bosch equipment is distributed across the property.
Important: This is an RS485 LAN extension device, not a general internet, smartphone-app or alarm-reporting module. A point-to-point installation normally requires one CM430S at the panel location and another at the remote location. This listing is for one CM430S module. Please confirm your system design and required quantity with your security technician before ordering.
Key Features
-
Extends the Bosch RS485 LAN over Ethernet – connects compatible Solution 6000 equipment across a local IP network
-
Point-to-point configuration – one module operates as the TCP server and the second as the TCP client
-
Star configuration support – supports one server and up to 16 client modules for multi-location installations
-
10/100Base-T Ethernet interface – compatible with standard local network infrastructure
-
Two-wire RS485 data connection – Data+ and Data− connection to the compatible alarm LAN
-
Browser-based configuration – network settings are configured through the module interface
-
Designed for professional security installations – suitable for planned system expansions and complex sites
When Is the CM430S Used?
The CM430S is designed for installations where Bosch RS485 LAN devices need to operate at a location separated from the alarm panel by an existing Ethernet network.
Typical applications may include:
- Extending the alarm LAN between separate buildings
- Connecting remote sections of a large commercial property
- Supporting multi-location Solution 6000 installations
- Using existing network infrastructure where a new RS485 cable run is difficult
- Creating a star network with multiple remote locations
Compatibility
-
Alarm system: Bosch Solution 6000
-
Minimum panel firmware: Version 2.29 or later
-
Panel programming: MENU 7-7-0, Option 5 (Extend LAN Fail) must be enabled when using the CM430S
Compatibility should be confirmed against the panel firmware, connected devices and proposed network design before purchase.
Technical Specifications
-
Model: CM430S
-
Product type: RS485 LAN-to-Ethernet converter module
-
Operating voltage: 10.5–14.5V DC
-
Maximum current: 150mA
-
Ethernet interface: 10/100Base-T, half or full duplex
-
RS485 interface: Two-wire Data+ and Data−
-
Operating temperature: 0°C to 55°C
-
Relative humidity: 5% to 80% at 30°C, non-condensing
-
Supported topology: Point-to-point or star configuration
-
Star configuration capacity: One server and up to 16 clients
Installation Requirements
The CM430S requires professional configuration of its network address, TCP server or client mode, alarm-panel programming and RS485 wiring. For installations spanning multiple locations, the network switch and each remote module location should have suitable backup power to maintain communication during a power outage.
Installation and programming should be completed by an experienced security technician familiar with Bosch Solution 6000 systems and IP networking.
