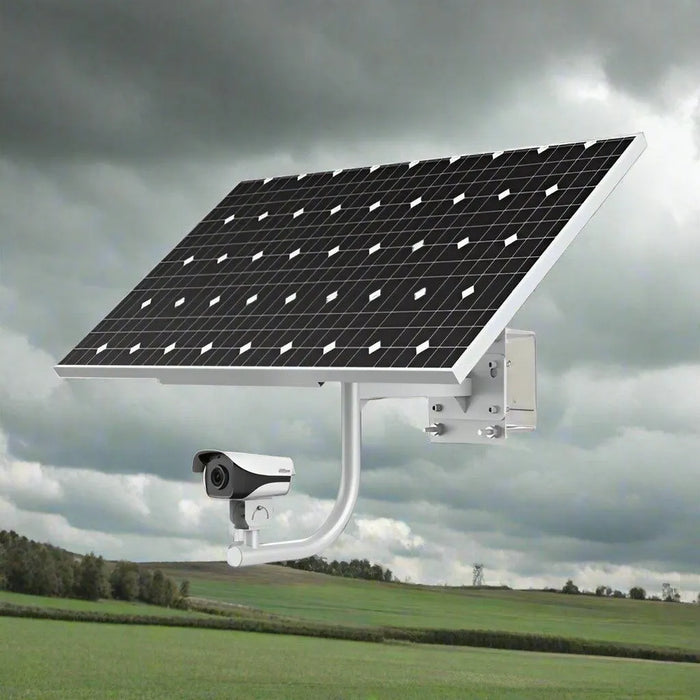

Dahua 100W Solar 4G Security Camera Kit – 2MP, 45Ah Battery

Dahua 100W Solar 4G Security Camera Kit

Monitor an off-grid location using solar power and a mobile network with this Dahua 100W Solar 4G Security Camera Kit. The package combines a 100W monocrystalline solar power system, a weather-resistant 45Ah lithium battery and a Dahua 2MP 4G bullet camera for remote surveillance where mains electricity and fixed internet are unavailable.

The camera records Full HD video, provides infrared night vision and connects through a compatible 4G mobile service. Footage can be stored locally on an optional microSD card and accessed remotely using compatible Dahua software.

What’s Included

• 1 × Dahua DH-PFM378-B100-WB 100W monocrystalline solar power system with MPPT charging control
• 1 × Dahua PFM372-L45-4S14P integrated 12.8V 45Ah lithium battery in an IP66-rated die-cast aluminium enclosure
• 1 × Dahua DH-IPC-HFW4230MP-4G-AS-I2-0360B-HW120 2MP 4G infrared bullet network camera with 3.6mm fixed lens

This listing covers the specified Dahua equipment. Confirm any additional pole-mounting hardware, SIM card, mobile service, storage card, cabling and installation requirements before purchase.

Key Benefits

• Off-grid surveillance – designed for locations where running mains power and network cabling is impractical
• 100W solar charging – monocrystalline solar panel supplies power to the lithium battery system
• 45Ah lithium battery – stores energy for operation outside peak sunlight hours
• 4G mobile connectivity – enables remote camera access where compatible mobile coverage is available
• Full HD video – captures video at up to 1920 × 1080 resolution
• Infrared night vision – monitors areas in darkness at distances of up to 40 metres under suitable conditions
• Local recording – supports an optional microSD card up to 256GB
• Weather-resistant equipment – IP67-rated camera and IP66-rated battery enclosure for outdoor installations
• Efficient video compression – H.265 and H.264 help manage storage and mobile-data consumption

Ideal Applications

• Farm gates, sheds, livestock areas and machinery storage
• Construction sites and temporary compounds
• Remote driveways and property entrances
• Equipment yards and industrial sites
• Car parks and isolated facilities
• Utilities, infrastructure and environmental monitoring locations

2MP 4G Bullet Camera

The included Dahua bullet camera uses a 4G mobile connection instead of a fixed internet service. It is designed for remote locations with suitable mobile coverage and can be accessed using compatible Dahua viewing software.

• Model: DH-IPC-HFW4230MP-4G-AS-I2-0360B-HW120
• Image sensor: 1/2.9-inch 2MP progressive-scan CMOS
• Maximum resolution: 1920 × 1080
• Frame rate: Up to 25/30fps at 2MP
• Lens: 3.6mm fixed lens
• Night vision: Infrared illumination up to 40 metres
• Compression: H.265 and H.264 dual-stream encoding
• Storage: MicroSD support up to 256GB; card sold separately
• Weather rating: IP67
• Network: Compatible 4G mobile service required

100W Solar Power and 45Ah Battery

The DH-PFM378-B100-WB solar system uses a 100W monocrystalline panel with flexible angle adjustment and MPPT charging control. MPPT technology helps optimise the available solar energy used to charge the battery.

The PFM372-L45-4S14P is an integrated 12.8V 45Ah lithium battery housed in a compact IP66-rated die-cast aluminium enclosure. It is designed to store solar energy and supply the camera when direct solar generation is reduced.

Actual operating time varies with available sunlight, battery condition, video activity, recording settings, mobile signal strength and temperature. Continuous operation cannot be guaranteed without assessing the proposed location and system load.

Remote Viewing and Recording

Once the camera is correctly configured with a compatible SIM and data service, users can access supported live view, playback and alerts through the Dahua DMSS app.

Mobile-data usage will vary according to viewing frequency, resolution, frame rate, event activity and upload settings. Select a data plan appropriate for the intended use and confirm that the proposed installation point has stable coverage from the chosen network.

Site and Installation Requirements

This is professional surveillance equipment rather than a plug-and-play consumer camera. Correct installation includes:

• Confirming reliable 4G coverage at the exact camera location
• Selecting an activated SIM and suitable mobile-data plan
• Positioning the solar panel for appropriate year-round sunlight
• Checking the pole, foundation and mounting hardware for the site conditions
• Configuring the camera, APN, recording and remote-access settings
• Allowing safe access for future inspection and solar-panel cleaning

Wind exposure, shade, dust, vegetation, seasonal sun angles and the required camera activity should all be considered before installation.

Why Buy from CTC Communications?

• Security and communications specialists since 1993
• Australia-wide product delivery
• Technical assistance with Dahua camera and solar-system selection
• Professional CCTV installation available across Sydney

Explore more solar-powered security cameras or view the complete range of Dahua CCTV systems.

For assistance assessing mobile coverage, solar exposure, storage or mounting requirements, request a quote from CTC Communications before ordering.
