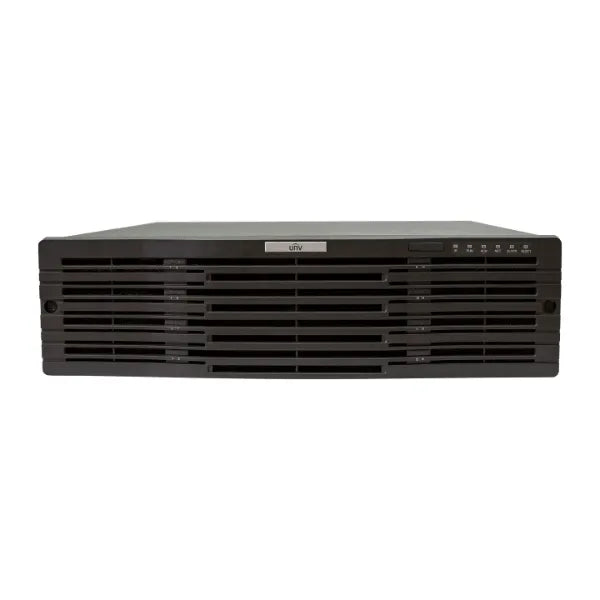

Uniview NVR516-128 network video recorder with 128 channel capacity and up to 12 megapixel resolution recording.

Model: NVR516-128

Cloud Upgrade| Commercial | Residential

Features

  • Support Ultra 265/H.265/H.264 video formats
  • 64/128-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
  • Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
  • HDMI1, HDMI2 and VGA independent outputs provided
  • Up to 12 Megapixels resolution recording
  • Redundant power supply optional
  • 2 decoding cards optional, up to 12-ch HDMI
  • Support HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable
  • 16 SATA HDDs, up to 10TB for each HDD
  • Support 2 miniSAS Interfaces
  • Support 12V power output
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade

Specifications

Video/Audio Input
IP Video Input 128-ch
Two-way Audio Input 1-ch, BNC
Network
Incoming Bandwidth 512Mbps
Outgoing Bandwidth 384Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output VGA:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
HDMI1:
4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
HDMI2:
4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, BNC
Synchronous Playback 16-ch
Corridor Mode Screen 3/4/5/7/9/10/12/16/32
Decoding
Decoding format Ultra 265, H.265, H.264
Live view/Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x D1
Hard Disk
SATA 16 SATA interfaces
Capacity up to 10TB for each HDD
eSATA 1 eSATA interface
miniSAS 2 miniSAS ports
Smart
VCA Detection Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
VCA Search Face search, Behavior search
Statistical Analysis People counting
Disk Array
Array Type RAID 0/1/5/6/10/50/60
External Interface
Network Interface 4 RJ-45 10M/100M/1000M adaptive Ethernet Interface
2 1000M SFP Ethernet Interface
Serial Interface 1 x RS232, 1 x RS485
USB Interface Rear panel: 4 x USB3.0
Alarm In 24-ch
Alarm Out 8-ch
Decoding Card (optional) 2 slots (4-ch HDMI or 6-ch HDMI outputs per card)
Power Output 12V
General
Power Supply 100 ~ 240V AC
Power Consumption: ≤ 50 W( without HDD )
Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Chassis 19-inch rack-mounted 3U chassis
Dimensions 482mm ×477mm × 131mm (18.8"× 19.0" ×5.1")
Weight ( without HDD ) ≤ 10 Kg ( 22.05 lb )
