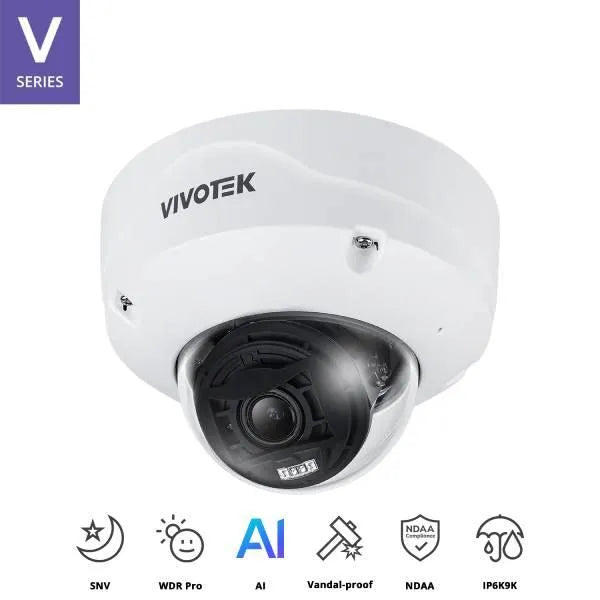

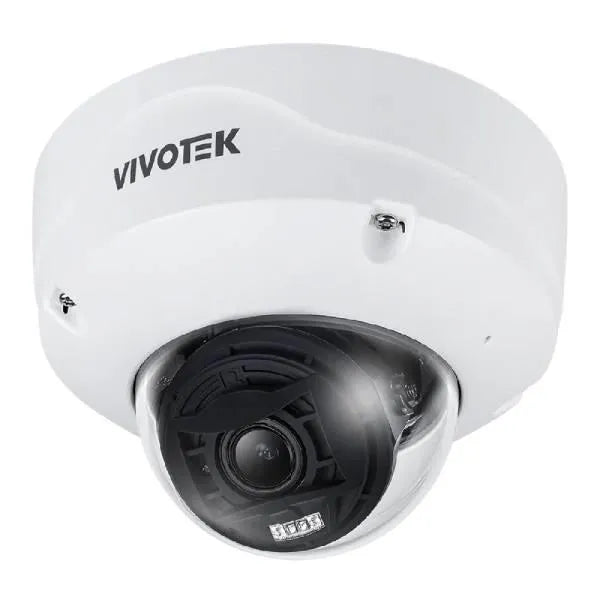

Vivotek FD9387-EHTV-V3 5MP Outdoor AI Dome Camera
The Vivotek FD9387-EHTV-V3 is a robust 5MP outdoor network dome camera designed for commercial sites that need detailed video, intelligent event detection and reliable performance in challenging conditions. Its motorised varifocal lens, 120dB WDR Pro and 50-metre Smart IR III help deliver useful coverage across entrances, car parks, loading areas, warehouses and building perimeters.
Best For
Commercial buildings, warehouses, car parks, loading docks, schools, strata properties and other exposed areas requiring vandal-resistant AI surveillance.
Browse our complete range of Vivotek dome security cameras, or build a complete recording solution with a compatible Vivotek network video recorder.
Key Features
-
5MP resolution: Records up to 2560 × 1920 for clear identification and evidential detail.
-
Motorised varifocal lens: Remote focus and zoom simplify setup and allow the field of view to be tailored to the site.
-
50m Smart IR III: Improves night visibility while reducing overexposure on nearby subjects.
-
120dB WDR Pro: Balances bright and dark areas in entrances, loading zones and other high-contrast scenes.
-
AI motion detection and Smart VCA: Helps distinguish people and vehicles and supports more useful event-based monitoring.
-
Two-way audio: Built-in microphone plus external audio input and output for compatible speakers and microphones.
-
Flexible recording: Supports microSD/SDHC/SDXC cards up to 1TB, NAS storage and compatible network video recorders.
-
Built for exposed locations: IP66, IP67, IP6K9K, IK10+ and NEMA 4X-rated housing.
Motorised Lens Options
Vivotek manufactures the FD9387-EHTV-V3 in 2.7–13.5mm and 7–22mm lens versions. The 2.7–13.5mm option suits wider general surveillance, while the 7–22mm option provides a narrower view with greater reach. As the lens range is not encoded in the listed SKU, please confirm the required version with CTC Communications before ordering.
AI Video Analytics
On-camera AI supports smart motion detection and people and vehicle classification, helping reduce false alarms caused by environmental movement. Smart VCA functions support applications such as intrusion, loitering and line-crossing detection. Some advanced analytics may require separate licensing depending on the selected application and system configuration.
Video, Audio and Storage
The camera supports H.265, H.264 and MJPEG compression, with up to 30 fps at full 5MP resolution and up to 60 fps at 1080p when WDR is disabled. A built-in microphone and full-duplex audio provide a foundation for two-way communication, while local microSD recording and NAS support add useful redundancy. Pair it with compatible Vivotek accessories for a complete installation.
Technical Specifications
-
Model: FD9387-EHTV-V3
-
Image sensor: 1/2.8-inch progressive scan CMOS
-
Maximum resolution: 2560 × 1920
-
Lens: Motorised varifocal with remote focus; 2.7–13.5mm or 7–22mm manufacturer version
-
Wide dynamic range: WDR Pro, 120dB
-
Infrared: Smart IR III, up to 50m
-
Compression: H.265, H.264 and MJPEG
-
Frame rate: Up to 30 fps at 2560 × 1920; up to 60 fps at 1920 × 1080 with WDR off
-
Audio: Built-in microphone, external microphone input, line output and full-duplex two-way audio
-
Storage: microSD/SDHC/SDXC up to 1TB and NAS support
-
Interoperability: ONVIF Profiles G, S, T and M
-
I/O: 1 digital input, 1 digital output, audio line input/output and Micro USB
-
Power: 12V DC or IEEE 802.3af PoE Class 0; 24V AC requires the optional AO-011 module
-
Protection: IP66, IP67, IP6K9K, IK10+ and NEMA 4X
-
Dimensions: Ø173.6 × 122.6mm
-
Weight: Approximately 1.30kg
-
Operating environment: Start-up from -30°C to 60°C; operation down to -40°C subject to IR mode and installation conditions
Included with the Camera
- Vivotek FD9387-EHTV-V3 dome camera
- Quick installation guide and labels
- Alignment sticker and screw pack
- Waterproof connector pack
- L-shaped wrench
- Sunshield and conduit bracket
- I/O cable
Not included: NVR or VMS licences, PoE switch or injector, microSD card, network cabling, additional mounting hardware and installation unless selected separately.
Professional CCTV Installation
Correct positioning, lens selection, network configuration and analytics setup are essential for dependable results. CTC Communications provides professional CCTV installation across Sydney and can assist with camera placement, PoE switching, recording, remote access and system commissioning. For related cameras and system components, explore the complete Vivotek security range.
