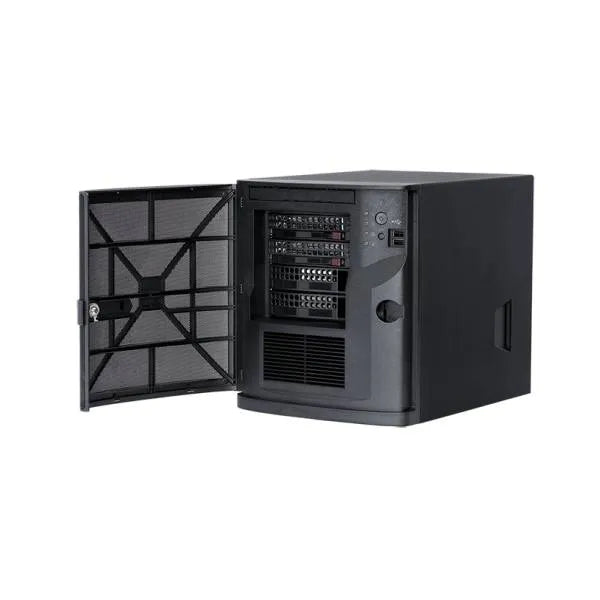

Bosch DIVAR IP All-In-One 4000 Management Appliance 2x4TB (DIP-4424IG-2HD)
Build a professional Bosch CCTV recording and video management system with the Bosch DIVAR IP all-in-one 4000 DIP-4424IG-2HD. This compact management appliance combines BVMS-based video recording, viewing and management in one convenient solution, supporting up to 32 IP camera channels with 2 x 4TB storage capacity pre-installed.
32ch Max 8ch Pre-Licensed 2 x 4TB Storage BVMS-Based 250Mbps Recording Mini Tower Video Security App
Overview
- All-in-one Bosch video recording, viewing and management appliance.
- Designed for network surveillance systems with up to 32 IP camera channels.
- Supplied with 2 x 4TB hard drives pre-installed for out-of-the-box recording.
- Includes 8 IP camera channels pre-licensed, with expansion available up to 32 channels.
- Powered by Bosch Video Management System and Video Recording Manager technology.
- Compact mini-tower design for IT rooms, offices, equipment cabinets and professional CCTV installations.
Key Features & Specifications
| Model |
DIP-4424IG-2HD |
| Product Series |
Bosch DIVAR IP all-in-one 4000 |
| Product Type |
Management appliance with pre-installed storage |
| Maximum IP Camera Channels |
Up to 32 IP camera channels |
| Pre-Licensed Channels |
8 IP camera channels |
| Storage Capacity |
2 x 4TB hard drives pre-installed |
| Internal Hard Drives |
Maximum 2 x 3.5" SATA3 HDDs |
| Maximum Recording Bandwidth |
250Mbps |
| Software Compatibility |
Bosch Video Management System, Video Recording Manager, Video Security App, Video Security Client and Video Streaming Gateway |
| Operation Mode |
Recording, viewing and video management appliance |
| Included Parts |
DIVAR IP all-in-one 4000, installation manual, registration leaflet, power cords, keys and hard drive tray labels |
| Recommended Use |
Commercial, education, retail, warehouse and professional CCTV systems |
All-In-One Bosch Video Management
The DIP-4424IG-2HD combines Bosch recording hardware and video management software into one appliance, reducing the need for separate servers, recorders and management platforms. It is designed to provide a complete Bosch IP video security solution for professional installations.
- Recording, viewing and management in one unit
- BVMS-based advanced user and alarm management
- Video Recording Manager support for Bosch IP video systems
- Centralised setup and system management
- Ideal for medium-sized Bosch CCTV projects
2 x 4TB Pre-Installed Storage
This model is supplied with 2 x 4TB storage capacity pre-installed, making it ready for professional video recording once configured. The 2-bay design is suited to smaller and mid-sized Bosch surveillance systems where reliable integrated recording is required.
- 2 x 4TB hard drives included
- Out-of-the-box IP video recording
- Designed for Bosch-qualified storage performance
- Suitable for 8-camera systems with room to expand licensing
- Recording time depends on camera count, resolution, frame rate and recording schedule
8 Channels Pre-Licensed, 32 Channels Maximum
The Bosch DIVAR IP all-in-one 4000 is supplied with 8 IP camera channels pre-licensed and can support up to 32 IP camera channels with suitable licensing. This makes it a practical option for customers starting with a smaller Bosch CCTV system and expanding over time.
- 8 pre-licensed camera channels included
- Expandable up to 32 IP camera channels
- Suitable for staged CCTV upgrades
- Supports larger systems through additional BVMS licensing
DIVAR IP System Manager
The DIVAR IP System Manager helps simplify operation mode selection, software setup and upgrades. This assists installers and system managers with a cleaner setup process and easier long-term management of the appliance.
- Operation mode selection
- Software setup and upgrades
- Wizard-based system configuration
- Designed to reduce installation and management complexity
Remote Viewing & Video Access
When configured correctly, the DIP-4424IG-2HD can support remote viewing through Bosch video software and mobile access tools. This helps authorised users view live and recorded video from compatible Bosch surveillance systems.
- BVMS Operator Client support
- Video Security App support
- Video Security Client compatibility
- Remote viewing and playback where configured
- Suitable for business owners, security managers and operators
Ideal Use Cases
- Commercial CCTV systems
- Retail stores and shopping environments
- Schools and education facilities
- Warehouses and industrial sites
- Office buildings
- Healthcare and medical centres
- Government and council facilities
- Multi-camera Bosch IP surveillance systems
- Sites needing centralised recording and video management
Installation Notes
- This appliance supports up to 32 IP camera channels, with 8 channels pre-licensed.
- Additional camera licenses may be required when expanding beyond the included licence count.
- Compatible Bosch IP cameras, network switches, PoE switches, monitors, keyboard, mouse, cabling and client workstations may be required depending on the installation.
- The appliance should be installed in a clean, dry, dust-free and well-ventilated area.
- Professional installation is recommended for camera integration, storage configuration, BVMS setup and remote viewing access.
FAQs
How many cameras does the Bosch DIP-4424IG-2HD support?
The appliance supports up to 32 IP camera channels. It is supplied with 8 IP camera channels pre-licensed, with additional licensing required for expansion.
How much storage is included?
This model includes 2 x 4TB hard drives pre-installed for out-of-the-box IP video recording.
Is this a Bosch BVMS-based recorder?
Yes. The DIVAR IP all-in-one 4000 is a BVMS-based recording, viewing and management appliance designed for professional Bosch IP video systems.
Does this unit include PoE ports?
No. Cameras generally connect through the network using suitable network infrastructure such as PoE switches, network switches and structured cabling.
