Best For: Government facilities, secure commercial areas, controlled staff entrances and high-security single doors requiring SCEC-approved locking, tamper protection and monitored lock status.

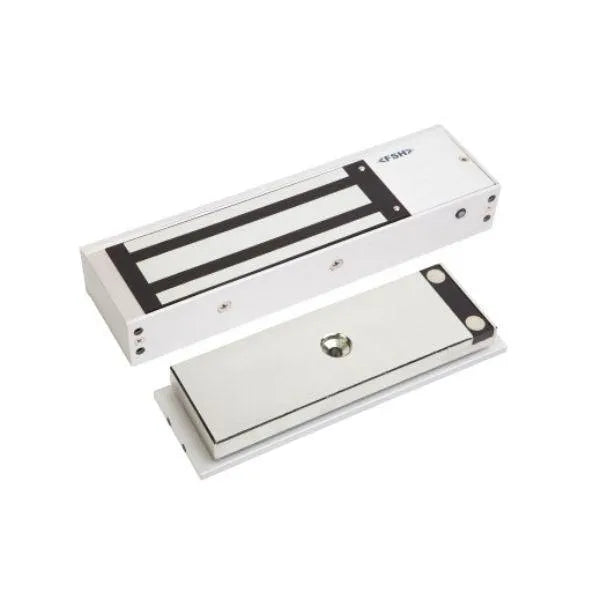

FSH FEM4000HST High-Security Monitored Magnetic Door Lock – 580kg, SCEC Approved
The FSH FEM4000HST is a high-security single electromagnetic door lock designed for demanding commercial and secure-area access control applications. It delivers a holding strength of up to 580kg and incorporates an electronically registered armature plate for additional protection against substitution and tampering.
Operating from selectable 12V or 24V DC, the FEM4000HST provides fail-safe, Power To Lock operation and includes Hall-effect lock status monitoring. It is supplied with an anti-tamper plate and is SCEC approved for Secure Area applications.
Key Features of the FSH FEM4000HST
-
High-security single magnetic lock for controlled access doors
- Up to 580kg holding strength
- SCEC approved for Secure Area applications
- Electronically registered armature plate unique to the magnet
- Hall-effect Lock Status Sensor for access control monitoring
- Anti-tamper plate supplied as standard
- Fail-safe, Power To Lock operation
- Field-selectable 12V or 24V DC input
- Built-in MOV surge protection
- Surface-mount configuration
- Fire tested for up to 4 hours, subject to the approved doorset
- Lifetime warranty stated in product-specific literature; manufacturer terms apply
Electronically Registered Armature Plate
The FEM4000HST uses an electronically registered armature plate that is matched to the magnetic lock. This high-security design helps prevent an unauthorised or substituted armature plate from being used to provide a false locked indication.
An internal processor recognises the registered armature, adding another level of protection for applications where conventional magnetic locking may not provide sufficient security.
Monitored Lock Status
A Hall-effect Lock Status Sensor (LSS) provides system feedback on the magnetic lock’s secure status. This allows the lock to be integrated with a compatible access controller, alarm system or building management platform for central monitoring.
The electronically registered armature and lock status monitoring make the FEM4000HST particularly suitable for sites requiring reliable feedback and improved resistance to tampering.
Anti-Tamper Protection
An anti-tamper plate is supplied as standard to help protect the armature plate’s dome-nut fixing bolt from hostile attack. This reinforces the installation and helps reduce the risk of the armature assembly being removed or interfered with.
Fail-Safe 12/24V DC Operation
The FEM4000HST operates as a fail-safe or Power To Lock magnetic lock. Power is applied to secure the door, and the lock releases when power is removed. This makes it suitable for access-controlled exits where unlocking may be required during a power failure or emergency condition.
The lock supports field-selectable 12V or 24V DC operation, allowing it to be integrated with a wide range of professional access control power supplies.
Technical Specifications
| Brand |
FSH |
| Model |
FEM4000HST / FSHFEM4000HST |
| Product Type |
High-security electromagnetic door lock |
| Door Configuration |
Single door |
| Holding Strength |
Up to 580kg |
| Operation |
Fail safe / Power To Lock |
| Input Voltage |
12V or 24V DC, field selectable |
| Monitoring |
Hall-effect Lock Status Sensor and electronically registered armature plate |
| Security Protection |
Electronically matched armature and supplied anti-tamper plate |
| Mounting |
Surface mount |
| Magnet Dimensions |
268mm x 73mm x 40mm |
| Surge Protection |
Built-in MOV protection |
| Fire Rating |
Up to 4 hours, subject to compatible approved doorset |
| Approval |
SCEC approved for Secure Area applications |
| Warranty |
Lifetime warranty stated in product-specific literature; manufacturer terms apply |
Ideal Applications
- Government buildings and secure facilities
- Controlled staff and restricted-area entrances
- Commercial offices and administration buildings
- Secure equipment, communications and server rooms
- Education, healthcare and institutional facilities
- High-security access control systems
- Single doors requiring monitored fail-safe locking
SCEC and Fire-Rated Applications
The FEM4000HST is SCEC approved for Secure Area applications and has been fire tested for up to four hours. Suitability for a particular fire or security door must be confirmed against the complete approved doorset, fire-door manufacturer requirements and applicable project specifications.
Professional Installation Required
This high-security magnetic lock should be installed by a qualified security or access control technician. Door construction, mounting brackets, cable protection, emergency release devices, power supply capacity and access control monitoring should be confirmed before installation.
As a fail-safe lock, emergency egress, fire-alarm integration and power-loss behaviour must be designed in accordance with applicable building and fire-safety requirements.
Why Choose the FSH FEM4000HST?
- High holding strength for demanding security applications
- SCEC approval for designated Secure Areas
- Registered armature technology for improved tamper resistance
- Monitored lock status for access control integration
- Anti-tamper plate included as standard
- Flexible 12V or 24V DC operation
- Established FSH commercial locking technology
