Hanwha Vision 5MP CCTV Kit – 4 Turrets, 8CH NVR & HDD Options

Hanwha Vision 5MP CCTV Kit with 4 Turrets & HDD Options

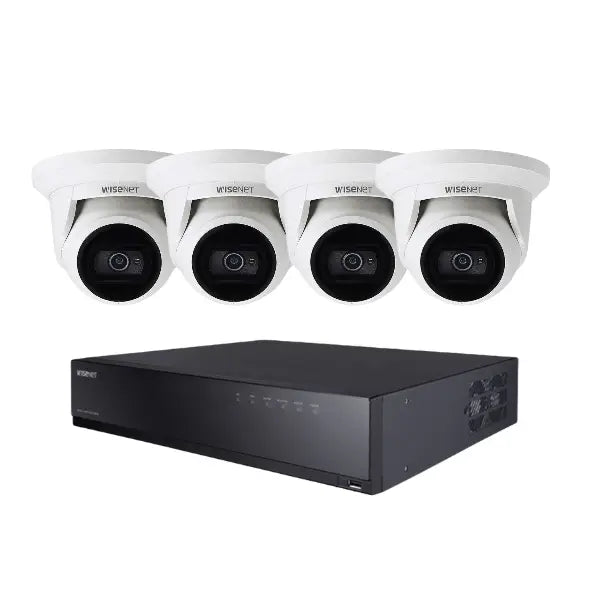

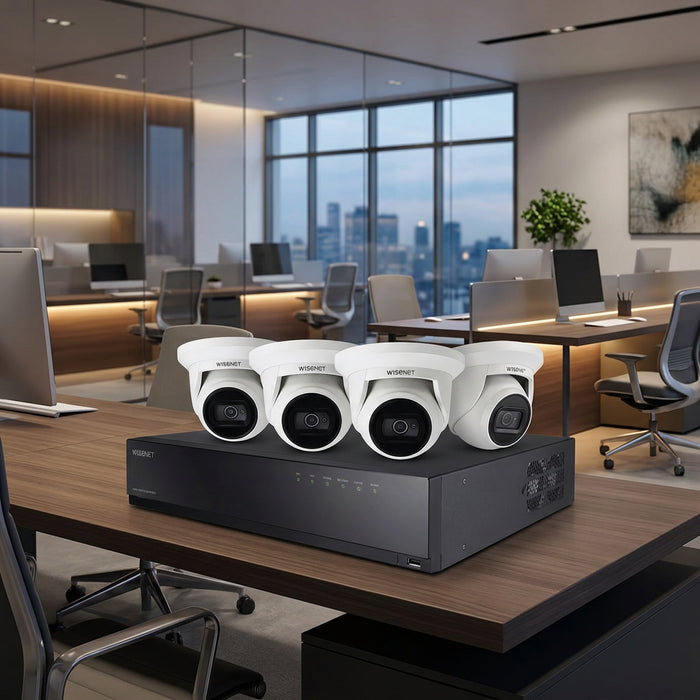

This Hanwha Vision CCTV kit combines four QNE-8011R 5MP turret cameras and an HV-QRN-830S 8-channel PoE recorder, with Western Digital or Seagate hard drive options in 2TB, 4TB and 6TB capacities. The compact cameras provide practical coverage for homes and small businesses, while 2.8mm fixed lenses, 120dB WDR and infrared night vision support day-and-night surveillance.

The cameras connect to the recorder using Ethernet cabling, with the NVR's built-in PoE ports carrying both power and video data. Browse the individual Hanwha Vision turret camera listing for more component information.

What's Included

Key Features

• Four 5MP cameras: up to 2592 × 1944 resolution at 30fps with H.265/H.264.
• Compact turret design: suitable for entrances, side access and indoor or outdoor viewing positions.
• 2.8mm fixed lenses: provide wide-angle coverage for general surveillance.
• Infrared night vision up to 20m: supports black-and-white imaging in darkness.
• 120dB WDR: helps balance bright backgrounds and shaded areas.
• Eight built-in PoE ports: power and data over each camera's Ethernet cable.
• Selectable local storage: recording capacity depends on frame rate, compression, bitrate and recording schedule.
• Motion and event detection: camera analytics include tampering, defocus and virtual line detection.
• H.265 and WiseStream II: camera compression features help manage bandwidth and storage use.

Why Choose a Four-Camera Turret Kit?

Four matching Q Series turret cameras provide consistent coverage across multiple areas such as entrances, driveways, side access and stockrooms. Four spare recorder channels allow you to add compatible cameras later. Camera position and lighting determine the detail captured; wide-angle coverage does not guarantee identification at every distance.

Camera Specifications

QRN-830S Recorder Specifications

Expansion planning: The four supplied cameras use four of the eight recorder channels. Add up to four more compatible IP cameras, within the recorder's bandwidth and PoE limits. The NVR is for a suitable indoor location; outdoor protection ratings apply to the cameras.

Frequently Asked Questions

Can these cameras be installed outdoors?

Yes. The QNE-8011R turrets have IP67 weather protection and IK10 impact protection. Mounting, cable entries and connections must be protected appropriately.

Does this kit include a hard drive?

Yes. Choose a Western Digital or Seagate hard drive in 2TB, 4TB or 6TB capacity from the product options. Recording duration varies with camera count, bitrate, frame rate, compression settings and recording schedule.

Are these cameras AI person and vehicle detection models?

These Q Series cameras provide motion detection and event analytics such as virtual line detection. AI person and vehicle classification is not specified for these models. Ask CTC Communications about a suitable AI camera package if that feature is required.

Can I view the cameras on my phone?

The QRN-830S supports Wisenet mobile viewing. Remote access requires compatible software, correct network setup and an internet connection at the property.

Is installation included?

Professional installation is available as a separate service. Contact CTC Communications for a Sydney installation quote covering camera positioning, cabling, recorder configuration and remote viewing setup.

Warranty & Local Support

Hanwha Vision equipment in this kit is covered by the listed 3-year manufacturer warranty, subject to warranty terms. Hard-drive warranty terms depend on the supplied drive. CTC Communications provides a 1-year labour warranty for installation carried out by our team.

Build Your Hanwha Vision CCTV System

Compare more Hanwha Vision CCTV kits or explore our Hanwha Vision recorders for larger systems. CTC Communications has supplied security products since 1993, with Australia-wide delivery and professional installation across Sydney.
