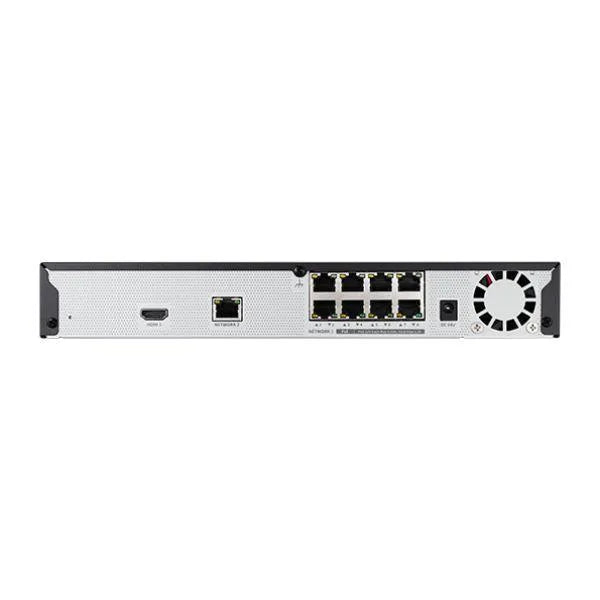

Hanwha Vision HV-QRN-830S Q Series 8 Channel PoE Network Video Recorder
The Hanwha Vision HV-QRN-830S Q Series 8 Channel Network Video Recorder provides reliable centralised recording and management for compatible IP surveillance cameras. Supporting up to eight cameras with resolutions up to 8MP, it is an excellent choice for residential, retail, office and small commercial CCTV systems.
With eight integrated PoE ports, the QRN-830S can provide network connectivity and power to compatible IP cameras through a single Ethernet cable, helping simplify installation and reduce additional equipment requirements.
Key Features
-
8-channel NVR: Connect and record up to eight compatible network cameras
-
Up to 8MP camera support: Suitable for high-resolution 4K surveillance cameras
-
80Mbps recording bandwidth: Reliable network camera recording across connected channels
-
8 built-in PoE ports: Simplifies compatible IP camera installation
-
65W PoE power budget: Provides power for compatible PoE cameras
-
Single HDD bay: Supports one surveillance hard drive up to 6TB
-
4K HDMI output: Connect a compatible monitor for high-resolution local viewing
-
H.265, H.264 and MJPEG: Flexible video compression and recording options
-
QR-code P2P connection: Simplifies compatible remote viewing setup
-
Plug-and-play camera connection: Streamlined setup with compatible Hanwha Vision cameras
8 Channel PoE Camera Recording
The QRN-830S includes eight integrated PoE network ports, allowing compatible IP cameras to connect directly to the recorder. This helps create a cleaner CCTV installation by carrying both network data and power through the camera's Ethernet connection.
With support for cameras up to 8MP resolution and recording bandwidth of up to 80Mbps, the recorder provides a dependable platform for detailed everyday video surveillance.
Single Bay Surveillance Storage
The Hanwha QRN-830S features a single internal HDD bay supporting a compatible surveillance hard drive up to 6TB.
Local hard drive recording provides convenient access to stored footage for playback, event review and security investigations without relying solely on cloud-based recording.
Hard drive capacity affects the amount of footage that can be retained. Actual recording time will vary according to camera resolution, frame rate, compression, recording schedule and the number of connected cameras.
Local and Remote CCTV Viewing
A local monitor can be connected through the recorder's HDMI output, with support for resolutions up to 4K for clear multi-camera viewing and recorded footage playback.
The QRN-830S also supports QR-code P2P connectivity for compatible Hanwha Vision remote-viewing applications, making it easier to securely access cameras and recorded footage away from the premises when correctly configured.
Ideal Applications
- Homes and residential properties
- Retail stores
- Offices and professional suites
- Small warehouses
- Restaurants and hospitality venues
- Small to medium commercial properties
- Existing Hanwha Vision IP camera systems
Designed for Hanwha Vision CCTV Systems
When paired with compatible Hanwha Vision CCTV cameras, the QRN-830S provides an integrated platform for camera recording, live viewing, playback and system management.
Its eight-channel capacity makes it particularly suitable for smaller surveillance installations that require professional IP camera recording without the need for a larger 16 or 32-channel recorder.
Professional CCTV Installation
CTC Communications provides professional CCTV installation across Sydney, including camera positioning, network setup, recorder configuration and remote viewing.
Shop CTC Communications for Hanwha Vision CCTV systems, cameras, network video recorders and surveillance accessories.
