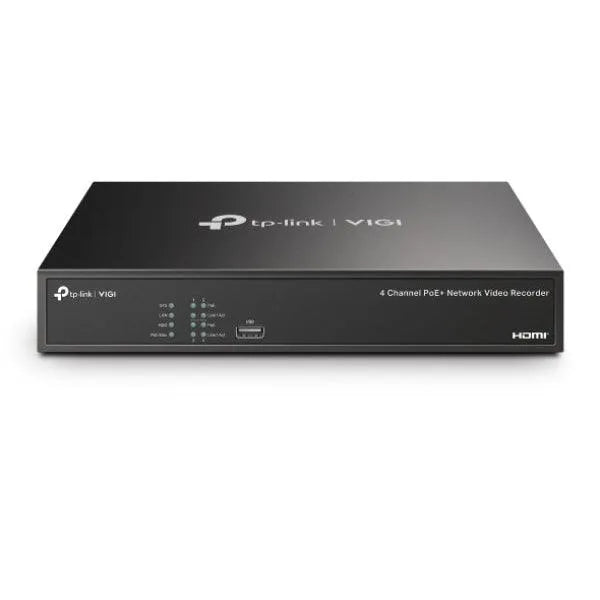

The Vigi 4 Channel Network Video Recorder TP-VIGI NVR1004H-4P, is a plug and play NVR. It offers 8K High Definition live view storage and playback as it is embedded with advanced technology.
High-Performance NVR with 4K HDMI Output & PoE+ Support
The VIGI TP-VIGI NVR1004H-4P is a powerful 4-channel PoE+ network video recorder (NVR) designed for seamless security monitoring and high-definition video recording. Supporting 4K HDMI output, H.265+ compression for efficient storage, and remote monitoring, this compact yet powerful NVR is an ideal solution for small to medium-sized surveillance systems.
With 4× PoE+ ports providing up to 53W power, the VIGI NVR1004H-4P allows direct camera connections, eliminating the need for separate power sources. Synchronous playback, up to 8-channel live view, and reliable storage options (up to 10TB HDD support) ensure continuous and efficient surveillance.
Key Features
4-Channel NVR with 4K HDMI Video Output
✔ Supports up to 4 IP cameras for real-time monitoring
✔ 4K HDMI & VGA simultaneous output for clear, high-resolution display
Integrated PoE+ for Seamless Installation
✔ 4× 10/100 Mbps PoE+ Ports with 53W Total PoE Budget
✔ Simplifies camera setup by providing both power & data over a single cable
Reliable Video Decoding & Storage Capacity
✔ Up to 8-ch @ 2MP (25fps) or 4-ch @ 4MP (25fps) Decoding Capability
✔ 1× SATA interface, supports up to 10TB HDD storage (1× 2TB HDD preinstalled)
Smart H.265+ Compression for Optimized Storage
✔ Reduces bandwidth & storage while maintaining high video quality
Advanced Playback & Bandwidth Management
✔ 4-Channel Synchronous Playback for Efficient Video Review
✔ 80 Mbps Incoming Bandwidth & 60 Mbps Outgoing Bandwidth
Remote Access & Monitoring
✔ Control your surveillance system via VIGI App & Web Interface
✔ Live view, playback, and system management from anywhere
Ideal Use Cases
✔ Retail & Small Business Security – Reliable 4-camera monitoring for stores & offices
✔ Home & Residential Surveillance – Secure entry points, driveways & backyards
✔ Warehouse & Small Industrial Sites – Monitor loading docks & stock areas
✔ Cafés & Restaurants – Ensure safety & operational efficiency with live video feeds
Technical Specifications
Recording & Storage
-
Maximum Camera Channels: 4
-
Decoding Capability: 8-ch @ 2MP (25fps) / 4-ch @ 4MP (25fps)
-
Synchronous Playback: 4-channel
-
Incoming Bandwidth: 80 Mbps
-
Outgoing Bandwidth: 60 Mbps
-
Storage: 1× SATA Interface (Supports up to 10TB HDD, 1× 2TB HDD Preinstalled)
Connectivity & PoE Power
-
PoE Ports: 4× 10/100 Mbps PoE+ (IEEE 802.3af/at)
-
PoE Power Budget: 53W
-
Ethernet Interface: RJ45 10/100 Mbps Network Port
Video & Display Output
-
HDMI Output: 4K Ultra HD
-
VGA Output: Simultaneous HDMI/VGA Output
Video Compression
- H.265+ / H.265 / H.264+ / H.264 Supported
Remote Access & Software Integration
-
VIGI App & VIGI Security Manager for mobile & desktop monitoring
-
Web Interface & ONVIF Support for third-party camera integration
Remote Access with VIGI App & Security Manager
📲 Monitor live footage remotely
📲 Receive instant alerts on security events
📲 Easily configure recording schedules & playback footage
📲 Manage PoE-powered cameras with a single platform
Why Choose the VIGI 4-Channel PoE+ Network Video Recorder?
The VIGI TP-VIGI NVR1004H-4P provides a complete surveillance solution for small businesses and homes, offering 4K video output, PoE+ support, advanced playback features, and remote monitoring. With H.265+ compression and a large storage capacity, it ensures efficient, high-quality video recording and playback.
🛒 Shop Now at CTC Communications for the best deals on VIGI NVRs & Security Systems! 🚀
