Best For: Existing Hikvision Turbo HD analogue CCTV systems needing 8MP / 4K detail, strong low-light performance, long-range IR and reliable fixed-lens turret coverage over coaxial cabling.

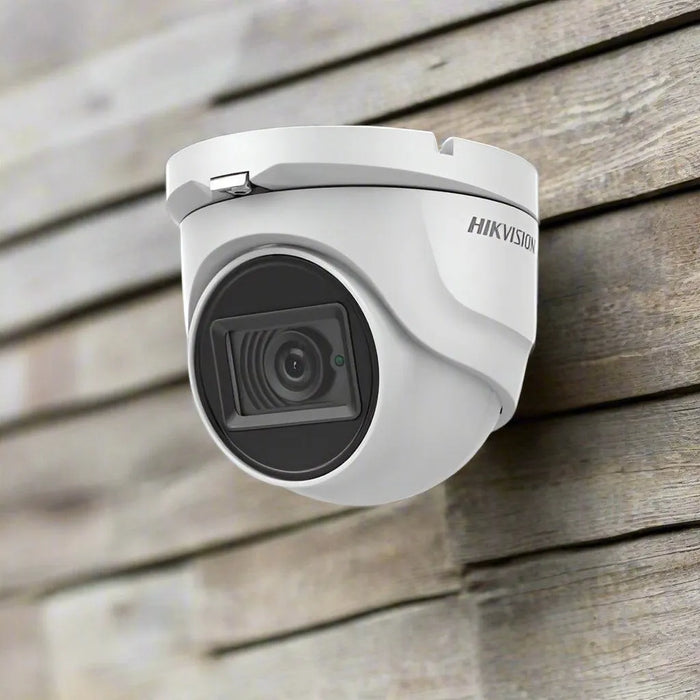

Hikvision DS-2CE78U7T-IT3F 8MP 4K Ultra Low Light Turret Camera
The Hikvision DS-2CE78U7T-IT3F is an 8MP / 4K Turbo HD fixed turret camera designed for high-detail analogue surveillance. It delivers 3840 × 2160 video, ultra-low-light sensitivity down to 0.003 Lux, 130dB true WDR, EXIR 2.0 night vision up to 60 metres and 4-in-1 signal compatibility for TVI, AHD, CVI and CVBS systems.
This model is a strong upgrade option for compatible coaxial CCTV installations where you want significantly more image detail without moving immediately to a full IP-camera system.
Key Features of the DS-2CE78U7T-IT3F
-
8MP / 4K resolution up to 3840 × 2160
-
Ultra-low-light performance down to 0.003 Lux
-
130dB true WDR for scenes with strong backlighting
-
EXIR 2.0 infrared illumination up to 60 metres
-
3D DNR to help reduce noise and improve image clarity
-
4-in-1 switchable output supporting TVI / AHD / CVI / CVBS
-
Fixed-lens options across the model range
-
Smart IR for improved night-time exposure
- IP67 weather protection
- 12V DC power
4K Detail over Existing Coaxial Cabling
The DS-2CE78U7T-IT3F is designed for Turbo HD analogue systems, making it useful where existing coaxial cabling is already in place. When paired with a compatible recorder, it can deliver 8MP / 4K surveillance without requiring a complete move to IP cabling.
This makes it especially practical for CCTV upgrades where cabling replacement would add unnecessary cost or disruption.
Ultra-Low-Light Imaging & 130dB WDR
With minimum illumination down to 0.003 Lux, the camera is designed to retain useful detail in low-light environments. Its 130dB true WDR also helps balance bright and dark areas in the same scene, such as doorways, shopfronts, loading areas and car park entries.
EXIR 2.0 Night Vision up to 60m
EXIR 2.0 infrared technology provides night-time illumination up to 60 metres, making this camera well suited to driveways, warehouse exteriors, building perimeters and other areas requiring longer-range night coverage.
Ideal Applications
- existing Hikvision Turbo HD CCTV upgrades
- home driveways and external walls
- retail and commercial entrances
- warehouses and loading areas
- car parks and building perimeters
- sites where existing coaxial cabling is being retained
Technical Specifications
| Brand |
Hikvision |
| Model |
DS-2CE78U7T-IT3F |
| Camera Type |
Turbo HD analogue fixed turret camera |
| Image Sensor |
8.29MP CMOS |
| Maximum Resolution |
3840 × 2160 (8MP / 4K) |
| Minimum Illumination |
0.003 Lux @ F1.6, AGC ON; 0 Lux with IR |
| Lens Options |
2.8mm / 3.6mm / 6mm / 8mm / 12mm fixed |
| Horizontal Field of View |
102° (2.8mm), 79° (3.6mm), 51° (6mm), 38° (8mm), 24° (12mm) |
| Wide Dynamic Range |
≥130dB true WDR |
| Noise Reduction |
3D DNR |
| IR Distance |
Up to 60m |
| Video Output |
Switchable TVI / AHD / CVI / CVBS |
| Frame Rate |
TVI: 8MP at 12.5/15fps; 5MP at 20fps; 4MP at 25/30fps; 1080p at 25/30fps |
| Power |
12V DC ±25% |
| Power Consumption |
Maximum 4.2W |
| Operating Temperature |
-40°C to 60°C |
| Protection |
IP67 |
| Dimensions |
Ø109.82 × 91.03mm |
| Weight |
Approx. 325g |
Build a Complete Hikvision Turbo HD CCTV System
Pair the DS-2CE78U7T-IT3F with a compatible Hikvision DVR and suitable surveillance storage for recording and playback.
You can also compare other Hikvision turret cameras if you are deciding between analogue and IP surveillance options.
