Best For: Wide building frontages, driveways, courtyards and open commercial areas where a single 180° view helps you follow activity across the scene.

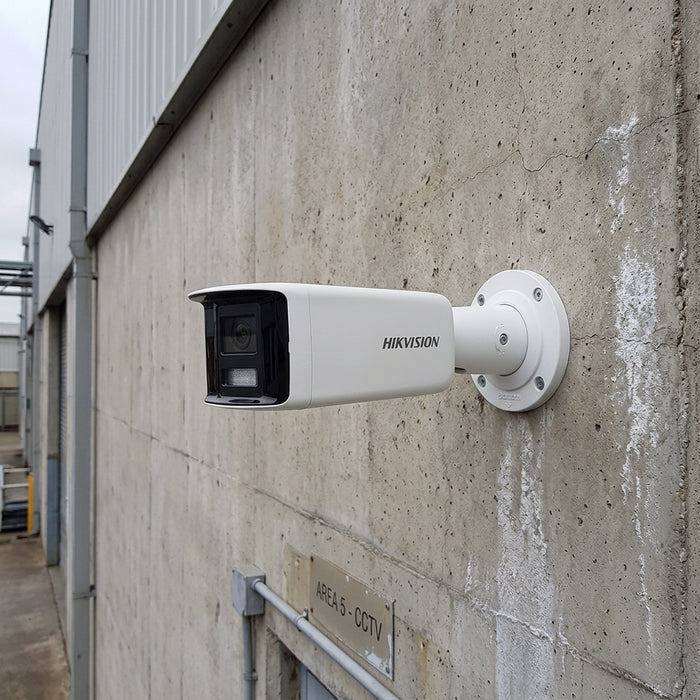

Hikvision DS-2CD2T67G2P-LSU/SL 6MP ColorVu Panoramic Bullet Camera
The Hikvision DS-2CD2T67G2P-LSU/SL combines two fixed lenses into one wide panoramic image. Its 6MP view makes it a practical choice for monitoring activity across a broad frontage, while ColorVu technology helps retain useful colour detail in low light.
Human and vehicle classification, a built-in microphone and speaker, and flashing light and audio alarms add event detection and active deterrence. The IP67-rated metal housing suits outdoor installations when the camera and cable connections are correctly fitted.
Key Features
-
180° panoramic coverage: Dual 2.8mm lenses combine into one 3632 × 1632 image.
-
ColorVu colour imaging: F1.0 lenses and sensitive sensors make use of available light.
-
Up to 40m white light: Visible supplementary illumination supports colour recording when the scene is too dark.
-
Human and vehicle classification: Helps focus supported perimeter events on relevant activity.
-
Active deterrence: Flashing light and audible warnings can be linked to configured events.
-
Built-in audio: Microphone and speaker support audio monitoring and communication through a compatible system.
-
130dB WDR: Helps balance bright and shaded areas in the same scene.
-
H.265+ compression: Helps manage recording bandwidth and storage use.
-
Flexible recording and power: Compatible NVR recording, up to 256GB microSD storage, and PoE or 12V DC power.
One Panoramic View Across a Wide Area
Two lenses and sensors produce a joined image with a 180° horizontal and 81° vertical field of view. This helps you follow movement across entrances, fences and open areas without switching between separate camera views.
A panoramic view spreads the available resolution across a wide scene. It is useful for overall coverage, but distant faces and small details may need a separate camera positioned closer to the target. Mounting height, angle and objects near the join between the two views should be considered during installation.
ColorVu Night Imaging with White Light
The F1.0 aperture and low-light sensors help preserve colour information such as clothing and vehicle colours. When ambient light is insufficient, the camera can use its visible white light, rated up to 40 metres. Actual results depend on positioning, exposure settings, subject movement and the scene.
This model uses white supplementary light rather than infrared or Smart Hybrid Light. The lighting distance is an illumination specification, not a guaranteed identification distance.
Human and Vehicle Detection with Active Deterrence
Supported line crossing, intrusion, region entrance and region exiting events can classify people and vehicles. Carefully placed detection boundaries help reduce irrelevant alerts, although they do not remove every unwanted notification.
The flashing light and speaker can deliver warnings when configured event rules are triggered. Schedules and warning settings should suit the site, particularly near neighbouring homes or public areas.
Built-In Audio and Remote Access
The integrated microphone records sound when audio recording is enabled, while the speaker supports audible warnings and communication through compatible software. Hik-Connect can provide remote viewing, playback and event notifications with a supported, correctly configured camera or NVR setup and internet connection. Available controls depend on the connected recorder, firmware and app configuration.
Suitable Applications
- Residential frontages and broad driveways.
- Retail forecourts and commercial building entrances.
- Courtyards, open loading areas and warehouse frontages.
- Car parks and outdoor areas that benefit from an overall panoramic view.
Technical Specifications
| Model |
DS-2CD2T67G2P-LSU/SL |
| Resolution |
6MP panoramic image, 3632 × 1632 |
| Image sensors |
2 × 1/2.5-inch progressive scan CMOS |
| Lens |
Dual fixed 2.8mm lenses, F1.0 aperture |
| Field of view |
180° horizontal; 81° vertical |
| Maximum frame rate |
20 fps at 3632 × 1632 |
| Low-light sensitivity |
Colour: 0.0005 lux at F1.0, AGC on; 0 lux with white light |
| Supplementary lighting |
White light, up to 40m |
| Wide dynamic range |
130dB WDR |
| Video compression |
H.265+, H.265, H.264+, H.264; MJPEG on sub-stream |
| Smart events |
Line crossing, intrusion, region entrance and region exiting with human/vehicle classification |
| Active deterrence |
Flashing light and audible warning |
| Audio |
Built-in microphone and speaker; audio input and output |
| Local storage |
microSD/microSDHC/microSDXC, up to 256GB |
| Network |
RJ45 10/100Mbps Ethernet |
| Power |
12V DC or IEEE 802.3af PoE, Class 3 |
| Maximum power consumption |
10.5W DC; 12.5W PoE |
| Housing and protection |
Metal housing; IP67 dust and water resistance |
| Operating temperature |
−30°C to +60°C |
| Dimensions |
118.6 × 105.1 × 306.5mm |
| Weight |
Approximately 1.4kg |
Memory card, recorder and recording storage are selected separately. Confirm the supplied hardware revision and recorder compatibility when planning the system. See the official Hikvision product specifications for full details.
Build a Compatible Hikvision CCTV System
Pair this camera with a suitable Hikvision network video recorder. Confirm support for its panoramic stream, resolution, bandwidth and required event and audio functions. PoE provides power and network connectivity over one Ethernet cable when connected to a compatible PoE port or switch.
For additional views of entrances or areas requiring closer detail, explore our Hikvision bullet cameras. CTC Communications can help select camera positions, recorder capacity and storage for your preferred recording period.
