Best For: Driveways, commercial yards, warehouse exteriors and perimeter areas needing detailed 4K video, human and vehicle alerts and extended IR illumination.

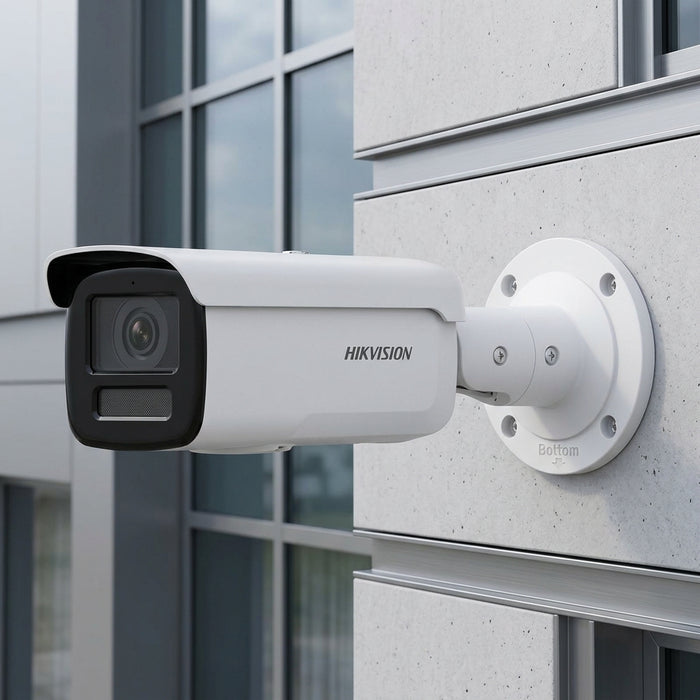

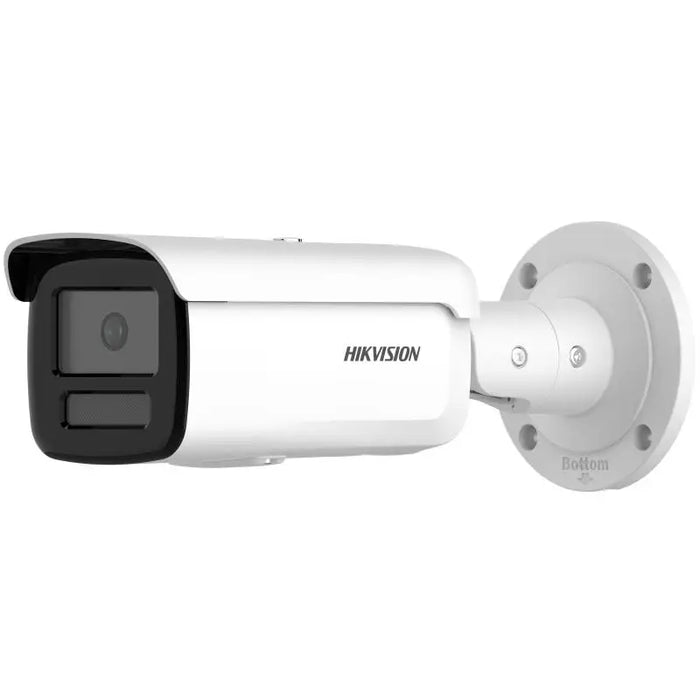

8MP 4K AcuSense DarkFighter Bullet Camera
The Hikvision DS-2CD2T86G2H-4I combines 8MP imaging, Powered by DarkFighter technology and AcuSense detection in a metal outdoor bullet camera. It has a 2.8mm fixed lens, with a 105.1° horizontal view for covering access routes and defined outdoor areas. Infrared illumination reaches up to 80m, while 120 dB WDR helps balance bright and shaded parts of the scene.
Key Features
- 8MP 4K resolution at 3840 × 2160
- Powered by DarkFighter low-light imaging
- 2.8mm F1.0 fixed lens
- AcuSense human and vehicle classification
- IR night illumination up to 80m
- 120 dB wide dynamic range
- H.265+ video compression
- Memory card storage up to 512GB
- IP67 metal outdoor housing
- IEEE 802.3af Class 3 PoE or 12V DC power
Powered by DarkFighter Low-Light Imaging
A 1/1.8-inch sensor and F1.0 optics help capture colour detail using available light. When lighting falls below a useful level, the camera can switch to black-and-white imaging with infrared illumination. Colour performance depends on the scene and available lighting.
80m Infrared Night Vision
The -4I version provides IR illumination up to 80m. Smart supplemental illumination helps manage exposure as subjects move closer. The illumination distance is not a guaranteed identification distance: useful detail depends on lens framing, target size, lighting, mounting height and image settings.
AcuSense Human and Vehicle Detection
AcuSense uses deep learning to classify human and vehicle targets for supported motion and perimeter events. Configure line crossing, intrusion, region entrance and region exiting rules to suit the property. Target filtering helps reduce unwanted alerts from unrelated movement; results depend on camera positioning, scene conditions and settings.
2.8mm Lens and Coverage
The 2.8mm F1.0 fixed lens provides a 105.1° horizontal, 54.8° vertical and 128.2° diagonal field of view. Its wide coverage suits entrances, driveways and general outdoor surveillance.
120 dB WDR and Efficient Recording
Wide dynamic range helps retain detail where bright daylight and shaded areas share the frame. H.265+ compression can reduce bandwidth and storage requirements on compatible equipment. Recording duration depends on bitrate, image settings, recording schedules and drive capacity.
Recording and Remote Viewing
Connect to a compatible Hikvision network video recorder for central recording and playback. A memory card up to 512GB provides an on-board recording option. Hik-Connect supports remote viewing and supported event notifications once the network, internet connection and system are configured. Storage media are sold separately.
Outdoor Housing and Power
The IP67 metal housing resists dust and water ingress. Protect cable connections and select suitable mounting accessories for the site. Hikvision specifies no special anti-corrosion protection for this model, so assess exposed coastal or corrosive locations separately. Use IEEE 802.3af Class 3 PoE, maximum 12W, or a suitable 12V DC supply, maximum 10W.
Technical Specifications
| Model |
DS-2CD2T86G2H-4I |
| Resolution |
8MP, 3840 × 2160 |
| Image sensor |
1/1.8-inch progressive scan CMOS |
| Lens |
2.8mm fixed lens, F1.0; lens mount M16 |
| Field of view |
105.1° horizontal / 54.8° vertical / 128.2° diagonal |
| Minimum illumination |
Colour: 0.0008 lux at F1.0, AGC on; black-and-white: 0 lux with IR |
| Night vision |
IR up to 80m; 850nm; smart supplemental illumination |
| WDR |
120 dB |
| Frame rate |
50Hz: up to 25fps at 3840 × 2160; 60Hz: up to 24fps at 3840 × 2160 |
| Compression |
Main stream: H.265+, H.265, H.264+, H.264 |
| Detection |
Human and vehicle classification; motion detection, line crossing, intrusion, region entrance and region exiting; face capture |
| Audio and active warnings |
No built-in microphone, speaker, warning strobe or audible alarm |
| On-board storage |
microSD/microSDHC/microSDXC up to 512GB; card sold separately |
| Network |
RJ45 10/100Mbps; ONVIF Profiles S, G and T |
| Client software |
Hik-Connect, iVMS-4200 and Hik-Central |
| Power |
12V DC ±25%, maximum 10W; IEEE 802.3af Class 3 PoE, maximum 12W |
| Protection |
IP67; no specific anti-corrosion protection |
| Housing |
Metal front cover, body and bracket |
| Dimensions |
286.7 × 93.3 × 91.2mm |
| Weight |
Approximately 1180g |
| Operating conditions |
−30°C to 60°C; humidity up to 95%, non-condensing |
View the Hikvision DS-2CD2T86G2H-2I/4I datasheet.
Choosing Your CCTV System
Browse our Hikvision bullet cameras for other lens, illumination and audio options. CTC Communications can help match camera coverage, recorder capacity, storage and mounting accessories to your property.
What Is Included?
1 × Hikvision DS-2CD2T86G2H-4I bullet camera, with 2.8mm lens. A recorder, surveillance hard drive, memory card, cabling, power supply, additional mounting accessories and installation are sold separately unless specified in a package.
