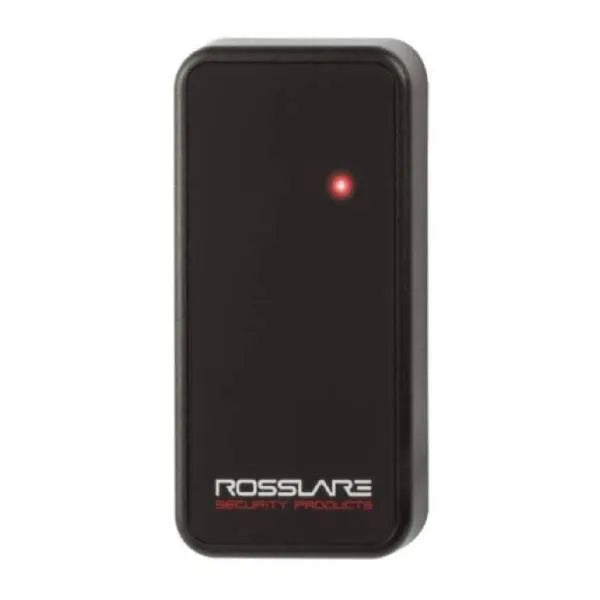

Rosslare AY-K6255 Smart Card reader CSN SELECT™

The Rosslare Smart card reader AY-x6255 is a series of multi-credential technology contactless smart card (13.56 MHz) readers that support access by an NFC compatible.

Android smartphone app* for use in access control system solutions. The readers
have the flexibility to read the Card Serial Number (CSN) from many smart cards
RFID standards, are perfect for transitioning from one technology to another. UV
resistant and with an IP65-rated sleek and modern design, the readers can be
used comfortably in any installation environment whether indoors or outdoors.

Model: AY-K6255

Reader Features: Read the CSN from the following smart cards:

• ISO14443A - MIFARE® Ultralight® Nano /
  Ultralight EV1/ Ultralight C
  - MIFARE Classic® / Classic EV1
  - MIFARE Plus® S / SE / X / EV1
  - MIFARE DESFire® EV1 / EV2
  - NFC N–TAG / Card Emulation
• ISO14443B - China National ID
• ISO15693 - HID® iClass®, PicoPass™, iCode, LEGIC
• ISO18092 - SONY® FeliCa® (Hong Kong Octopus)
• NFC Android smartphone is supported with the
• Android App for Host Card Emulation (HCE)
• Multiple mounting options including micromullion, mullion, US gangbox and UK/Asia gang box
• Selectable Wiegand output formats using the CS-HCT Hardware Configuration Tool for the DR-6255 application

Professional-grade features:

• Sleek and modern design.
• Addressable OSDP connectivity is available with the AY-H6255 and AY-M6255, up to 32 addresses using DIP switches
• Customizable control and status lines available with the CSN SELECT™ Configuration Card Tool for DR-6255
• Tri-colored LED operation
• Optical wall tamper detection
• IP65 rated and made of tough polycarbonate UV resistant plastic
• Comes with mounting template and installation kit for easy installation
• AY-Q6255 has an Anti-Vandal enclosure

🔒 Shop at CTC Communications for the best deals on genuine Rosslare security products – your trusted partner in professional access control solutions.

You can find firmware updates and product documentation at rosslaresecurity.com.
